HCD-DZ370/DZ560/DZ570/DZ660/DZ777
14

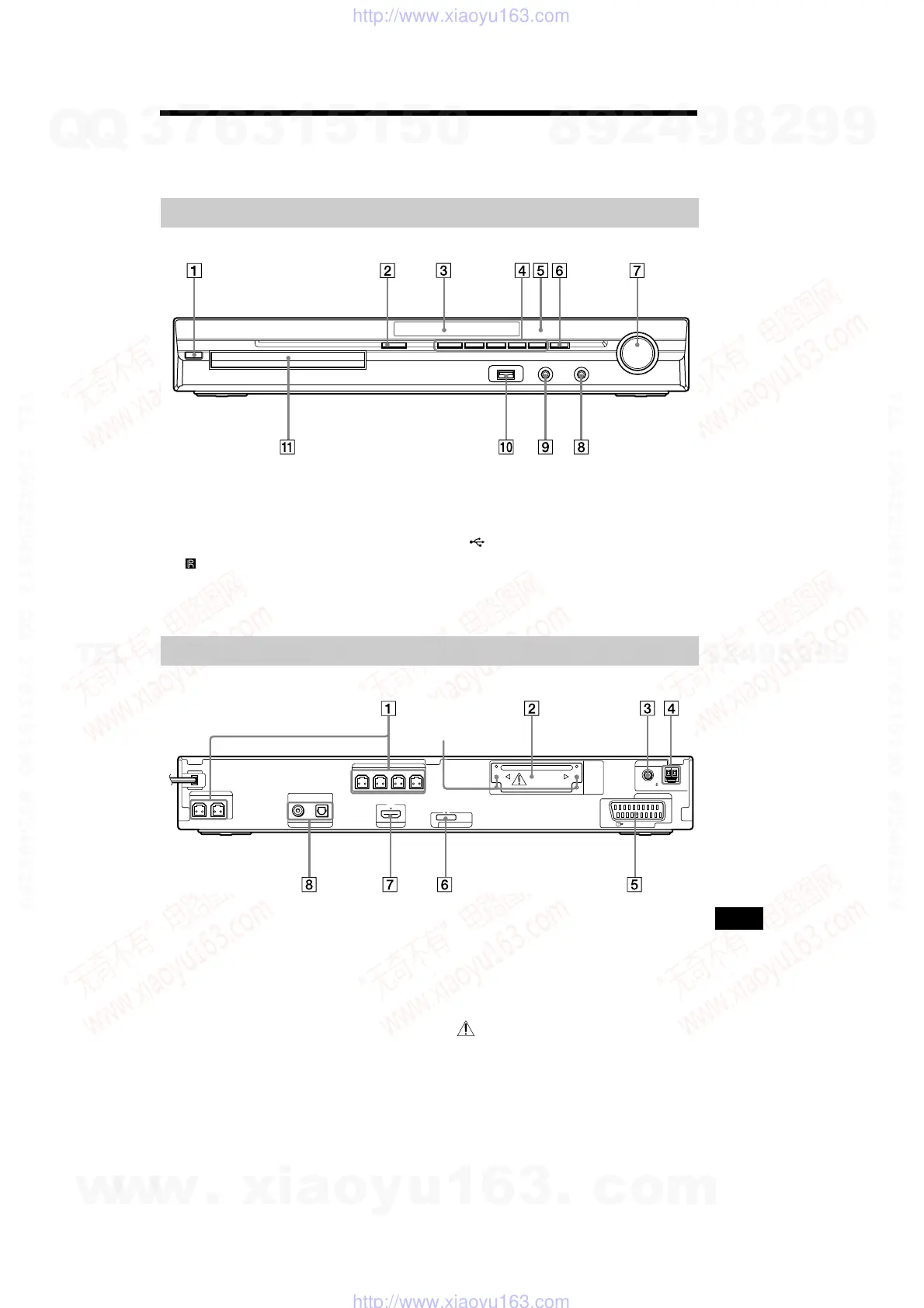

Index to Parts and Control
(DZ560)
For more information, refer to the pages indicated in parentheses.
" / (on/standby) (25, 88)
# " (open/close) (33)
$ Front panel display (108)
% Play operation buttons (33)
& (remote sensor) (9)
' FUNCTION (28)
( VOLUME control (33)
) PHONES jack (33)
* AUDIO IN/A.CAL MIC jack (21, 25, 82)
+ (USB)port(65)
, Disc tray (33)
Front panel
Additional Information
" SPEAKER jacks (19)
# EZW-T100 slot (21)
$ COAXIAL 75Ω FM jack (23)
% AM terminal (23)
& EURO AV 5 OUTPUT (TO TV) jack (20)
' DMPORT (DIGITAL MEDIA PORT) jack
(21, 74)
( HDMI OUT jack (20)
) TV (DIGITAL IN COAXIAL/OPTICAL)
jacks (20)
* CAUTION
Please do not remove the screws before
installing the EZW-T100.
Rear panel
CENTER SUBWOOFER
DIGITAL IN
COAXIAL OPTICAL
FRONT R FRONT L SUR R SUR L
SPEAKER
TUOIMDHVT
SPEAKER
EURO AV
OUTPUT(TO TV)
COAXIAL 75
AM
FM
ANTENNA
DMPORT
DC5V
0.7A MAX
EZW-T100
