Sony HCD-DZ777 - Case and Power Board Disassembly

HCD-DZ370/DZ560/DZ570/DZ660/DZ777
24
Note: Follow the disassembly procedure in the numerical order shown below.

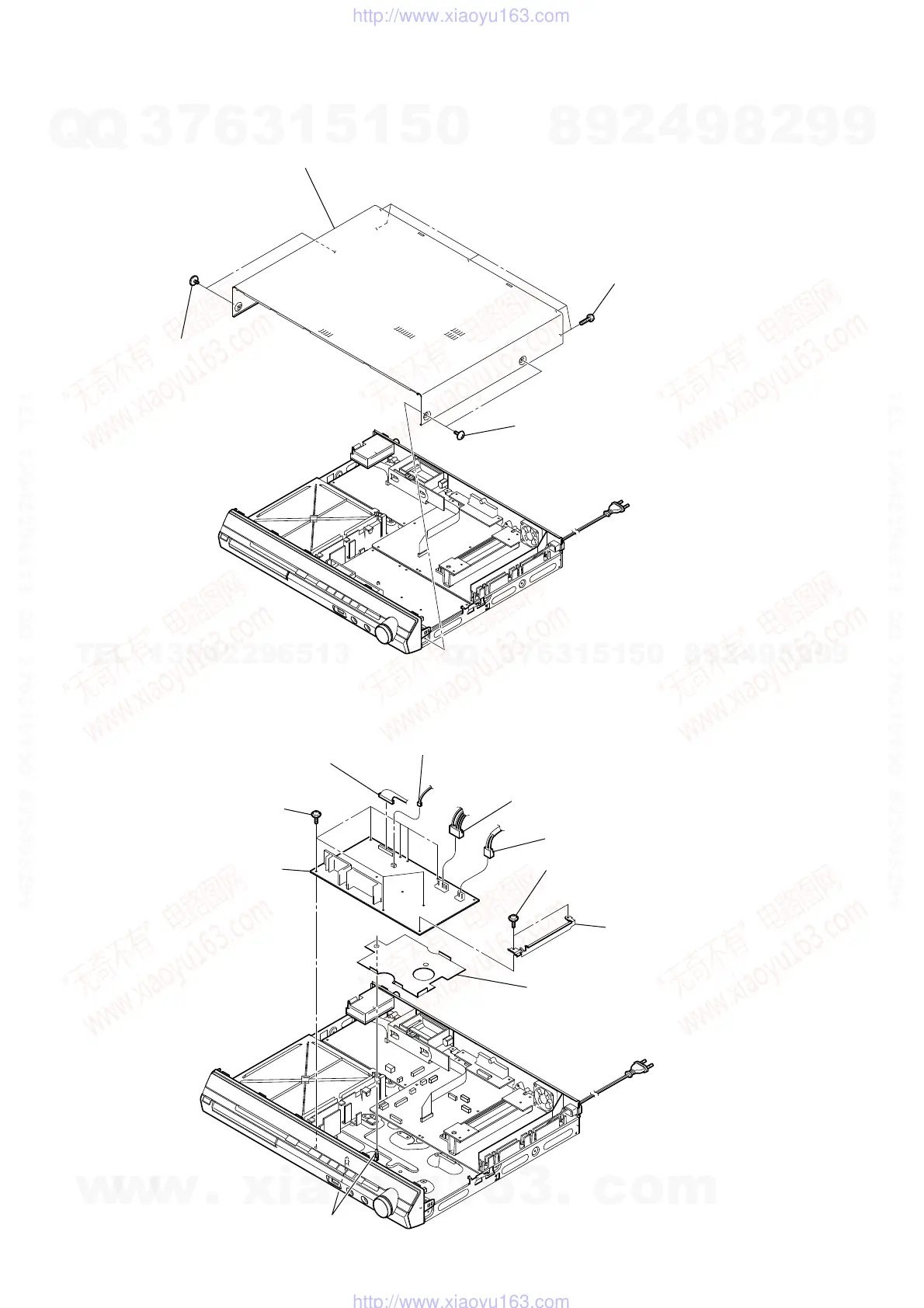

3-1. CASE
3-2. POWER BOARD
 five screws
(BV/RING)
 case
 two screws
(case 3 TP2)
 two screws
(case 3 TP2)
 CN904 (4P)
 CN901 (2P)
 CN908 (2P)
 CN906 (13P)
 two screws
(+PWH 3 × 8)
 shield plate (HP)
 seven screws
(+PWH 3 × 8)
 two claws
 POWER board
 cover (USB)
