81
HCD-DZ370/DZ560/DZ570/DZ660/DZ777

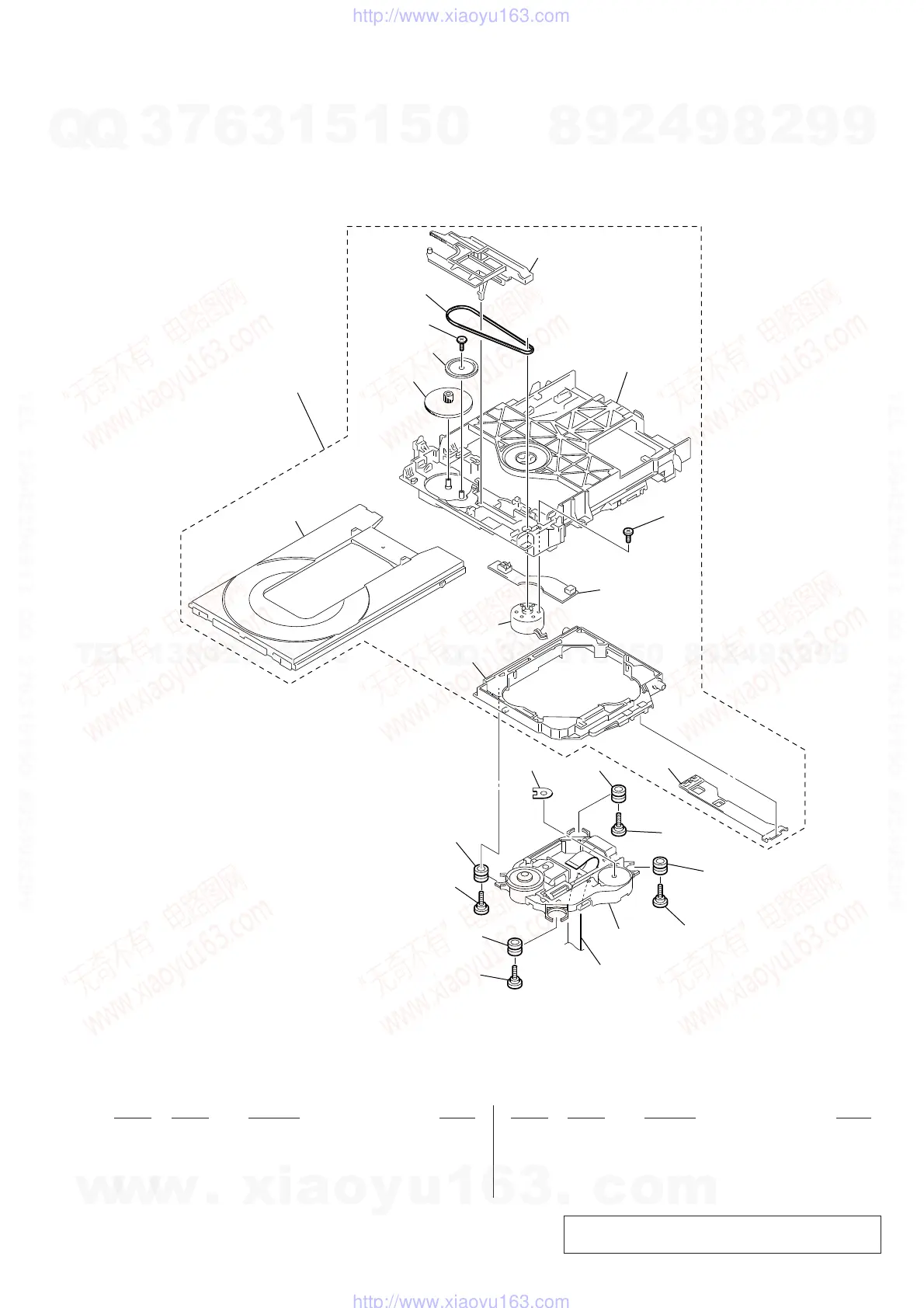

7-4. DVD MECHANISM DECK SECTION
(CDM85-DVBU102)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 A-6071-669-A LOADING ASSY (M)
152 3-088-371-01 BELT
153 4-974-725-11 SCREW (M1.7X2.5), P
154 4-674-137-11 SCREW (PTP 2X5)
155 2-634-618-01 INSULATOR
156 3-087-599-01 INSULATOR SCREW
0 157 8-820-321-05 OPTICAL PICK-UP KHM-313CAA/C2RP
158 1-828-773-51 WIRE (FLAT TYPE) (24 CORE)
159 3-113-851-01 SHEET (E12)
Note: If the wire ( at type) was replaced, fold it some as
the wire ( at type) before replacement.
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(MS-203 board)
not
supplied
151
154
152
153
155
155
155
155
157
158
159
156
156
156
156
Ver. 1.1
