HCD-DZ370/DZ560/DZ570/DZ660/DZ777
36
SECTION 6
DIAGRAMS
For Schematic Diagrams.
Note:
All capacitors are in μF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
All resistors are in Ω and
1
/4 W or less unless otherwise
speci ed.
f
: internal component.
C : panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
A : B+ Line.
B : B– Line.
Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
Voltages and waveforms are dc with respect to ground in
service mode.
Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
no mark : TUNER (FM)
< > : DVD PLAY
*
: Impossible to measure
Voltages are taken with VOM (Input impedance 10 MΩ).
Circled numbers refer to waveforms.
• Signal path.
F : TUNER
J : DVD PLAY
L : VIDEO
E : Y
a : CHROMA
r : COMPONENT VIDEO
• Abbreviation
AUS : Australian model
E3 : 240 V AC Area in E model
E12 : 220-240 V AC area in E model
E15 : Iran model
E32 : 110 – 240V AC area in E model
KR : Korean model
MX : Mexican model
TW : Taiwan model
For Printed Wiring Boards.
Note:
X : Parts extracted from the component side.
a
: Through hole.
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Note:
The components identi-
ed by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number speci ed.
Note:
Les composants identi és
par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par
une piéce portant le nu-
méro spéci é.
Indication of transistor.
C
B
These are omitted.
E
Q
CEB
These are omitted.
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
Parts on the pattern face side seen from
the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• Abbreviation
AUS : Australian model
E3 : 240 V AC Area in E model
E12 : 220-240 V AC area in E model
E15 : Iran model
E32 : 110 – 240V AC area in E model
KR : Korean model
MX : Mexican model
TW : Taiwan model

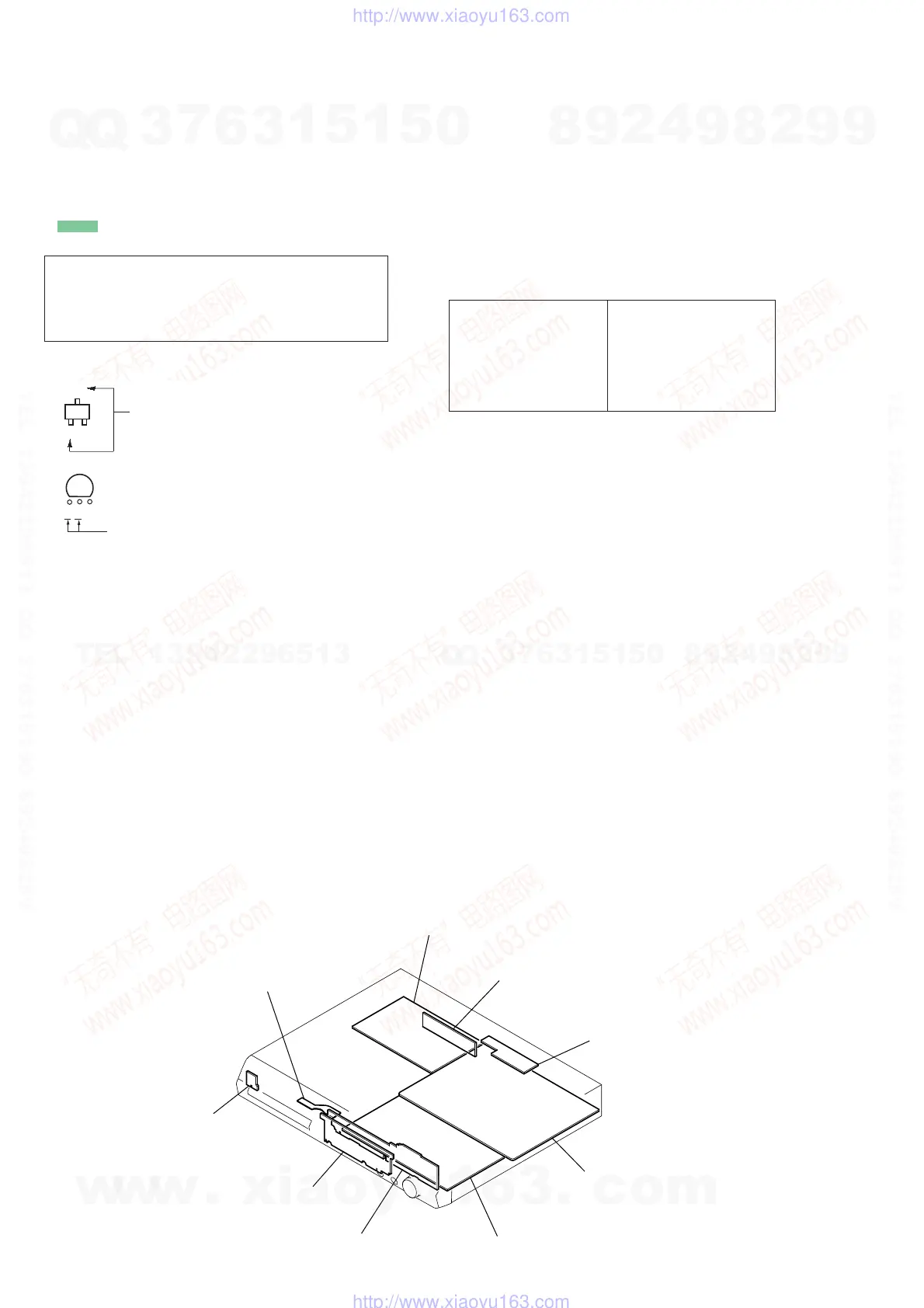

Circuit Boards Location
SPEAKER board
S-AIR-CON board
MAIN board
POWER board
MS-203 board
P-SW board
FL board
JACK board
IO-SCART board (DZ560/DZ660)
IO-COMPONENT board (DZ370/DZ570/DZ777)
Ver. 1.1
