80
HCD-DZ370/DZ560/DZ570/DZ660/DZ777
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-1382-402-A POWER BOARD, COMPLETE (AEP,UK)
101 A-1392-694-A POWER BOARD, COMPLETE
(E3,E12,E15,AUS,KR)
101 A-1392-696-A POWER BOARD, COMPLETE (TW)
101 A-1452-054-A POWER BOARD, COMPLETE (MX)
101 A-1452-056-A POWER BOARD, COMPLETE (E32,PX)
102 2-677-839-01 +PWH 3X8 (SUMITITE)
103 4-232-478-31 FOOT
104 4-231-099-91 SHEET, RADIATION
105 3-077-331-21 +BV 3 (3-CR)
106 1-828-293-11 WIRE (FLAT TYPE) (5 CORE)
107 1-828-349-11 WIRE (FLAT TYPE) (17 CORE)
(DZ370/DZ570/DZ777)
107 1-828-359-11 WIRE (FLAT TYPE) (19 CORE) (DZ560/DZ660)
108 1-828-347-11 WIRE (FLAT TYPE) (17 CORE)
(DZ370/DZ570/DZ777)
108 1-828-357-11 WIRE (FLAT TYPE) (19 CORE) (DZ560/DZ660)
109 A-1438-877-A IO-SCART BOARD, COMPLETE (DZ560)
109 A-1438-892-A IO-COMPONENT BOARD, COMPLETE
(DZ370/DZ570:EXCEPT KR)
109 A-1438-909-A IO-COMPONENT BOARD, COMPLETE (DZ570:KR)
109 A-1438-933-A IO-SCART BOARD, COMPLETE (DZ660)
109 A-1438-953-A IO-COMPONENT BOARD, COMPLETE
(DZ777:EXCEPT KR)
109 A-1438-963-A IO-COMPONENT BOARD, COMPLETE (DZ777:KR)
110 3-077-331-11 +BV 3 (3-CR)
111 3-100-158-01 SHEET, RADIATION (DZ370/DZ777)
111 3-100-158-21 SHEET, RADIATION (DZ560/DZ570/DZ660)
112 3-100-158-11 SHEET, RADIATION
113 4-231-099-41 SHEET, RADIATION
114 1-828-287-11 WIRE (FLAT TYPE) (5 CORE)
9 115 A-1438-879-A MAIN BOARD, COMPLETE (for SERVICE) (DZ560)
9 115 A-1438-894-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570:E3,E15)
9 115 A-1438-911-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570:E32)
9 115 A-1438-926-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570:MX)
9 115 A-1438-935-A MAIN BOARD, COMPLETE (for SERVICE) (DZ660)
9 115 A-1438-955-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ777:E3,E15)
9 115 A-1520-942-A MAIN BOARD, COMPLETE (for SERVICE) (DZ370)
9 115 A-1520-960-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570:E12)
9 115 A-1520-967-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570:AUS)
9 115 A-1520-974-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570:TW)
9 115 A-1520-982-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570:KR)
9 115 A-1520-993-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ777:AUS)
9 115 A-1521-002-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ777:KR)
9 115 A-1546-349-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570:PX)
116 3-273-733-01 COVER (CDM-DSR)
0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA. 5) (8A/125V)
(MX,TW)
0 F901 1-576-233-51 FUSE (H.B.C.) (T6.3AL/250V)
(EXCEPT E32,MX,PX,TW)
0 F901 1-576-300-51 FUSE (H.B.C.) (T8AL/250V) (E32,PX)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#5 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3

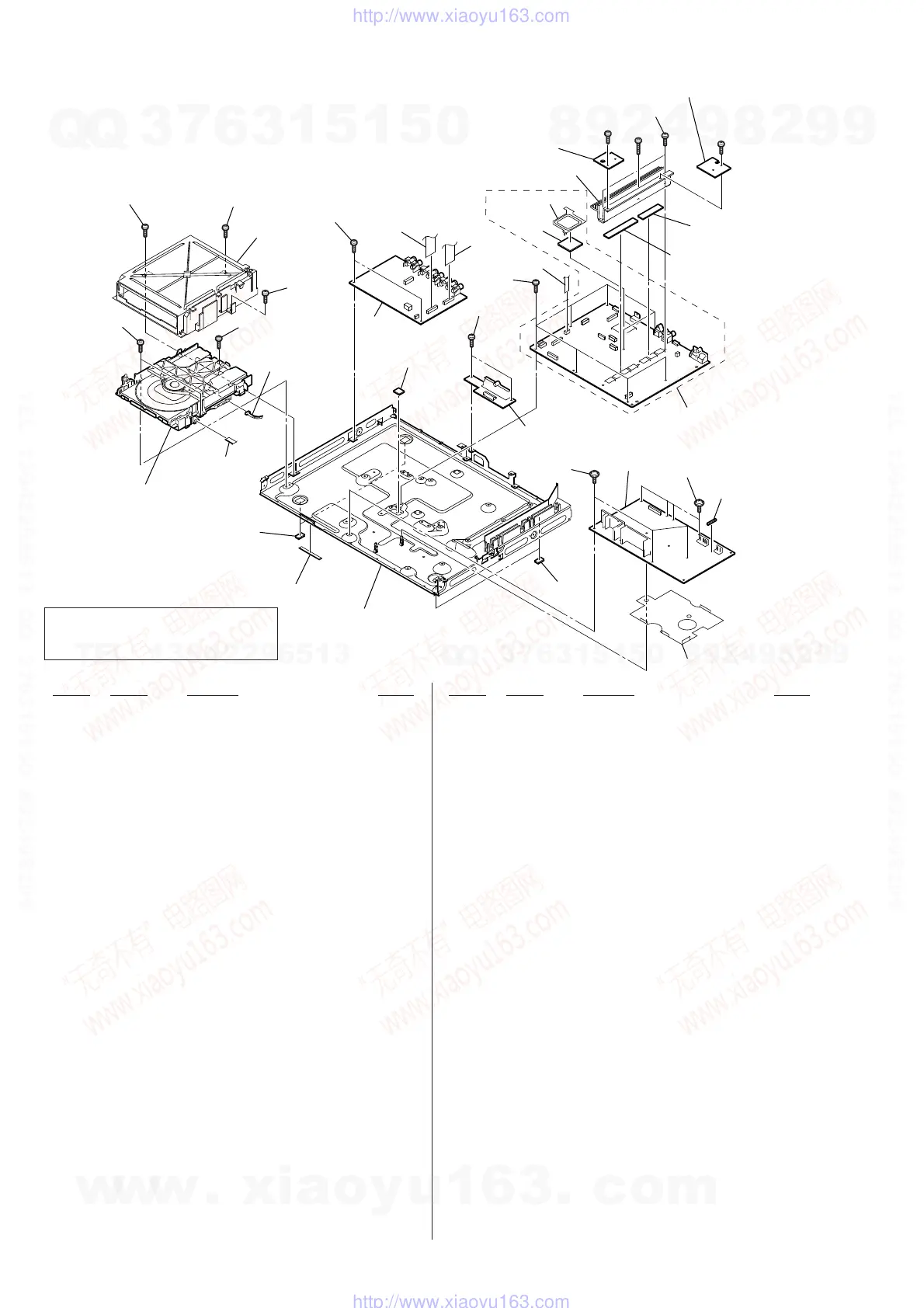

7-3. CHASSIS SECTION
Ver. 1.1
Note: If the wire (fl at type) was replaced,
fold it some as the wire (fl at type)
before replacement.
101
102
103
104
105
105
109
107
108
110
111
112
113
114
115
105
105
105
116
105
106
105
105
103
102
#5
#1
#1
not supplied
not supplied
F901
not supplied
not supplied
not supplied
(HEAT SINK A board)
not supplied
(SPEAKER board)
not supplied
(HEAT SINK B board)
not supplied
not supplied
