48
HCD-GTZ2/GTZ2i/GTZ3/GTZ3i
SECTION 6
EXPLODED VIEWS
1 3-363-099-32 SCREW (CASE 3 TP2)
2 3-283-218-01 CASE, (SIDE-L) (MX)
2 3-283-218-22 CASE, (SIDE-L) (EXCEPT MX)
3 4-124-215-01 CASE, TOP
4 3-283-219-01 CASE, (SIDE-R) (MX)
4 3-283-219-22 CASE, (SIDE-R) (EXCEPT MX)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentine model
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model

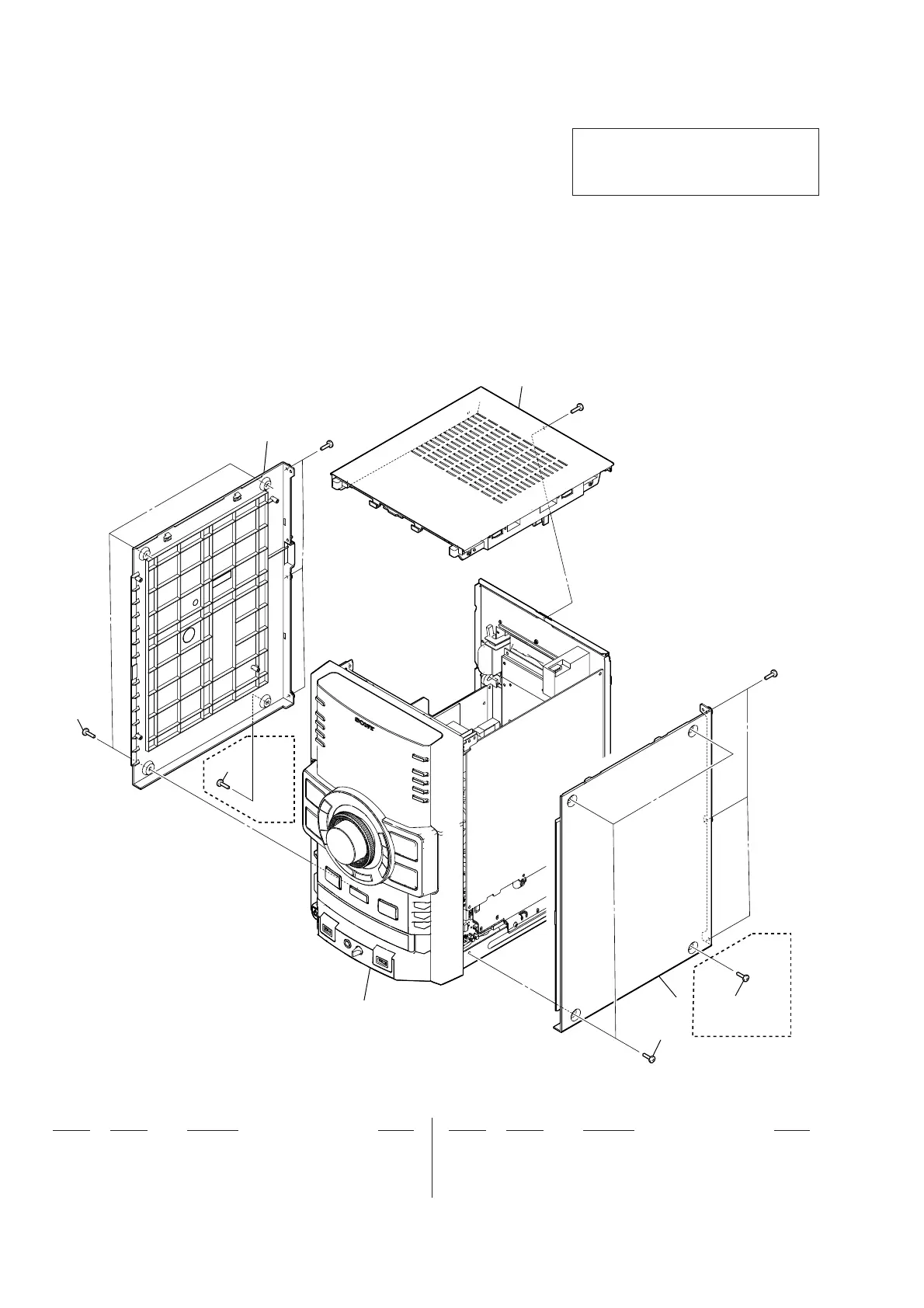

6-1. CASE SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
(MX)
(MX)
3
2
1
1
1
1
4
loading panel section
#1
#1
#1
Ver. 1.1
To Next Page
