53
HCD-GTZ2/GTZ2i/GTZ3/GTZ3i

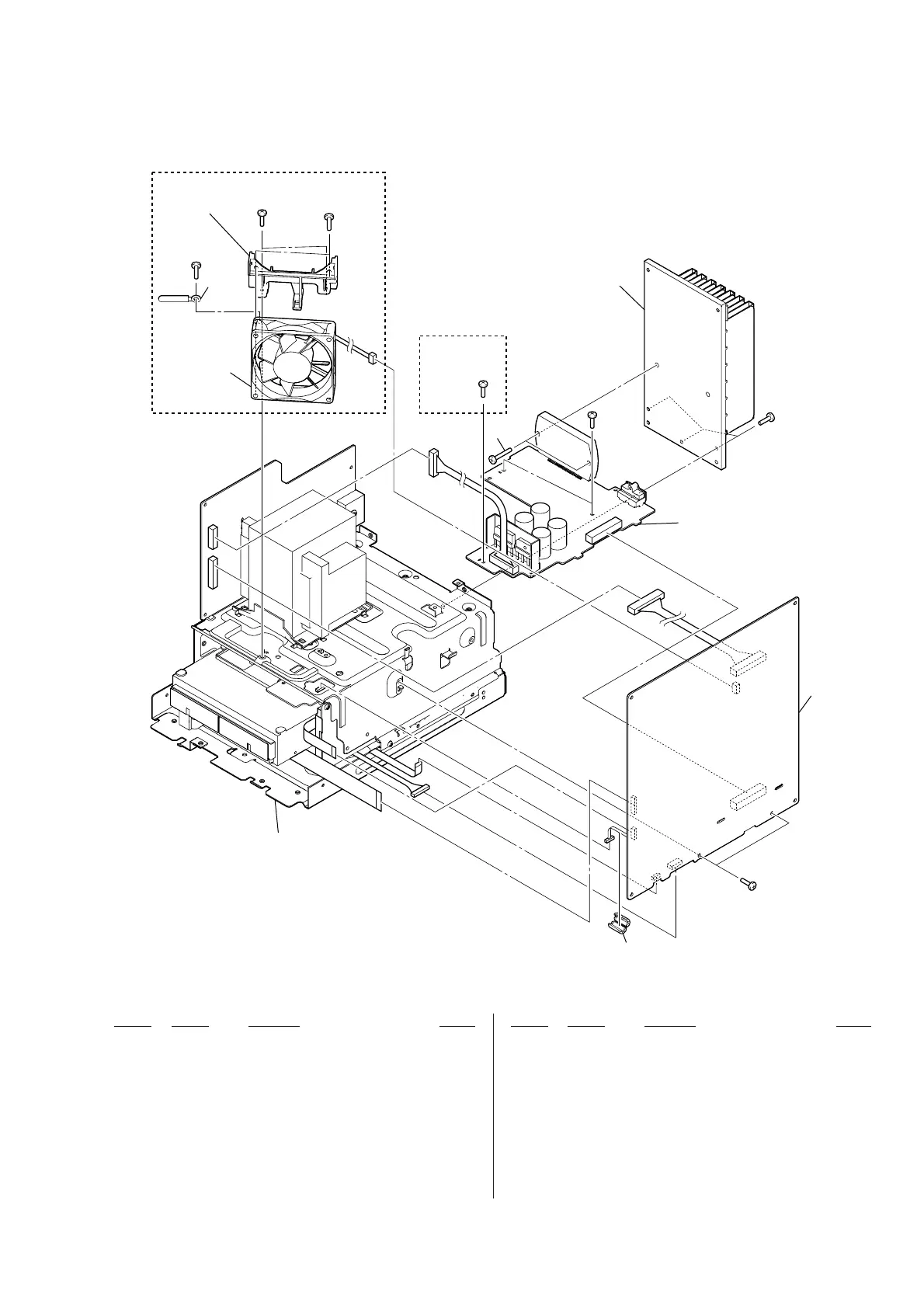

6-6. MAIN BOARD SECTION
251 3-905-609-31 SCREW (TRANSISTOR)
252 A-1660-548-A POWER AMP BOARD, COMPLETE (GTZ2: E51)
252 A-1660-551-A POWER AMP BOARD, COMPLETE (GTZ2i)
252 A-1660-555-A POWER AMP BOARD, COMPLETE (GTZ3)
252 A-1660-558-A POWER AMP BOARD, COMPLETE (GTZ3i)
252 A-1717-946-A POWER AMP BOARD, COMPLETE (GTZ2: MX)
253 A-1660-520-A MAIN BOARD, COMPLETE (GTZ2: E51)
253 A-1660-525-A MAIN BOARD, COMPLETE (GTZ3: E2, E51)
253 A-1660-571-A MAIN BOARD, COMPLETE (GTZ2i)
253 A-1660-575-A MAIN BOARD, COMPLETE (GTZ3i: AEP)
253 A-1717-198-A MAIN BOARD, COMPLETE (GTZ3i: UK)
253 A-1717-201-A MAIN BOARD, COMPLETE (GTZ3: E3)
253 A-1717-204-A MAIN BOARD, COMPLETE (GTZ3: AR)
253 A-1717-950-A MAIN BOARD, COMPLETE (GTZ2: MX)
253 A-1718-045-A MAIN BOARD, COMPLETE (GTZ3: MX)
254 1-543-793-11 FILTER, CLAMP (FERRITE CORE)
* 255 3-703-150-11 CLAMP (GTZ3/GTZ3i)
M102 1-763-372-11 FAN, DC (GTZ3/GTZ3i)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(GTZ3/GTZ3i)
(GTZ2/GTZ2i)
not supplied
#1
#1
#1
M102
chassis section
#1
not supplied
#2
#1
#1
253
254
255
251
252
Ver. 1.1
