54
HCD-GTZ2/GTZ2i/GTZ3/GTZ3i

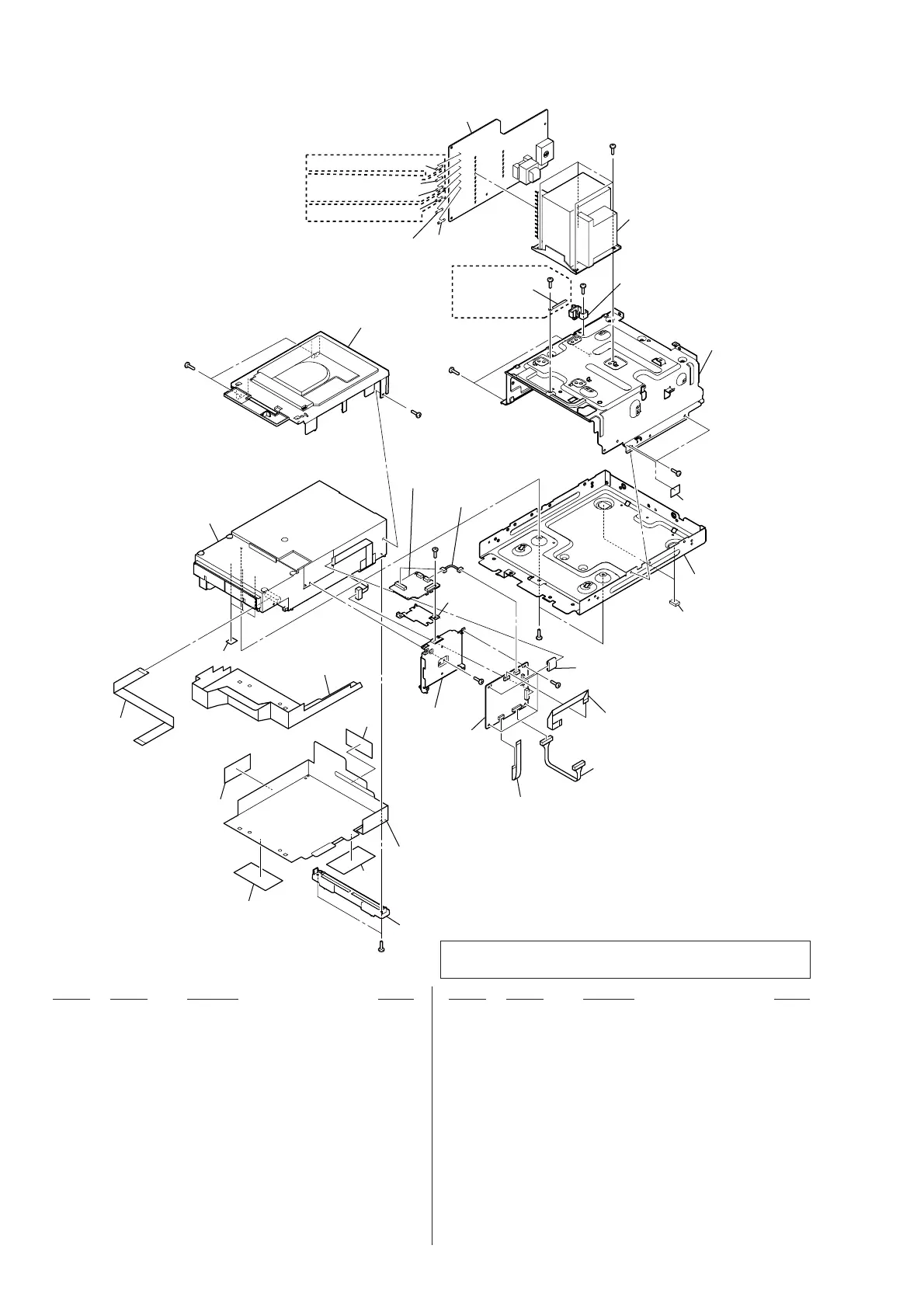

6-7. CHASSIS SECTION
301 1-469-829-11 CORE, FERRITE
302 4-225-252-01 CUSHION (FOOT)
303 A-1653-556-A DMB19 BOARD, COMPLETE
(GTZ2: E51/GTZ3: E2, E3, E51, AR)
303 A-1653-557-A DMB19 BOARD, COMPLETE (GTZ2i/GTZ3i)
303 A-1719-645-A DMB19 BOARD, COMPLETE
(GTZ2: MX/GTZ3: MX)
304 1-828-311-11 WIRE (FLAT TYPE) (9 CORE)
305 1-836-973-11 WIRE (FLAT TYPE) (7 CORE)
306 1-828-975-11 WIRE (FLAT TYPE) (13 CORE)
* 307 3-703-150-11 CLAMP (GTZ2/GTZ2i)
308 3-831-441-11 CUSHION, SARANET
0 F904 1-532-505-33 FUSE (T5AL/250V) (GTZ2/GTZ2i)
0 F905 1-532-505-33 FUSE (T5AL/250V) (GTZ2/GTZ2i)
0 F906 1-532-504-33 FUSE (T4AL/250V)
0 F907 1-532-503-33 FUSE (T1.6AL/250V)
0 F908 1-532-506-33 FUSE (T6.3AL/250V) (GTZ3/GTZ3i)
0 F909 1-532-506-33 FUSE (T6.3AL/250V) (GTZ3/GTZ3i)
0 PT901 1-445-601-11 POWER TRANSFORMER (GTZ3i)
0 PT901 1-445-603-11 POWER TRANSFORMER (GTZ2: E51)
0 PT901 1-445-605-11 POWER TRANSFORMER (GTZ3: MX)
0 PT901 1-445-606-11 POWER TRANSFORMER (GTZ3: E2, E3, E51, AR)
0 PT901 1-445-609-11 POWER TRANSFORMER (GTZ2i)
0 PT901 1-445-610-11 POWER TRANSFORMER (GTZ2: MX)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-871-01 SCREW +BVTT 3X6 (S) (GTZ2/GTZ2i)
#5 7-685-880-09 SCREW +BVTT 4X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
(GTZ2/GTZ2i)
(GTZ3/GTZ3i)
(GTZ2/GTZ2i)
(GTZ3/GTZ3i)
#1
not supplied
not supplied
not supplied
not supplied
not supplied
CD mechanism section
(CDM88B-DVBU101)
#1
#1
#1
not supplied
#4
#1
F906
F907
F909
F905
F904
F908
not supplied
(TRANS1S board (GTZ2: E51),
TRANSX board (GTZ2: MX/GTZ2i),
TRANS board (GTZ3/GTZ3i))
#5
PT901
not supplied
not supplied
not supplied
not supplied
#1
#1
#1
not supplied
#1
not supplied
(HUB board)
#1
not supplied
not
supplied
306
308
308
308
308
305
303
304
301
302
307
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
Ver. 1.1
