HCD-GTZ2/GTZ2i/GTZ3/GTZ3i

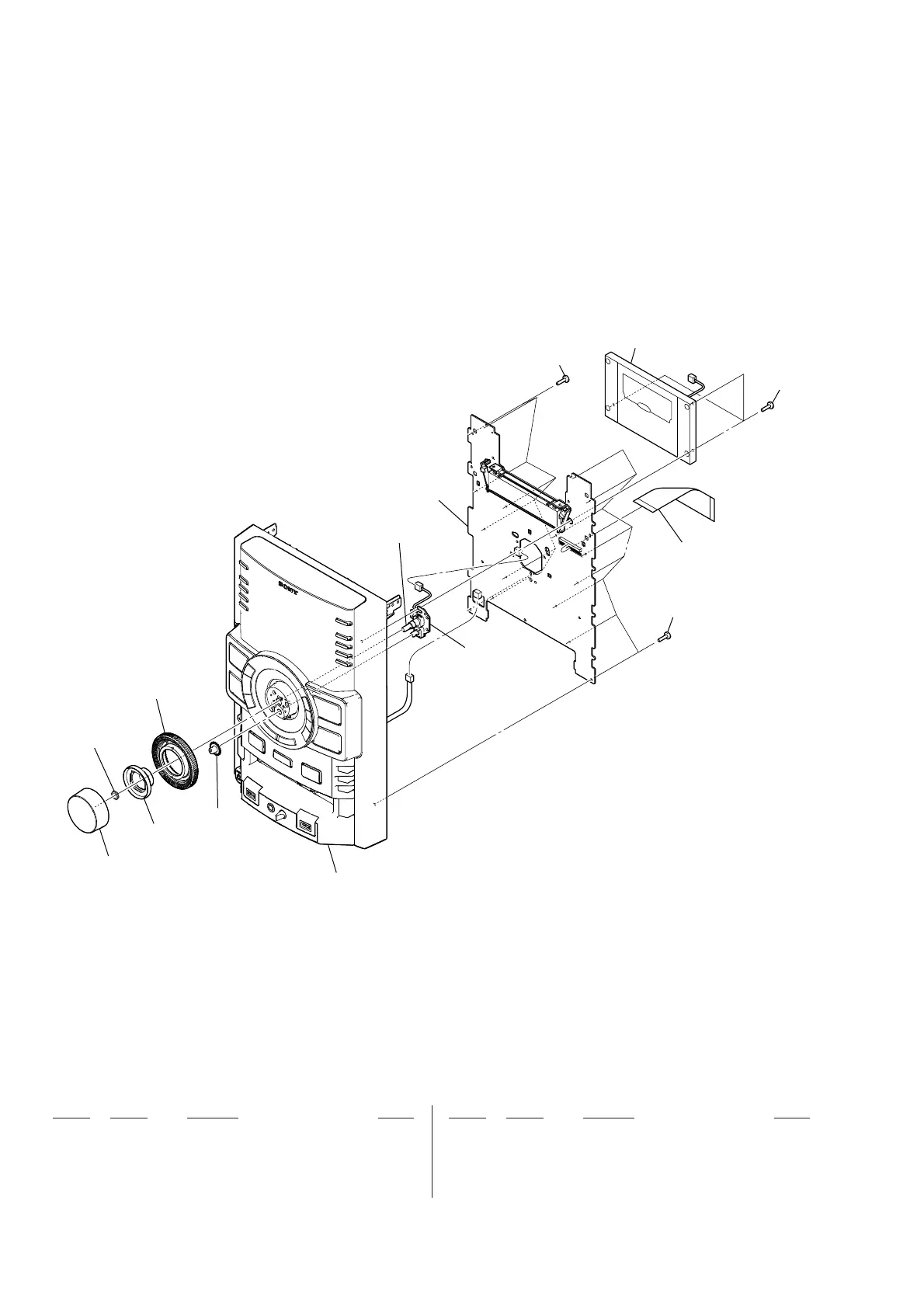

6-3. DISPLAY BOARD SECTION
not supplied
(VOLUME board)
S1301
front panel section
not supplied
supplied with
S1301
101
102
103
105
107
105
106
105
104
101 4-124-203-01 KNOB (VOLUME)
102 4-124-204-01 HOLDER (JOG)
103 4-124-205-11 KNOB (JOG)
104 A-1660-094-A DISPLAY BOARD, COMPLETE (GTZ2/GTZ2i)
104 A-1711-928-A DISPLAY BOARD, COMPLETE (GTZ3/GTZ3i)
105 3-087-053-01 +BVTP2.6 (3CR)
106 A-1718-276-A PANEL (GTL1) ASSY, DISPLAY
107 1-829-040-11 WIRE (FLAT TYPE) (27 CORE)
S1301 1-487-171-11 ROTARY ENCODER (MASTER VOLUME)
