HCD-GTZ2/GTZ2i/GTZ3/GTZ3i
5

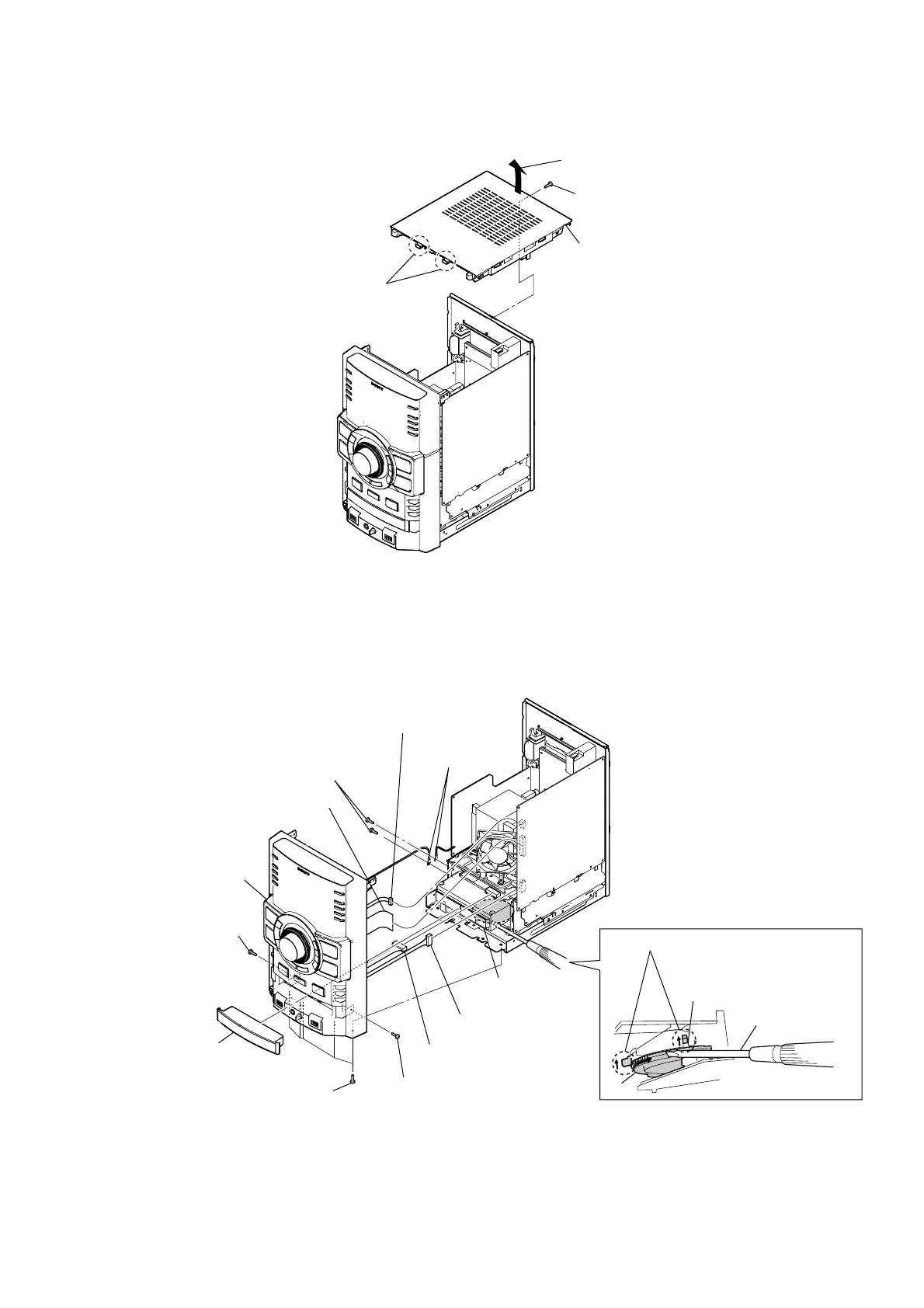

2-3.
TOP
CASE
1
screw
(BVTP3
u
8)
3
two
claws
2
Lift up the back
side of top case.
4
top case
2-4.
FRONT P
ANEL BLOCK
gear
5
connector
(CN404)
4
wire (flat type) (27 core)
(CN405)
8
two
screws
(BVTP3
u
8)
9
two
harness
0
screw
(BVTP3
u
10)
qs
front panel block
3
panel
loading
qa
five
screws
(BVTP3 × 8)
0
screw
(BVTP3 × 10)
7
connector
(CN1501)
lever
1
T
urn a gear by
a driver till a lever
rises up to the
position of the figure.
6
connector
(CN470)
2
Pull the tray
by
hand.
state of opening the CD tray
4
6
Table of Contents
Default Chapter
1
Specifications
1
Table of Contents
2
1 Servicing Notes
3
2 Disassembly
4
Disassembly Flow
4
Case (Side-L/R)
4
Top Case
5
Front Panel Block
5
DC Fan (M101)
6
Back Panel
6
MAIN Board
7
DC Fan (M102) (Gtz3/Gtz3I), POWER AMP Board
7
HUB Board, DMB19 Board
8
CD Mechanism Block (CDM88B-DVBU101)
8
Optical Pick-Up Block (KHM-313CAB)
9
Belt (DLM3A)
9
3 Test Mode
10
4 Electrical Check
12
5 Diagrams
13
Block Diagram - RF SERVO, USB Section
13
Block Diagram - MAIN Section
14
Block Diagram - AMP Section
15
Block Diagram - PANEL, POWER SUPPLY Section
16
Printed Wiring Board - DMB19 Board
18
Schematic Diagram - DMB19 Board (1/3)
19
Schematic Diagram - DMB19 Board (2/3)
20
Schematic Diagram - DMB19 Board (3/3)
21
Printed Wiring Board - MAIN Board
22
Schematic Diagram - MAIN Board (1/3)
23
Schematic Diagram - MAIN Board (2/3)
24
Schematic Diagram - MAIN Board (3/3)
25
Printed Wiring Board - HUB Board
26
Schematic Diagram - HUB Board
27
Printed Wiring Board - POWER AMP Board
28
Schematic Diagram - POWER AMP Board
29
Printed Wiring Board - DISPLAY Board
30
Schematic Diagram - DISPLAY Board
31
Printed Wiring Boards - PANEL Section
32
Schematic Diagram - PANEL Section
33
Printed Wiring Board - TRANS1S Board (GTZ2: Chilean and Peruvian Models)
34
Schematic Diagram - TRANS1S Board (GTZ2: Chilean and Peruvian Models)
35
Printed Wiring Board - TRANSX Board (GTZ2: Mexican Model/Gtz2I)
36
Schematic Diagram - TRANSX Board (GTZ2: Mexican Model/Gtz2I)
37
Printed Wiring Board - TRANS Board (Gtz3/Gtz3I)
38
Schematic Diagram - TRANS Board (Gtz3/Gtz3I)
39
6 Exploded Views
48
Case Section
48
Loading Panel Section
49
DISPLAY Board Section
50
Front Panel Section
51
Back Panel Section
52
MAIN Board Section
53
Chassis Section
54
CD Mechanism Section (CDM88B-DVBU101)
55
7 Electrical Parts List
56
Mexican Model
56
4
