HCD-GTZ2/GTZ2i/GTZ3/GTZ3i

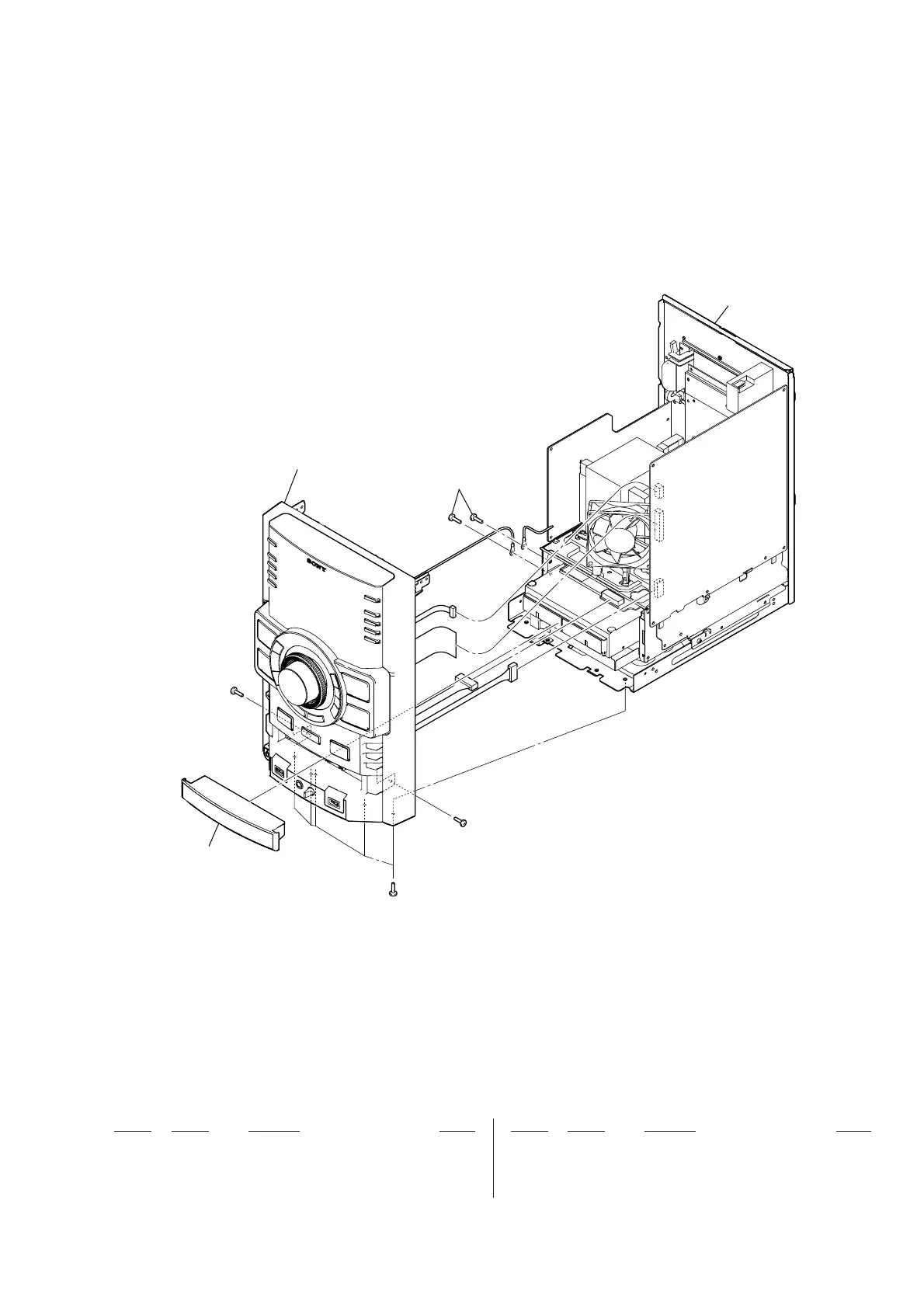

6-2. LOADING PANEL SECTION
DISPLAY board section
#2
#1
#2
#1
back panel section
51
51 4-124-214-21 PANEL, LOADING (GTZ3: E2, E51, MX, AR)
51 4-124-214-31 PANEL, LOADING (GTZ2)
51 4-124-214-61 PANEL, LOADING (GTZ3i)
51 4-124-214-71 PANEL, LOADING (GTZ2i)
51 4-130-318-61 PANEL, LOADING (GTZ3: E3)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
