52
HCD-GTZ2/GTZ2i/GTZ3/GTZ3i

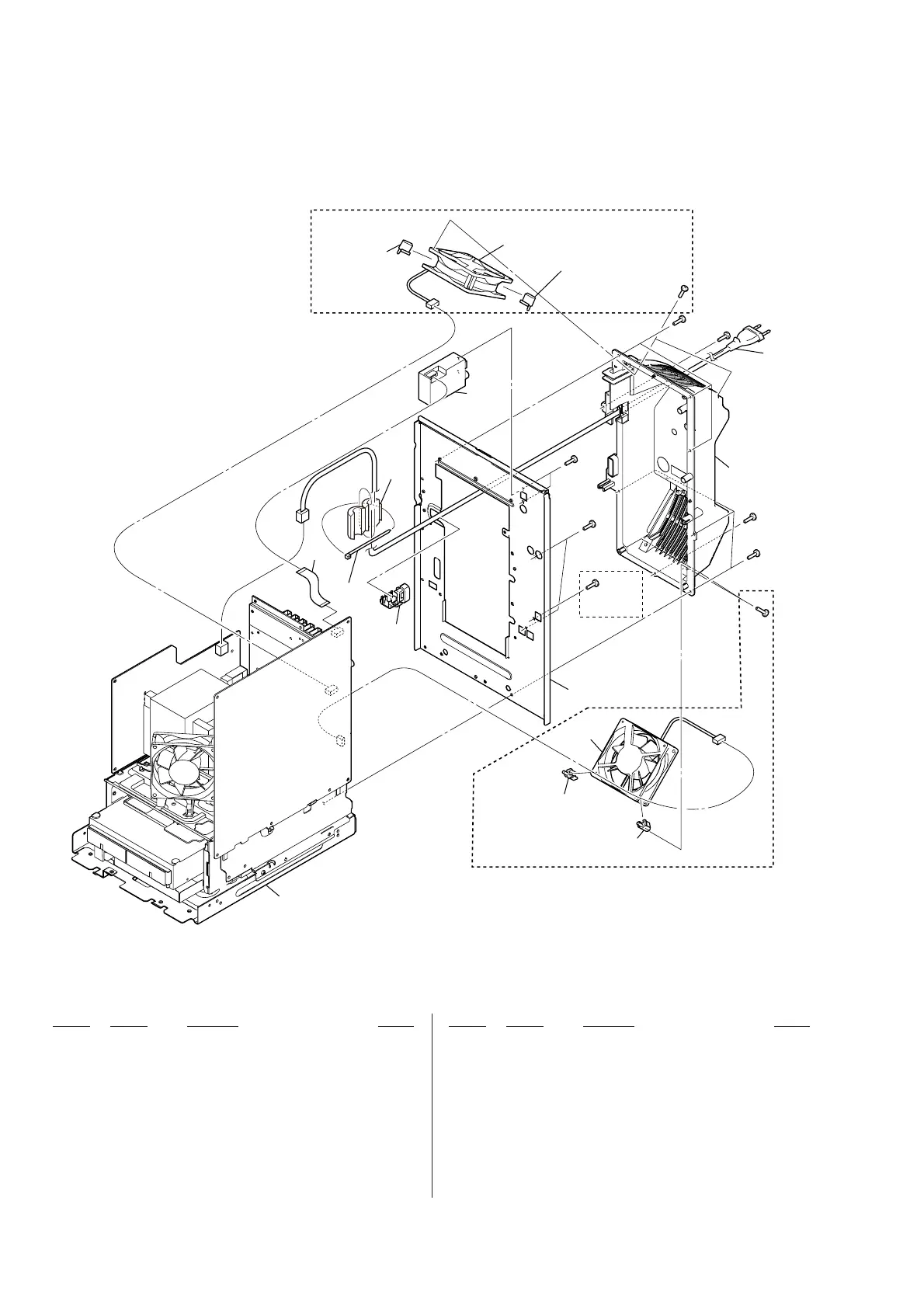

6-5. BACK PANEL SECTION
(GTZ3/
GTZ3i)
(GTZ3/GTZ3i)
(GTZ2/GTZ2i)
not supplied
not supplied
M101
MAIN board section
204
203
201
202
205
206
207
#3
not supplied
not supplied
M101
#3
#1
#1
#1
#1
#1
#1
#4
not supplied
201 1-828-952-11 WIRE (FLAT TYPE) (9 CORE) (GTZ2/GTZ3)
201
1-828-962-1
1
WIRE (FLA
T TYPE) (11 CORE) (GTZ2i/GTZ3i)
202 1-457-369-12 CORE, FERRITE
203 3-655-653-11 BAND (TAITON), BINDING
204 3-703-244-00 CORD BUSH (2104) (EXCEPT MX)
204 3-703-571-11 CORD BUSH (4516) (MX)
205 1-693-759-11 TUNER (FM/AM) (GTZ2i/GTZ3i)
205 1-693-764-22 TUNER (FM/AM) (GTZ2/GTZ3)
206 4-124-216-03 COVER (FAN) (GTZ3: E2, E3, E51)
206 4-124-216-12 COVER (FAN) (GTZ3: MX, AR/GTZ3i)
206 4-124-216-43 COVER (FAN) (GTZ2: E51)
206 4-124-216-52 COVER (FAN) (GTZ2: MX/GTZ2i)
0 207 1-777-071-83 CORD, POWER (AEP, UK, E2, E3, E51)
0 207 1-829-387-11 CORD, POWER (AR)
0 207 1-829-627-11 POWER-SUPPLY CORD (MX)
M101 1-787-344-11 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1
