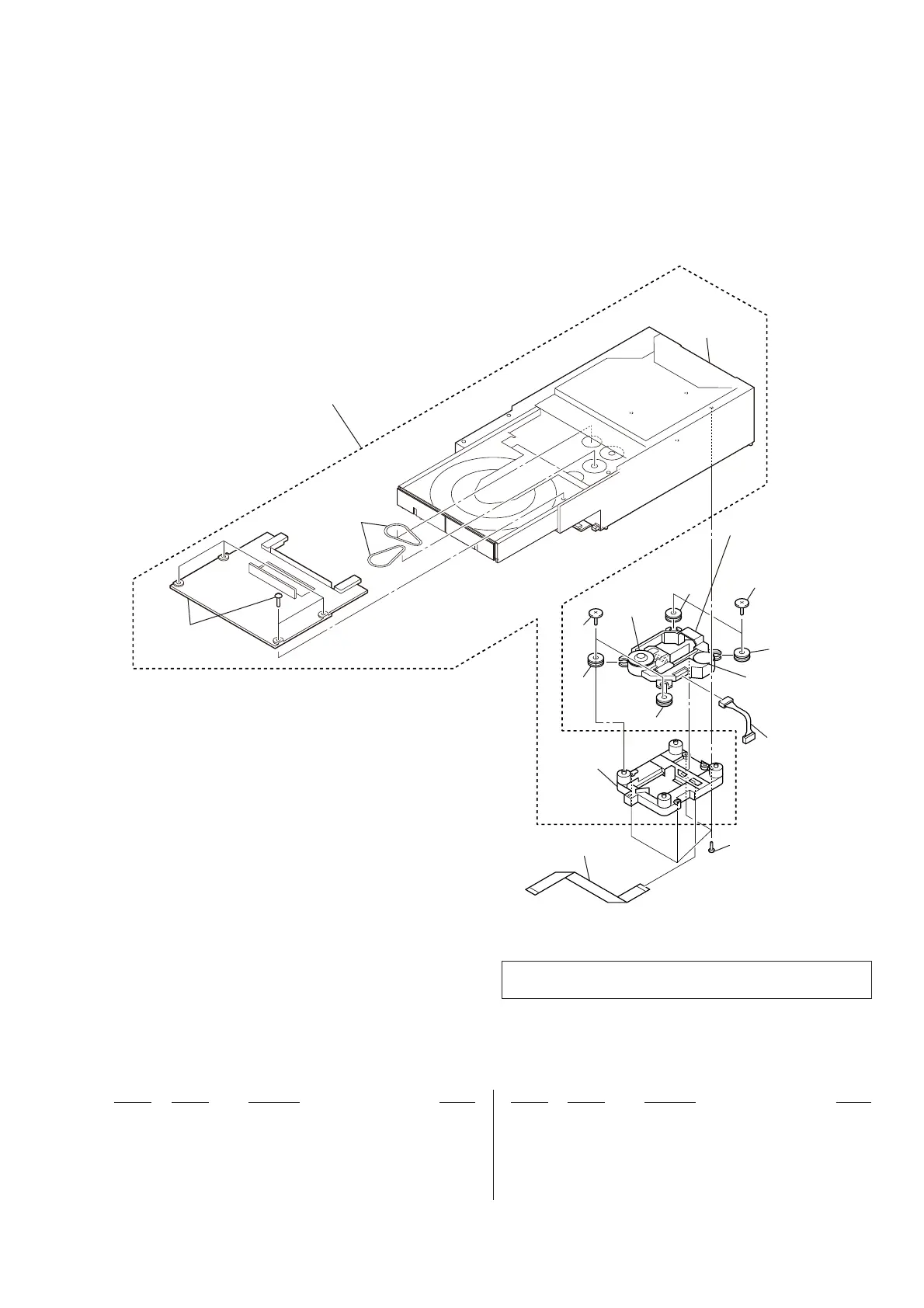

6-8. CD MECHANISM SECTION (CDM88B-DVBU101)
501 1-797-193-72 MECHANICAL, CD (DLM3A)
502 2-632-062-01 BELT (DLM3A)
503 2-634-618-21 INSULATOR
504 3-087-599-01 INSULATOR SCREW
0 505 8-820-322-04 OPTICAL PICK-UP BLOCK (KHM-313CAB/C2RP)
(Including sled motor, spindle motor)
506 3-087-053-01 +BVTP2.6 (3CR)
507 1-828-252-11 WIRE (FLAT TYPE) (24 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
(sled motor)
not supplied
not supplied
not supplied
(spindle
motor)
502
501
504
505
(including sled motor,
spindle motor)
503
503
503
503
504
506
507
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
