HCD-HDX275/HDX277WC/HDX279W/HDX475/HDX576WF/HDX675
SECTION 7
EXPLODED VIEWS
1 3-278-568-01 PANEL (DCR), LOADING
2 3-278-569-01 ORNAMENT, LOADING (HDX675)
2 3-278-569-11 ORNAMENT, LOADING (EXCEPT HDX675)
3 3-077-331-21 +BV3 (3-CR)
4 3-278-577-12 CASE (DCR)
5 3-363-099-22 SCREW (CASE 3 TP2)
6 1-828-290-11 WIRE (FLAT TYPE) (5 CORE)
7 1-828-310-11 WIRE (FLAT TYPE) (9 CORE)
8 1-828-301-11 WIRE (FLAT TYPE) (7 CORE)
9 1-828-347-11 WIRE (FLAT TYPE) (17 CORE)
10 A-1436-211-A I/O BOARD, COMPLETE
(HDX275/HDX475/HDX675)
10 A-1436-346-A I/O BOARD, COMPLETE (HDX576WF)
10 A-1539-127-A I/O BOARD, COMPLETE (HDX277WC/HDX279W)
11 1-693-761-11 TUNER (FM/AM) (E3, AUS)
11 1-693-762-11 TUNER (FM/AM) (US, CND)
12 1-828-955-11 WIRE (FLAT TYPE) (9 CORE)
13 A-1436-297-A S-AIR INC BOARD, COMPLETE
(HDX277WC/HDX279W/HDX576WF)
14 1-828-352-11 WIRE (FLAT TYPE) (17 CORE) (HDX277WC/
HDX279W/HDX576WF)
15 3-077-331-11 +BV3 (3-CR) (HDX275/HDX277WC/HDX279W/
HDX475/HDX576WF/HDX675)
16 3-077-331-01 +BV3 (3-CR)
0 17 1-834-966-21 CORD, POWER (E3)
0 17 1-834-967-21 CORD, POWER (AUS)
0 17 1-834-978-11 CORD, POWER (US, CND)
18 3-703-244-00 BUSHING (2104), CORD
19 2-677-839-01 +PWH 3X8 (SUMITITE)
20 A-1438-875-A S-AIR CON PWB BOARD, COMPLETE
(HDX275/HDX475/HDX675)
21 1-828-350-11 WIRE (FLAT TYPE) (17 CORE) (HDX275/HDX475/
HDX675)
M3000 1-787-396-11 D.C. FAN (50 SQUARE)
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
#2 7-682-547-04 SCREW +B 3X6
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : 240V AC area in E model

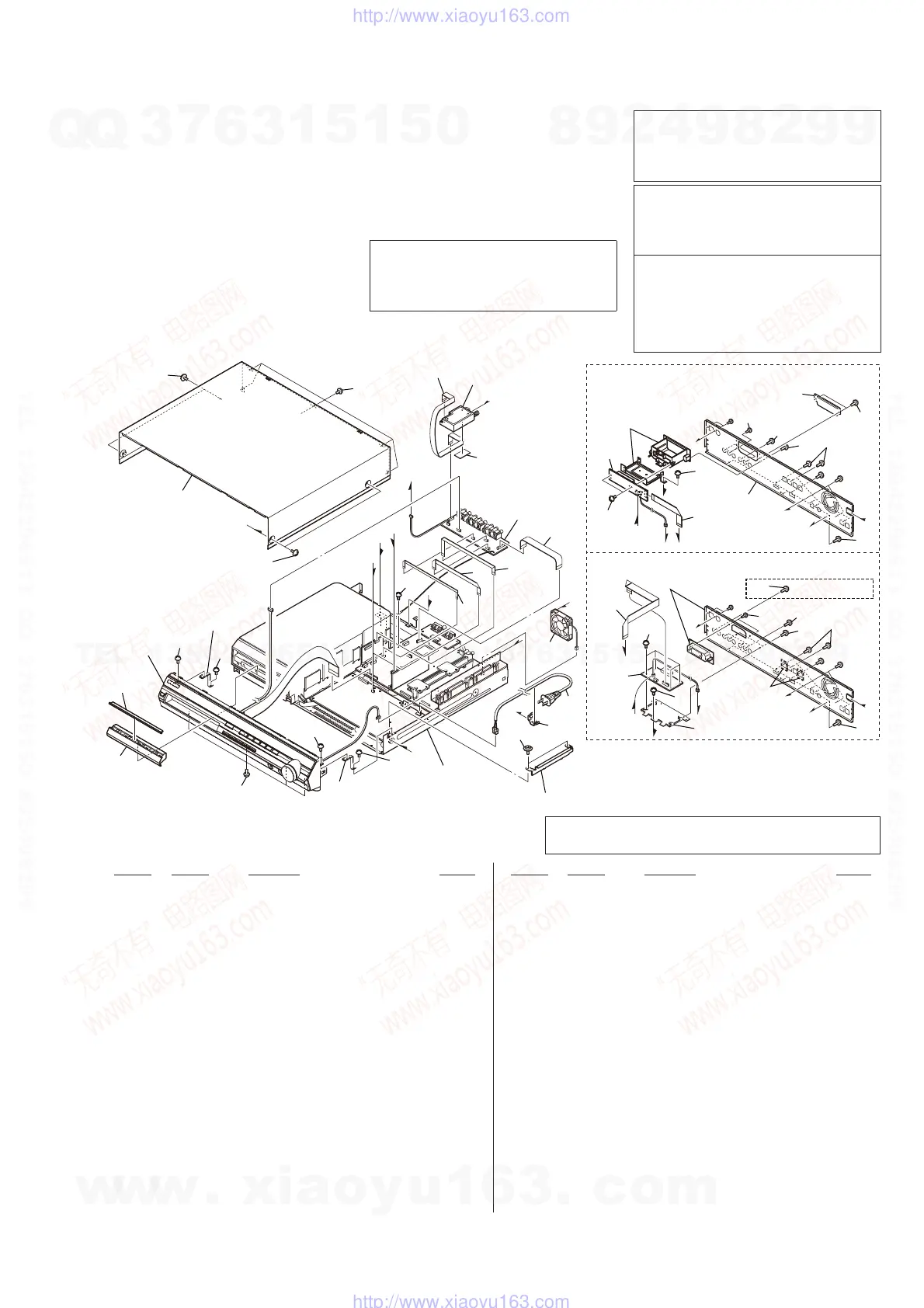

7-1. CASE SECTION
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
5
4
3
12
11
14
13
not supplied
16
16
3
15
#1
#3
#2
M3000
3
not supplied
not supplied
not supplied
not supplied
17
18
19
not supplied
chassis section
not supplied
front panel
section
not
supplied
3
3
3
1
2
6
7
8
10
9
3
3
3
3
3
5
16
(HDX275/HDX475/HDX675)
(HDX277WC/HDX279W/HDX576WF)
(HDX576WF)
(HDX277WC)
+
+
"
"
#
#
#
$
$
'
'
%
%
%
&
&
&
)
(
*
20
)
*
16
16
3
15
#1
#3
#2
3
3
21
