86
HCD-HDX275/HDX277WC/HDX279W/HDX475/HDX576WF/HDX675

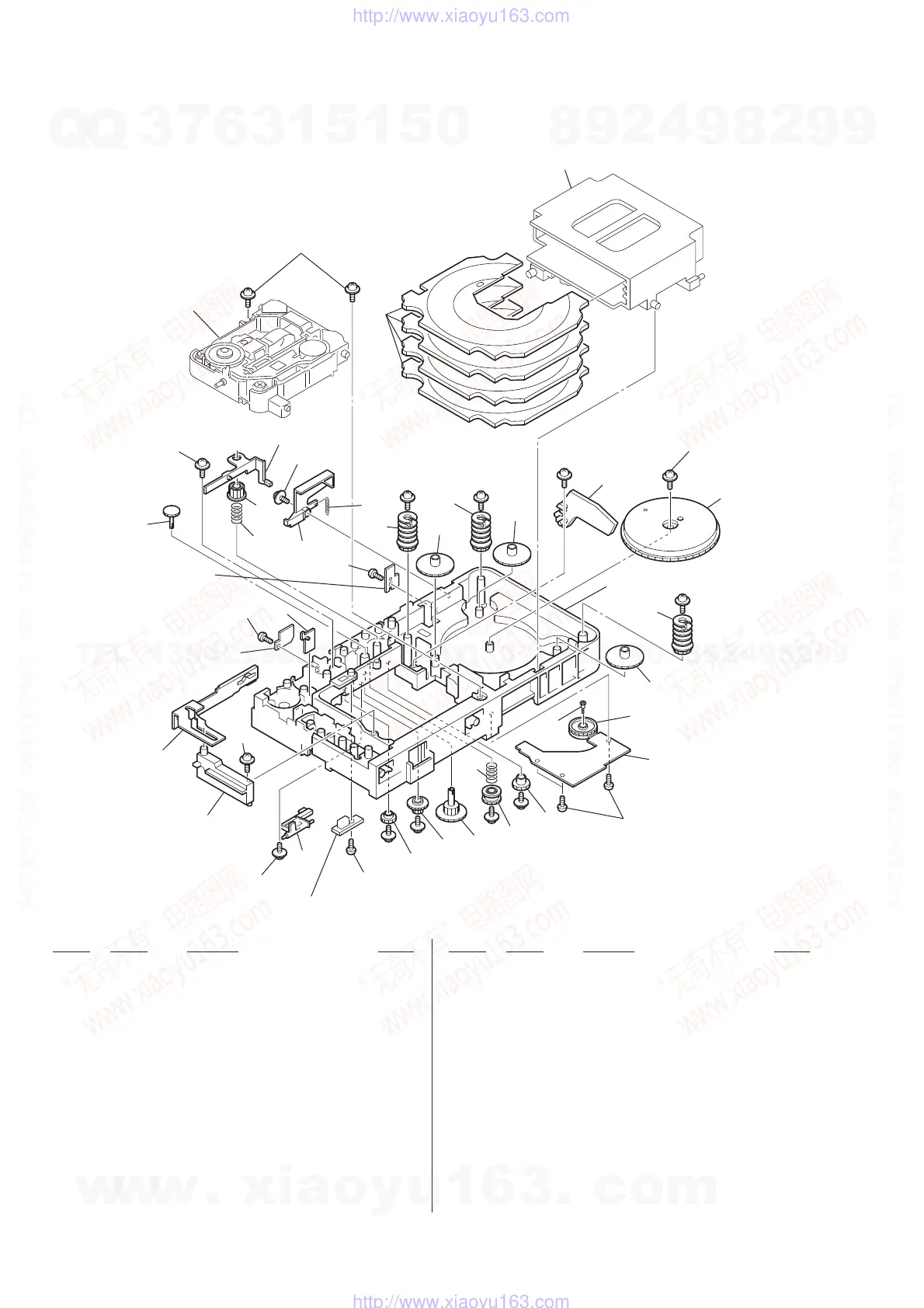

7-6. DVD MECHANISM DECK SECTION-3
(CDM81C-DVBU101)
251 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
252 4-251-873-01 SPRING (MODE), COMPRESSION
253 4-251-874-02 SPRING (SW), TENSION
254 4-251-844-01 GEAR (SS2)
255 4-251-835-01 GEAR (STOCKER 1)
256 4-251-833-01 LEVER (SUB TRAY)
257 4-251-843-01 LEVER (RELEASE)
258 4-251-831-02 LEVER (MODE)
259 4-251-862-01 SHUTTER (TRAY)
260 4-251-845-01 GEAR (SS3)
261 4-251-829-02 TRAY (SUB)
262 4-251-827-01 CAM (STOCKER)
263 4-251-836-01 GEAR (STOCKER 2)
264 4-251-838-01 GEAR (STOCKER 3)
265 4-251-823-01 CHASSIS (CDM81)
266 A-4750-232-A RELAY BOARD, COMPLETE
(including ENCODER board)
267 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING
268 4-251-825-01 CAM (BU)
269 4-251-832-01 LEVER (STOCKER)
270 4-251-861-01 LEVER (SW)
271 4-251-839-01 GEAR (STOCKER 4)
272 4-251-840-01 GEAR (SUB TRAY)
273 4-251-847-01 GEAR (SS4)
274 4-218-253-52 SCREW (M2.6), +BTTP
275 4-251-841-01 GEAR (SUB TRAY 1)
S781 1-478-551-11 ENCODER, ROTARY (STOCKER UP/DOWN)
#7 7-685-902-21 TAPPING +PWH 2.6X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
(SENSOR board)
not supplied
(SW (1) board)
not supplied
(SW (2) board)
251
269
268
251
258
257
270
273
252
272
256
251
251
251
261
253
262
262
263
263
259
264
265
262
263
S781
266
267
251
255
271
260
254
275
274
274
274
274
252
#7
#7
#7
#7
#7
#7
#7
#7
not supplied
optical pick-up section
