87
HCD-HDX275/HDX277WC/HDX279W/HDX475/HDX576WF/HDX675

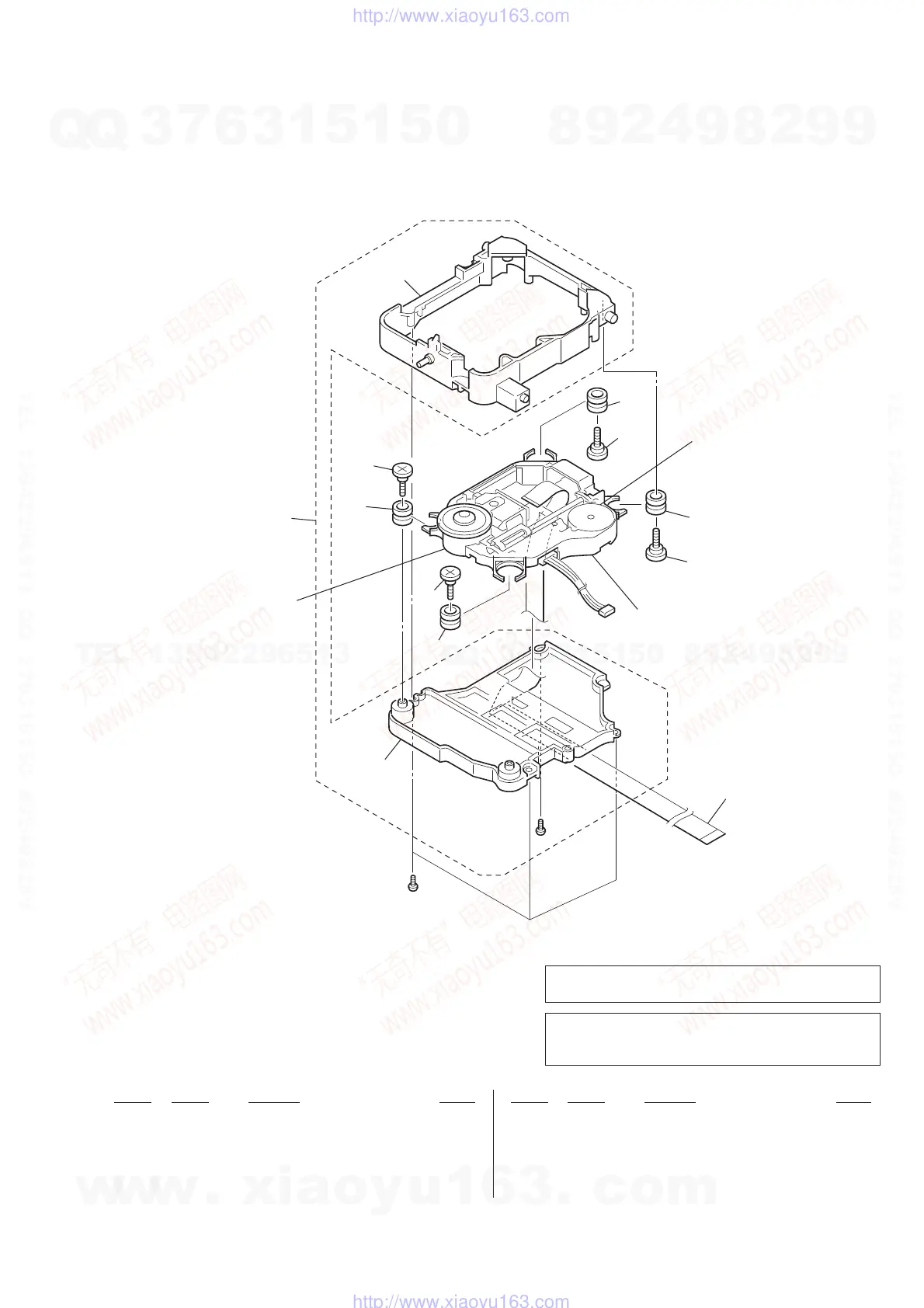

7-7. OPTICAL PICK-UP SECTION
301 X-4956-097-1 HOLDER (310) ASSY
0 302 8-820-291-02 OPTICAL PICK-UP BLOCK (KHM-310CAB/C2RP)
(including sled motor, spindle motor)
0 302 8-820-322-04 OPTICAL PICK-UP BLOCK (KHM-313CAB/C2RP)
(including sled motor, spindle motor)
303 2-634-618-01 INSULATOR
304 3-087-599-01 INSULATOR SCREW
305 4-218-253-52 SCREW (M2.6), +BTTP
306 1-828-774-51 WIRE (FLAT TYPE) (24 CORE)
#6 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301
303
303
303
304
304
304
306
304
302
(including spindle motor,
spindle motor)
303
#6
#6
not supplied
not supplied
not supplied
(spindle motor)
not supplied
(sled motor)
Note 1: If wire (fl at type) is replaced, install it after bending
it in the same form as thet before replacement.
Note 2: Refer to the Servicing Notes “HOW TO IDENTIFY
OPTICAL PICK-UP BLOCK” (page 7), if replacing
the Ref. No. 302.
