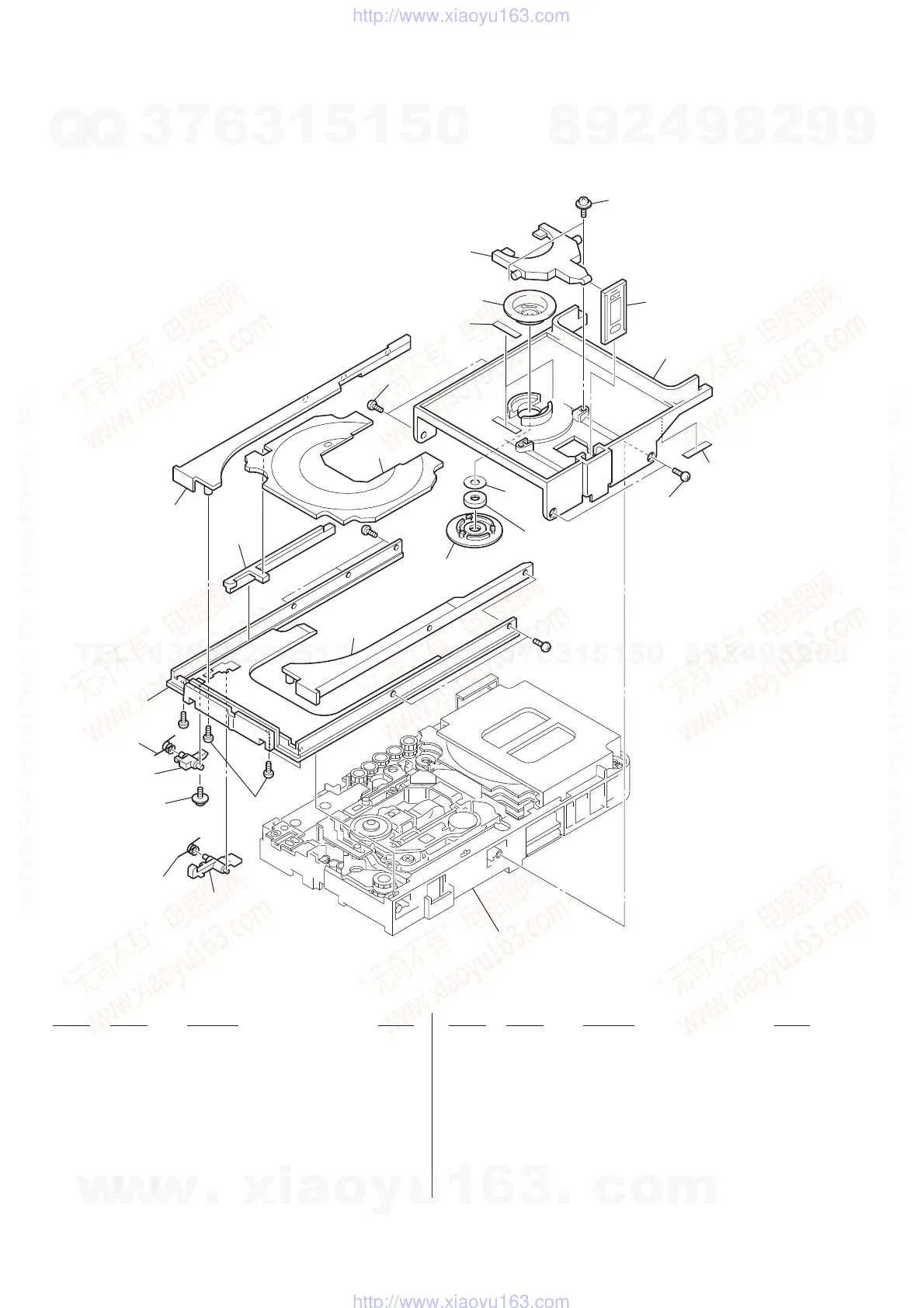

7-4. DVD MECHANISM DECK SECTION-1
(CDM81C-DVBU101)
151 4-251-849-01 LEVER (SW2)
152 4-251-991-01 SPRING (SW2), TORSION
153 4-251-860-01 LEVER (LOCK)
154 4-251-867-01 SPRING (LOCK), TORSION
155 4-251-828-01 TRAY (MAIN)
156 4-251-822-01 JOINT (LIFTER)
157 4-251-857-01 COVER (R)
158 4-251-830-01 SLIDER (ST)
159 4-251-858-01 COVER (L)
160 4-251-829-02 TRAY (SUB)
161 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
162 4-251-923-01 YOKE (310)
163 4-251-821-03 BRACKET (TOP)
164 4-251-922-01 PULLEY B (310), CHUCKING
165 4-251-824-01 LIFTER
166 4-251-837-01 PULLEY A (310), CHUCKING
167 4-218-253-52 SCREW (M2.6), +BTTP
168 4-674-137-11 SCREW (PTP 2X5)
#8 7-685-102-19 SCREW +P 2X4 NON-SLIT TYPE 2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151
168
167
152
155
153
167
167
154
157
158
159
160
162
166
163
164
165
161
156
not supplied
not supplied
