83
HCD-HDX275/HDX277WC/HDX279W/HDX475/HDX576WF/HDX675
101 1-828-369-11 WIRE (FLAT TYPE) (21 CORE)
102 3-077-331-21 +BV3 (3-CR)
103 2-597-972-41 SHEET, RADIATION (HDX275/HDX277WC/
HDX475/HDX675)
103 2-597-972-61 SHEET, RADIATION (HDX279W/HDX576WF)
9 104 A-1436-234-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX275: US)
9 104 A-1436-242-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX275: AUS)
9 104 A-1436-299-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX277WC)
9 104 A-1436-334-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX475)
9 104 A-1436-348-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX576WF)
9 104 A-1436-356-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX675)
9 104 A-1509-053-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX275: E3)
9 104 A-1510-710-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX279W)
105 2-597-972-51 SHEET, RADIATION
106 A-1436-213-A SERIPARA BOARD, COMPLETE
108 3-077-331-11 +BV3 (3-CR)
109 2-677-839-01 +PWH 3X8 (SUMITITE)
110 A-1392-694-A POWER BOARD, COMPLETE (HDX275: E3, AUS)
110 A-1392-696-A POWER BOARD, COMPLETE
(HDX275: US/HDX277WC/HDX279W/HDX475/
HDX576WF/HDX675)
111 4-231-099-91 SHEET, RADIATION
112 4-232-478-31 FOOT
0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V)
(US, CND)
0 F901 1-576-233-51 FUSE (H.B.C.) (T6.3AH/125V) (E3, AUS)
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#4 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

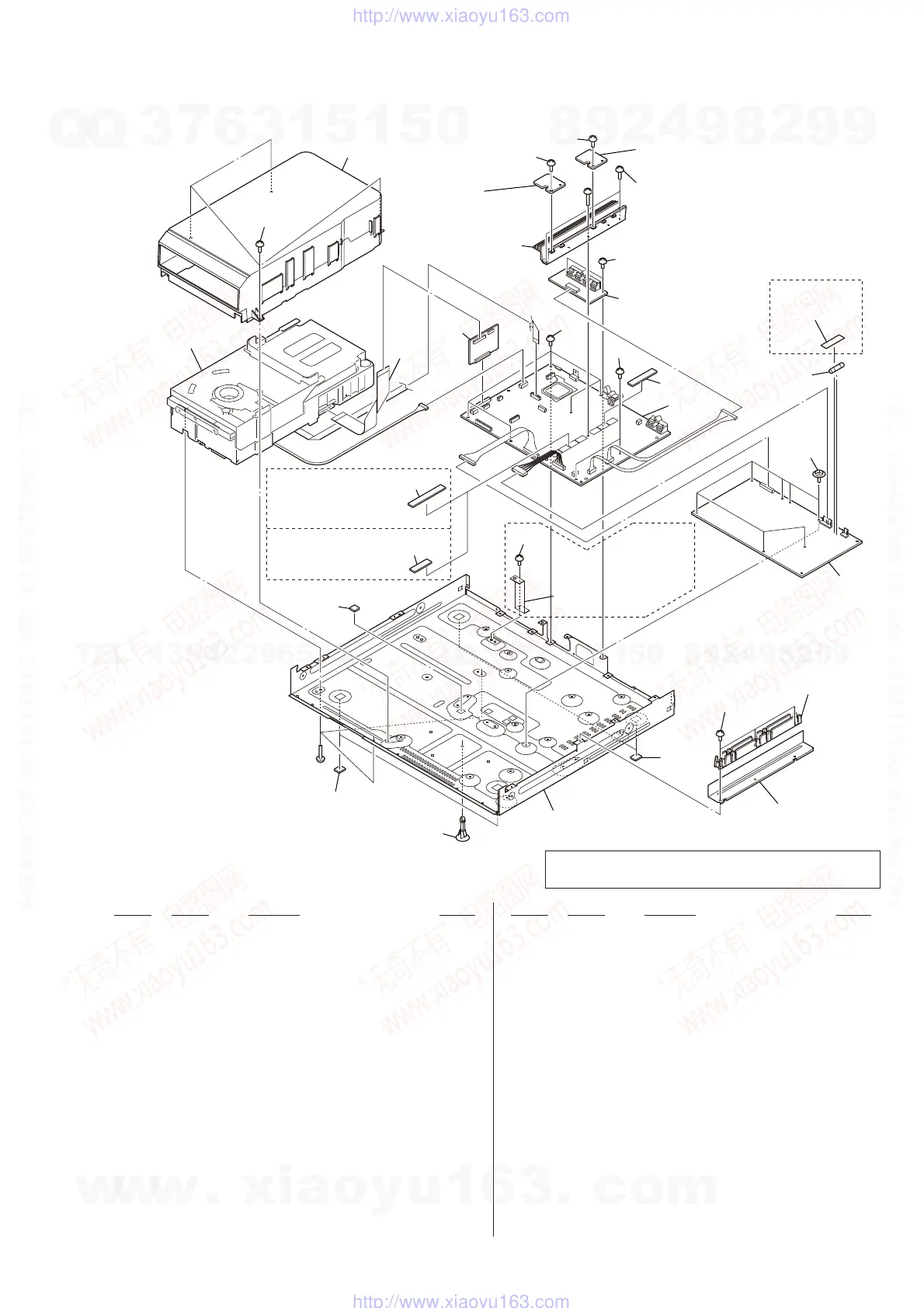

7-3. CHASSIS SECTION
(HDX275/HDX277WC/
HDX475/HDX675)
(HDX279W/
HDX576WF)
(HDX277WC/
HDX279W/
HDX576WF)
(US, CND)
103
103
not supplied
102
102
102
108
#4
not supplied
not supplied
(HEATSINK B board)
not supplied
(HEATSINK A board)
not supplied
(SPEAKER board)
not supplied
F901
109
110
102
not supplied
not supplied
not supplied
not supplied
#3
112
111
102
not
supplied
DVD mechanism
deck section-1
(CDM81C-DVBU101)
102
106
101
102
102
105
104
112
Note: If wire (fl at type) is replaced, install it after bending it
in the same form as thet before replacement.
