HCD-RV660D/RV990D
• Refer to page 17 for Circuit Boards Location.

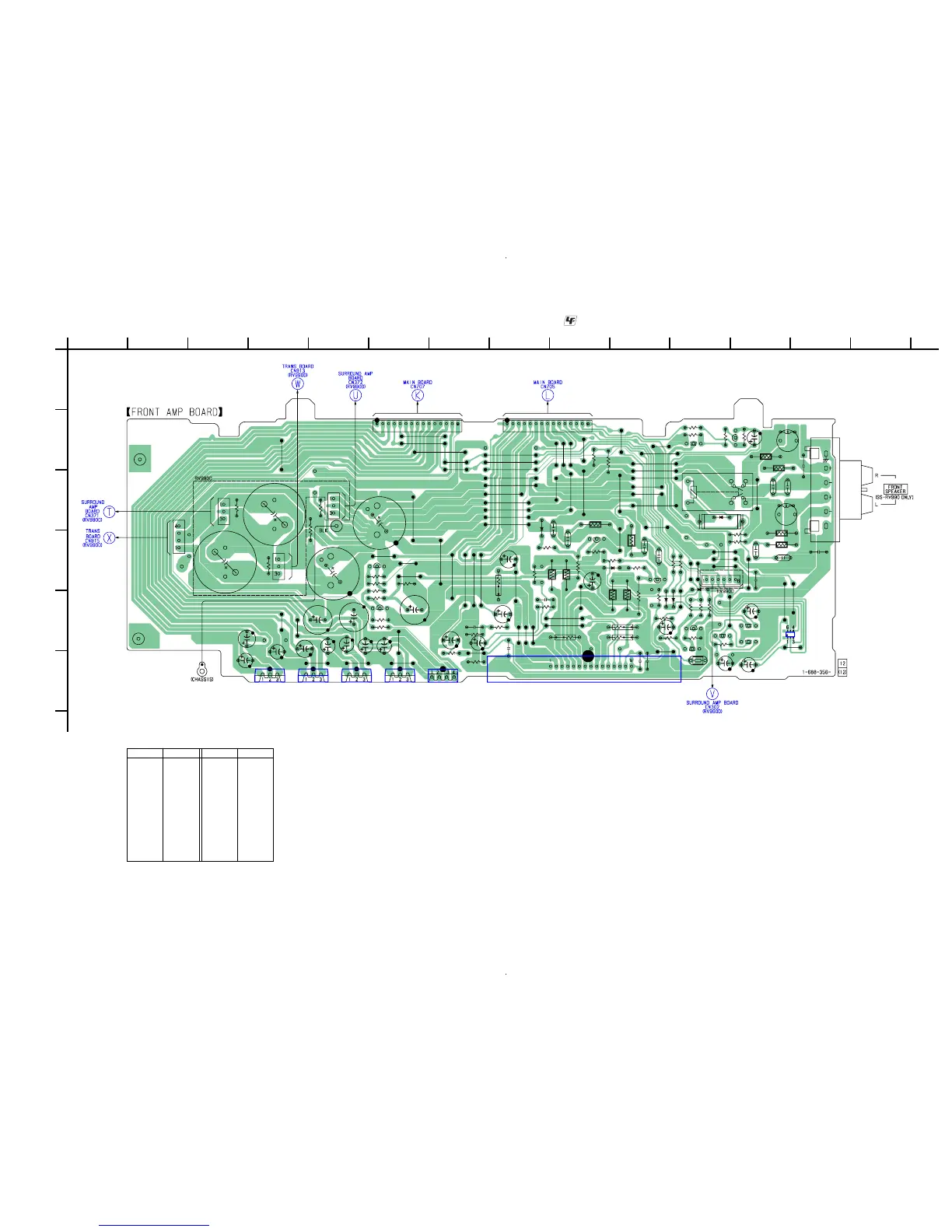

3-25. PRINTED WIRING BOARD — FRONT AMP SECTION — • Refer to page 17 for Common Note on Printed Wiring Boards. : Uses unleaded solder.
D201 D-10
D230 E-10
D231 E-10
D251 C-8
D281 C-11
D291 E-11
IC201 F-9
IC203 E-12
IC921 F-7
IC922 F-6
IC923 F-5
IC932 F-4
Ref. No. Location
• Semiconductor Location
Ref. No. Location
IC934 F-5
Q201 D-10
Q216 E-11
Q217 F-11
Q221 E-6
Q222 D-6
Q232 E-12
Q233 E-11
Q234 E-12
Q251 D-9
Q281 B-11
Q282 B-11
(Page 43)
(Page 47)
(Page 47)
(Page 43)
(Page 32)
(Page 32)
(Page 43)
1
A
B
C
D
E
F
234567891011 12 13 14
IC203
TH201
C254
C204
C201
R217
R218
R215
R272
CN206
JW
244
C934
C938
C933
JW
245
C937
IC921
C925
JW
243
Q251
Q222
D251
R222
R260
C202
IC923
C216
R210
C257
C207
C206
R208
R283
R252
R202
R201
R251
R254
R258
R221
R224
R223
Q221
IC934
C258
C283
C221
IC932
C922
R259
C924
D281
R240
C252
R233
C233
Q232
Q233
C232
Q234
C923
R924
C926
C921
IC922
R211
C231
C208
R290
Q282
R280
C281
C256
C282
C284
L281
R284
R281
CN201
R282
Q201
TM
201
LP201
LP202
L282
C234
R287
Q281
C203
RY281
R
288
IC201
R206
R205
R256
R255
R289
D230
D231
R253
C253
R216
R203
R209
D201
R257
R219
R220
R239
D291
R204
R230
R231
R285
R286
C285
C286
C271
C272
R214
C273
R273
R274
JW
202
JW
203
JW
206
JW
207
JW
208
JW
209
JW
215
JW
222
JW
223
JW
224
JW
226
JW
227
JW
228
JW
229
JW
230
JW
231
JW
232
JW
234
JW
236
JW
237
JW
238
JW
239
JW
240
JW
241
JW
242
JW
256
JW
258
JW
249
JW
255
NO251
R207
NO273
JW
272
JW
273
R226
R225
JW
275
JW
205
JW
204
NO274
NO271
JW
276
Q217
Q216
C235
C274
JW
200
JW
210
R261
JW
263
JW
262
JW
261
JW
274
JW260
JW
251
JW
250
JW
252
JW
253
JW
254
JW257
JW
264
JW
265
JW
268
JW266
JW
269
JW
271
JW
270
JW
267
JW221
JW
220
JW
219
JW
212
JW
214
JW
213
JW
216
JW
933
JW
201
JW
248
JW
217
C251
JW
233
NO272
R271
