HCD-RV660D/RV990D

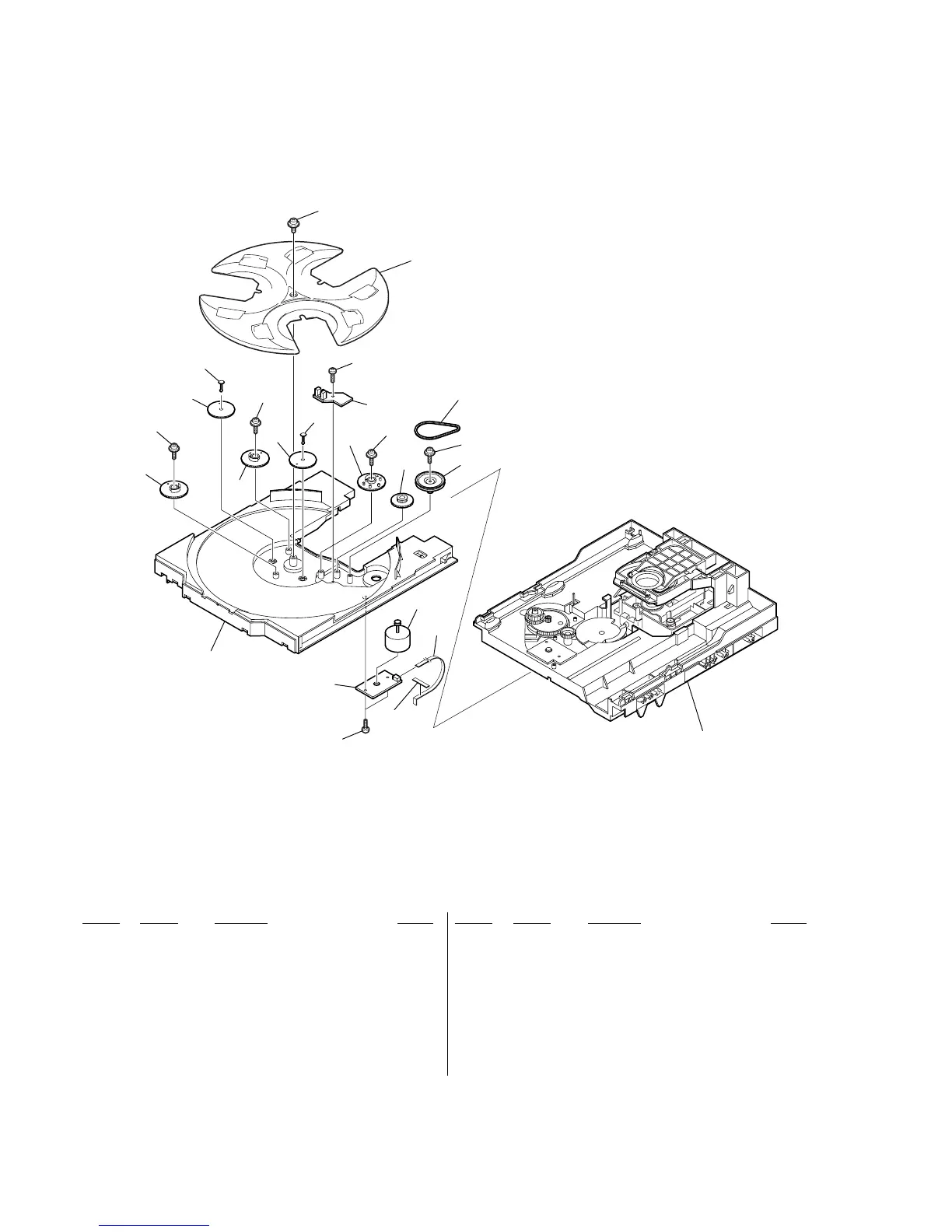

4-8. DVD MECHANISM DECK SECTION (1)
(CDM74S-DVBU23)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 4-218-253-21 SCREW (M2.6), +BTTP
302 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
303 1-687-134-11 MOTOR (TB) BOARD
304 4-243-815-01 TABLE (LOADING)
305 4-245-571-02 GEAR (STOPPER)
306 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
307 4-245-570-01 GEAR (JOINT)
308 4-245-572-01 BUSHING (GEAR)
309 1-687-132-11 SENSOR BOARD
310 4-243-820-01 GEAR (TABLE)
311 4-243-819-01 GEAR (GENEVA)
312 4-243-816-01 TRAY
313 4-243-823-01 BELT (TABLE)
314 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
315 4-243-821-01 PULLEY (TABLE)
316 3-231-598-01 SHEET (BA)
M741 A-4723-963-A MOTOR ASSY, TABLE (TABLE)
301
302
316
303
304
305
305
306
306
307
307
308
308
309
301
306
312
313
314
315
310
311
314
M741
chassis assy
