4848
HCD-RV660D/RV990D

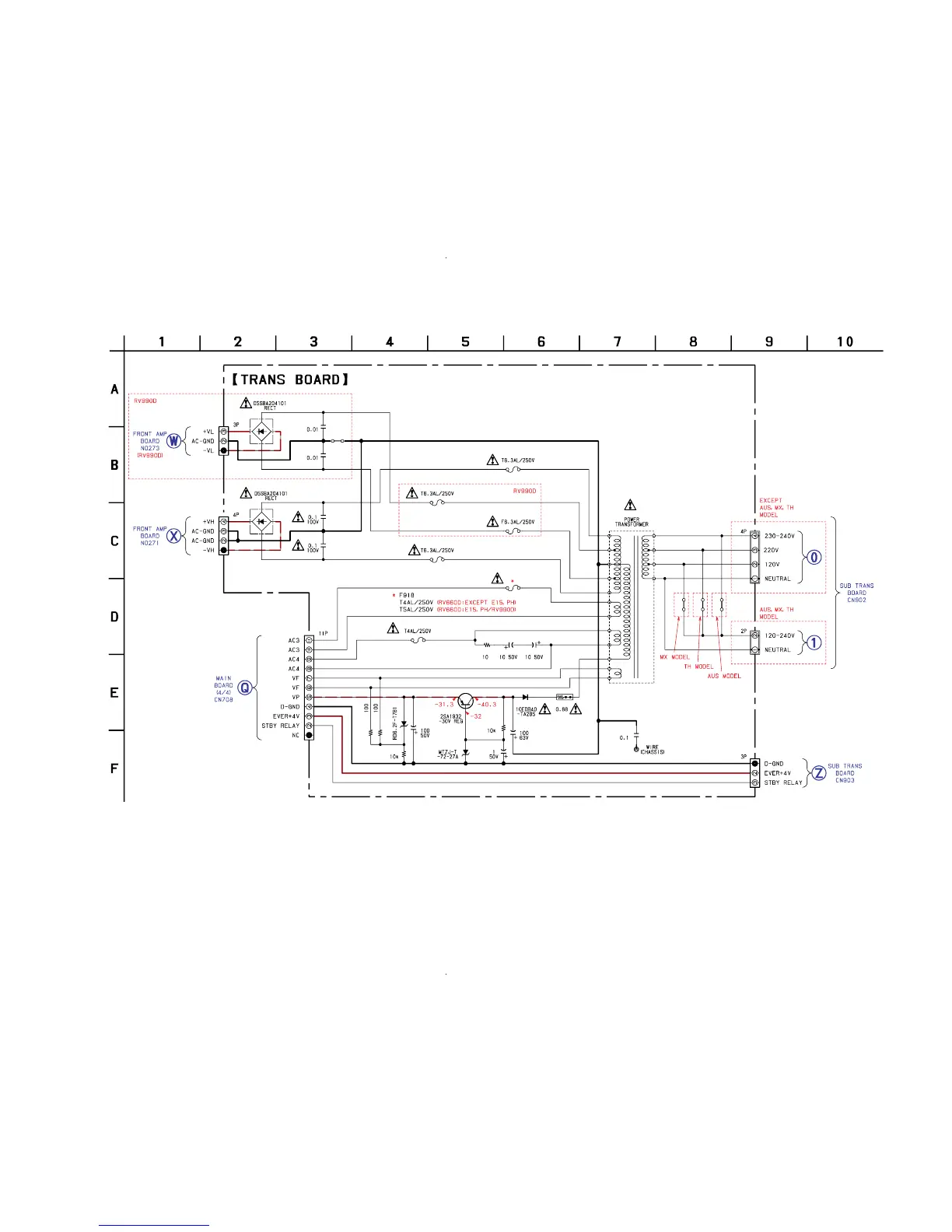

3-32. SCHEMATIC DIAGRAM — POWER SUPPLY SECTION (1/2) — • Refer to page 17 for Common Note on Schematic Diagrams.
C918
C912
C913
C271
C272
R914
R938
R915
R916
C915
D913
CN913
CN911
NO912
CN915
CN914
D371
D271
JW972
T911
F914
F916
F915
F917
F919
R911
EP902
D912
C930C929R917
C371
C372
F918
D911
CN911
JW923
JW922
JW921
Q971
(Page 42)
(Page 42)
(Page 36)
(Page 50)
(Page 50)
