HCD-RV660D/RV990D
SECTION 4
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.
• Abbreviation
E3 : 240 V AC area in E model
E15 : 220 – 240 V AC area in E model
E51 : 220 V AC area in E model
AUS: Australian model
EA : Saudi Arabia model
PH : Philippine model
SP : Singapore model
TH : Thai model
MY : Malaysia model
MX : Mexican model
Ref. No. Part No. Description Remark

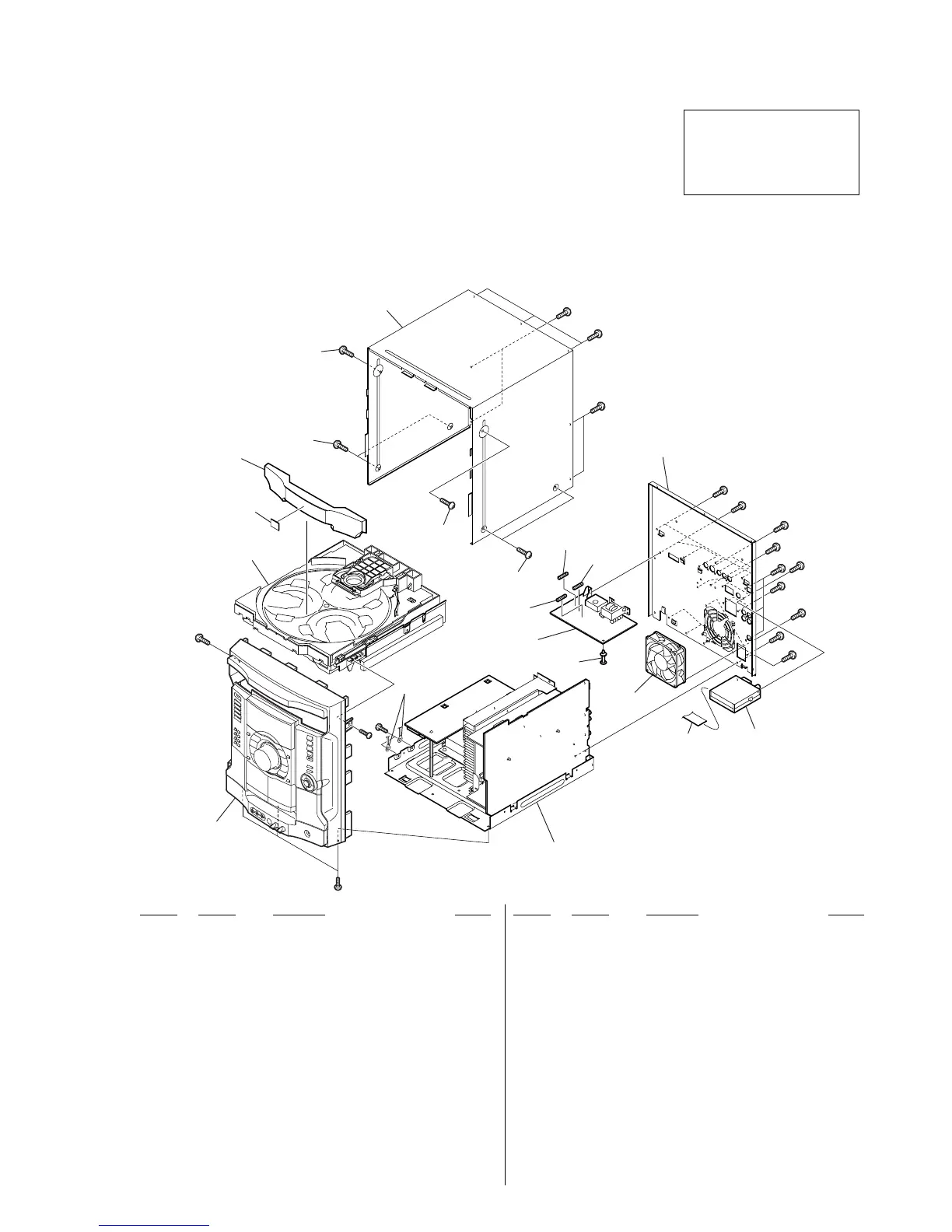

4-1. MAIN SECTION
Ref. No. Part No. Description Remark
1 A-4733-306-A SUB TRANS BOARD, COMPLETE
(RV990D:EXCEPT E51,AUS,MX,TH)
1 A-4733-309-A SUB TRANS BOARD, COMPLETE (RV990D:AUS)
1 A-4733-312-A SUB TRANS BOARD, COMPLETE (RV990D:E51)
1 A-4733-315-A SUB TRANS BOARD, COMPLETE (MX)
1 A-4748-000-A SUB TRANS BOARD, COMPLETE (RV990D:TH)
1 A-4748-006-A SUB TRANS BOARD, COMPLETE (RV660D:TH)
1 A-4749-049-A SUB TRANS BOARD, COMPLETE
(RV660D:EXCEPT E51,AUS,TH)
1 A-4749-063-A SUB TRANS BOARD, COMPLETE (RV660D:AUS)
1 A-4749-073-A SUB TRANS BOARD, COMPLETE (RV660D:E51)
23-067-237-11 EMBLEM (V), DVD
33-363-099-01 SCREW (CASE 3 TP2)
43-363-099-41 SCREW (CASE 3 TP2)
54-240-183-11 CASE (TH)
54-240-183-31 CASE (EXCEPT TH)
6 1-769-956-11 WIRE (FLAT TYPE) (11 CORE)
7 4-246-095-11 CD DOOR (DVD) (RV990D)
7 4-246-095-21 CD DOOR (DVD) (RV660D)
0 F911 1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)
(EXCEPT AUS,MX,TH)
0 F912 1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)
(EXCEPT AUS,MX,TH)
0 F913 1-533-473-11 FUSE, GLASS TUBE (DIA.5) (T6.3AL/250V)
(RV660D:EXCEPT TH)
0 F913 1-576-655-11 FUSE, GLASS TUBE (DIA.5) (T8AL/250V)
(RV990D:EXCEPT TH)
M961 1-763-072-11 FAN, DC
TM301 1-693-615-21 TUNER PACK (FM/AM) (ANTENNA)
#1 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
not
supplied
#3
#3
#3
#3
#3
#2
#3
#2
#3
#3
#3
#3
#1
#2
#3
#3
#3
M961
F911
F912
F913
not supplied
not supplied
front panel
section
main board section
DVD block section
TM301
7
3
2
4
5
1
6
4
3
