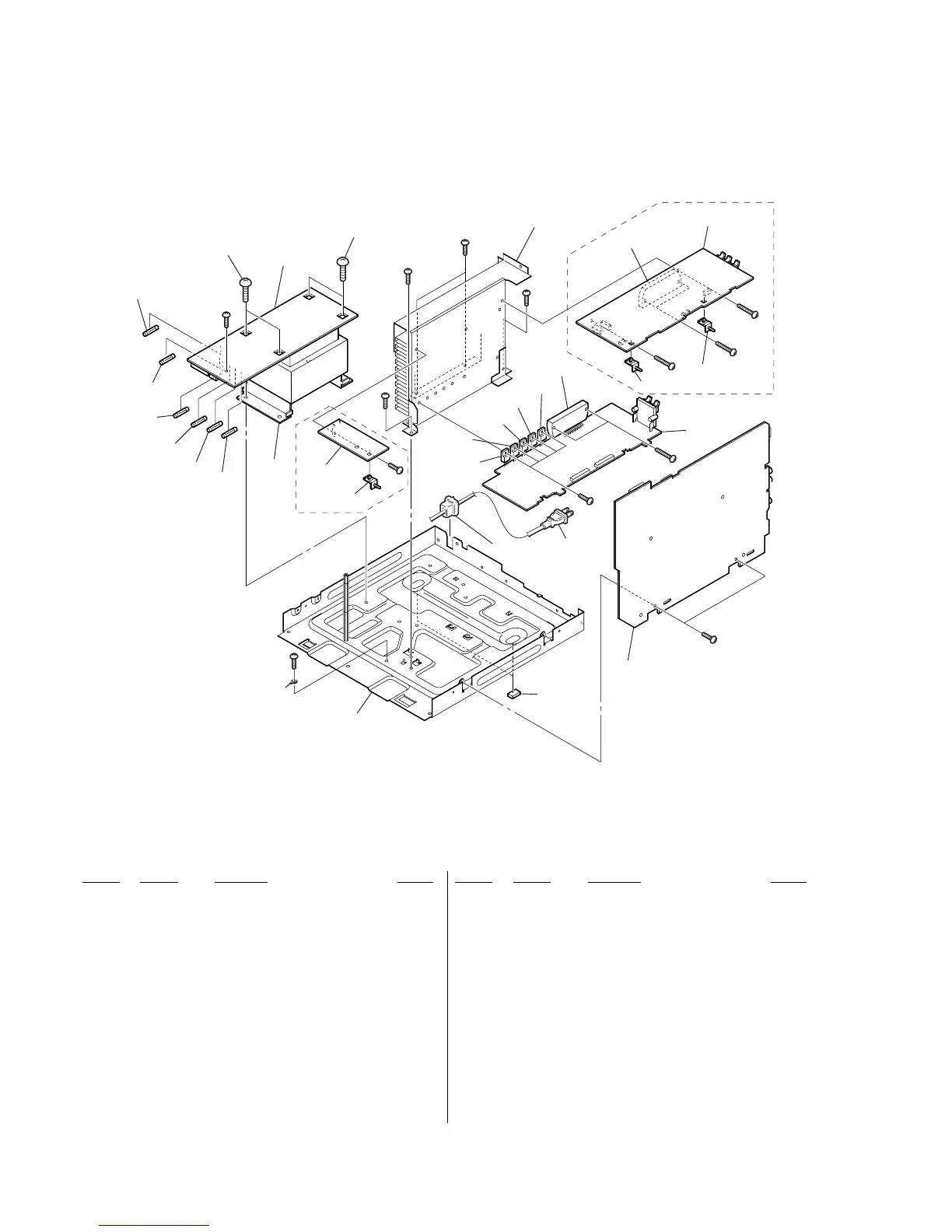

4-6. MAIN BOARD SECTION (1/2)
251
252
253
254
256
255
255
258
257
259
F917
T911
F916
HCD-RV660D
HCD-RV990D
F914
F915
F918
F919
#3
#3
#2
#6
#2
#3
#2
#1
#1
#1
#1
IC201
IC301
IC932
IC934
IC923
IC922
IC921
#2
#2
not supplied
not supplied
not supplied
not supplied
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 A-4733-086-A MAIN BOARD, COMPLETE (RV990D:PH,SP,MY)
251 A-4733-093-A MAIN BOARD, COMPLETE (RV990D:E3,E15)
251 A-4733-094-A MAIN BOARD, COMPLETE (RV990D:EA)
251 A-4733-095-A MAIN BOARD, COMPLETE (RV990D:AUS)
251 A-4733-097-A MAIN BOARD, COMPLETE (RV990D:E51,MX)
251 A-4733-101-A MAIN BOARD, COMPLETE (RV660D:PH,SP,MY)
251 A-4733-131-A MAIN BOARD, COMPLETE (RV660D:E3,E15)
251 A-4733-132-A MAIN BOARD, COMPLETE (RV660D:EA)
251 A-4733-136-A MAIN BOARD, COMPLETE (RV660D:E51)
251 A-4747-967-A MAIN BOARD, COMPLETE (RV990D:TH)
251 A-4747-972-A MAIN BOARD, COMPLETE (RV660D:TH)
251 A-4749-059-A MAIN BOARD, COMPLETE (RV660D:AUS)
252 4-225-252-01 CUSHION (FOOT)
253 1-688-365-12 LEAD PIN BOARD (RV660D)
254 A-4733-305-A TRANS BOARD, COMPLETE
(RV990D:EXCEPT E51,AUS,MX,TH)
254 A-4733-308-A TRANS BOARD, COMPLETE (RV990D:AUS)
254 A-4733-311-A TRANS BOARD, COMPLETE (RV990D:E51)
254 A-4733-314-A TRANS BOARD, COMPLETE (MX)
254 A-4747-999-A TRANS BOARD, COMPLETE (RV990D:TH)
254 A-4748-005-A TRANS BOARD, COMPLETE (RV660D:TH)
254 A-4749-048-A TRANS BOARD, COMPLETE
(RV660D:EXCEPT E51,AUS,TH)
254 A-4749-062-A TRANS BOARD, COMPLETE (RV660D:AUS)
254 A-4749-072-A TRANS BOARD, COMPLETE (RV660D:E51)
255 4-900-386-01 SCREW
