HT-S20R
11
Sony CONFIDENTIAL
For Authorized Servicer

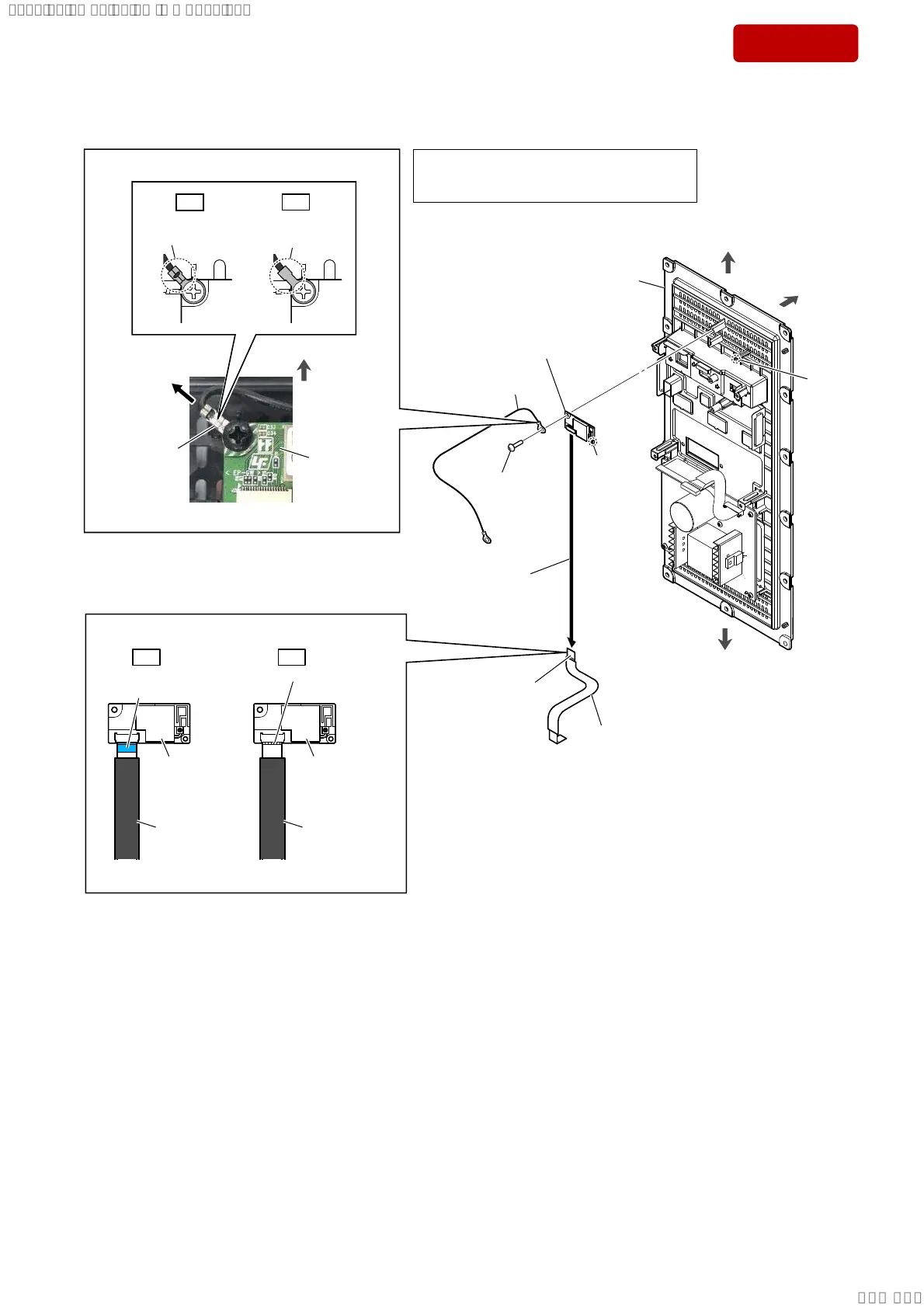

2-5. BT MODULE (SA-WS20R)
rear side
top side
bottom side
AMP block
3 screw
(BTP3 u 10)
2 FFC cable assy
1 Draw the FFC cable assy out
of the connector of BT module
in the direction of the arrow.
The opposite side
is terminal side.
4 ground wire
boss
hole
5 BT module (See Note 1)
Note 2:
When installing the BT module,
align the hole and boss.
,QVWDOODWLRQGLUHFWLRQIRUWKHJURXQGZLUHWHUPLQDO
ground wire
terminal
terminal
direction
BT module
top side
–)URQWYLHZ–
OK
NG
,QVWDOODWLRQGLUHFWLRQIRUWKH))&FDEOHDVV\
OK NG
The opposite side
is terminal side.
terminal side
Note 1:
When the BT module is replaced, refer to
“BLUETOOTH CONNECTION METHOD”
on page 6.
Caulking is
upward.
Caulking is
downward.
–)URQWYLHZ–
BT module BT module
FFC cable assy FFC cable assy
SYSSET
2021/02/1022:25:21(GMT+09:00)

Sony HT-S20R Specifications

General

Equalizer	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	400 W
Audio output channels	5.1 channels
Surround modes quantity	4
Wi-Fi	-
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Soundbar speaker RMS power	- W
Subwoofer type	Active subwoofer
Subwoofer connectivity	Wired
Product color	Black
Wall mountable	No
Cables included	AC
Package type	Box
Package depth	553 mm
Package width	843 mm
Package height	248 mm
Package weight	13000 g
AC input voltage	220 - 240 V
AC input frequency	50 / 60 Hz

Weight and Dimensions

Depth	86 mm
Width	760 mm
Height	52 mm
Soundbar weight	2000 g
Subwoofer depth	342 mm
Subwoofer width	192 mm
Subwoofer height	387 mm
Subwoofer weight	6900 g
