32
Sony CONFIDENTIAL
For Authorized Servicer

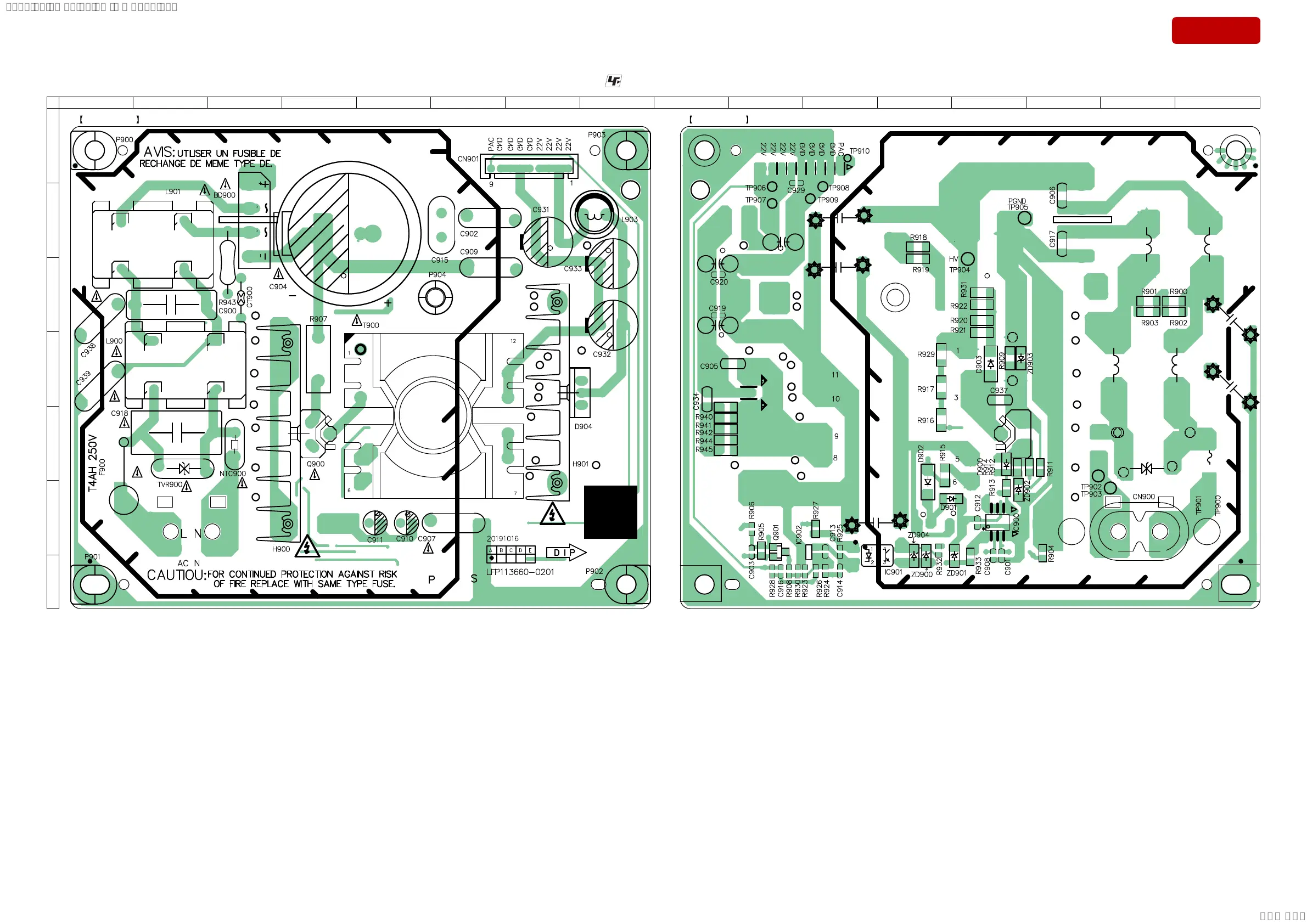

4-11. PRINTED WIRING BOARD - POWER Board (SA-WS20R) -
• : Uses unleaded solder.
• See page 25 for Circuit Boards Location.
A
B
C
D
E
F
G
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
POWER BOARD (COMPONENT SIDE) POWER BOARD (CONDUCTOR SIDE)
SYSSET
2021/02/1022:25:21(GMT+09:00)
