Sony HT-S20R User Manual

HT-S20R
9
Sony CONFIDENTIAL
For Authorized Servicer

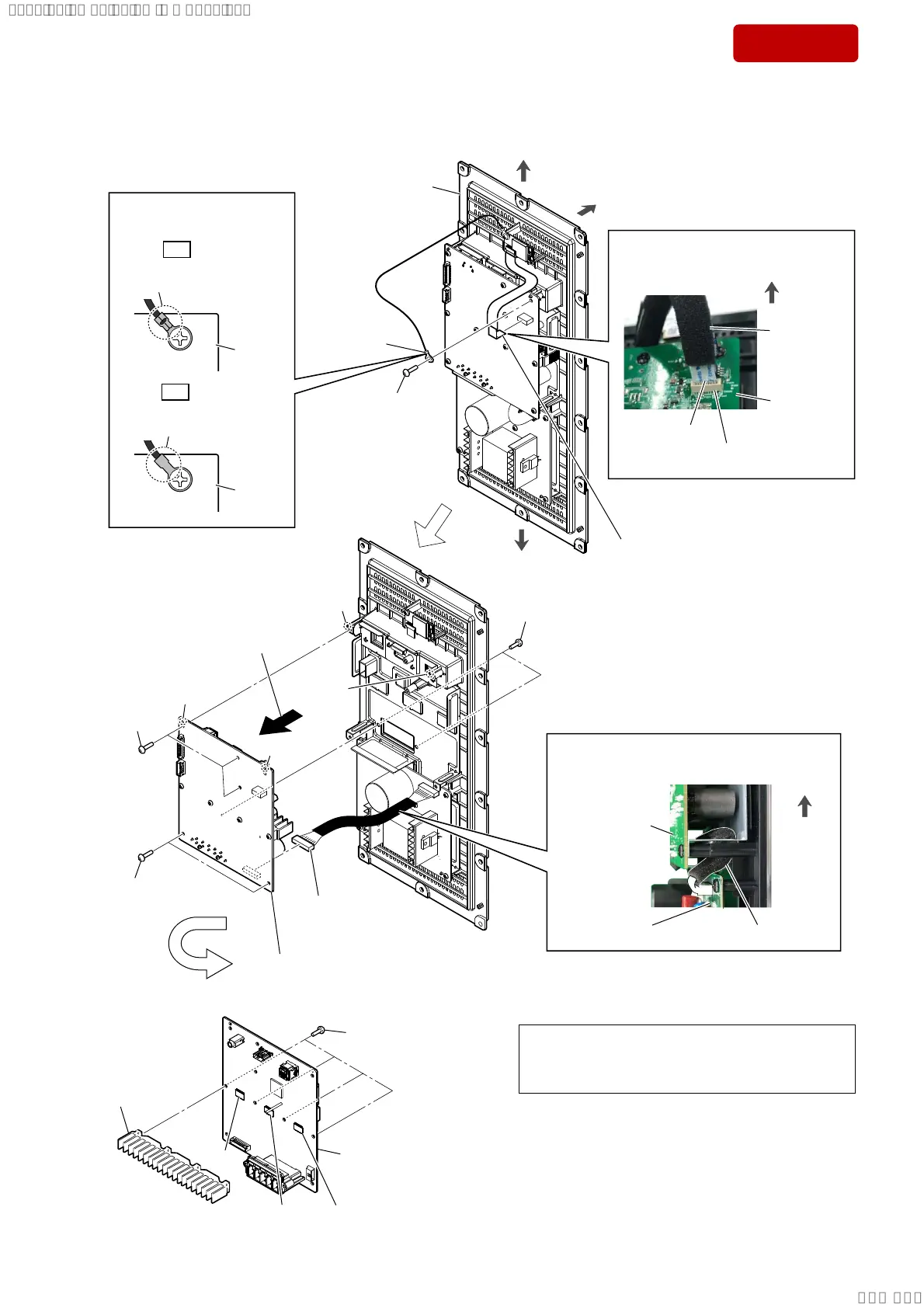

2-3. MAIN BOARD (SA-WS20R)
rear side
top side
bottom side
AMP block
7 MAIN board block
Note 1:
When installing the MAIN board block,
align the two holes and two bosses.
5 Remove the MAIN board block
in the direction of the arrow.
1 FFC cable assy
(CN200)
2 screw
(BTP3 u 10)
9 heatsink
3 ground wire
terminal
connector
(CN200)
FFC cable
assy
MAIN board
top side
terminal side
4 three screws
(BTP3 u 10)
4 two screws
(BTP3 u 10)
4 two screws
(BTP3 u 10)
6 POWER board
cable connector
(CN100)
boss
boss
hole
hole
8 four screws
(BVTP3 u 8)
Note 2:
When the MAIN board is replaced with a new part,
spread the compound for heat radiation to the touching
portion between the IC501, IC502, IC503 on the MAIN
board and the heatsink.
))&FDEOHDVV\VHWWLQJ
32:(5ERDUGFDEOHVHWWLQJ
IC501
IC503
IC502
0 MAIN board (See Note 2)
Note 3:
When the MAIN board is replaced, refer to
“BLUETOOTH CONNECTION METHOD”
on page 6.
POWER board
MAIN board
POWER board cable
top side
–6LGHYLHZ–
Turn around.
–%RWWRPYLHZ–
,QVWDOODWLRQGLUHFWLRQIRU
WKHJURXQGZLUHWHUPLQDO
NG
Caulking is
downward.
2.
Caulking is
upward.
MAIN
board
MAIN
board
SYSSET
2021/02/1022:25:21(GMT+09:00)

Sony HT-S20R Specifications

General

Equalizer	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	400 W
Audio output channels	5.1 channels
Surround modes quantity	4
Wi-Fi	-
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Soundbar speaker RMS power	- W
Subwoofer type	Active subwoofer
Subwoofer connectivity	Wired
Product color	Black
Wall mountable	No
Cables included	AC
Package type	Box
Package depth	553 mm
Package width	843 mm
Package height	248 mm
Package weight	13000 g
AC input voltage	220 - 240 V
AC input frequency	50 / 60 Hz

Weight and Dimensions

Depth	86 mm
Width	760 mm
Height	52 mm
Soundbar weight	2000 g
Subwoofer depth	342 mm
Subwoofer width	192 mm
Subwoofer height	387 mm
Subwoofer weight	6900 g
