Sony HT-S20R User Manual

40
HT-S20R
Sony CONFIDENTIAL
For Authorized Servicer
RP1
(See Note)
J
J
K
K
H
H
I
I
101
SP2
(See Note)
not supplied
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
SP3
(See Note)
SP4
(See Note)
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
#4
not supplied
(model number label)
102
103
105
104
105
105
105
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
not supplied
not supplied
not supplied

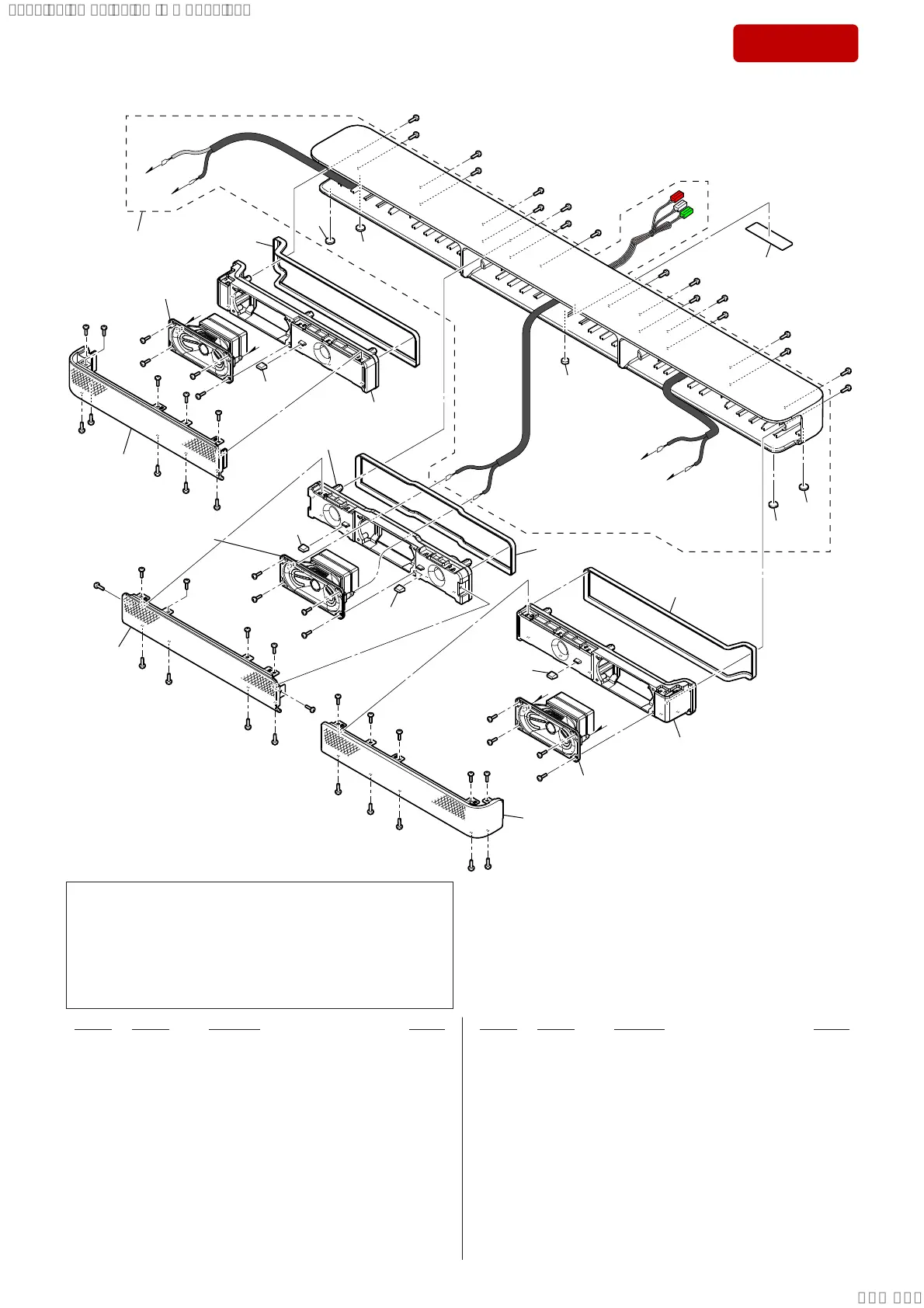

5-3. BAR SPEAKER SECTION (SS-S20R)
101 930100353 GRILLE ASSY_R (EB1, BAR) (Including Cushion)
(for R-ch)
102 930100352 GRILLE ASSY_C (EB1, BAR) (Including Cushion)
(for Center)
103 930100351 GRILLE ASSY_L (EB1, BAR) (Including Cushion)
(for L-ch)
104 469381201 FOOT, RUBBER (for Center)
105 459776001 CUSHION FOOT (1 piece) (for Left or Right)
RP1 930100350 REAR PANEL ASSY (EB1, BAR)
(Including Speaker connection cord, Cushion, Foot)
(Type C) (See Note)
RP1 930100535 REAR PANEL ASSY (EB1, BAR)
(Including Speaker connection cord, Cushion, Foot)
(Type V) (See Note)
SP2 930100354 SPK UNIT (EB1, BAR) (Full range speaker for L-ch)
(Type C) (See Note)
SP2 930100517 SPK UNIT (EB1, BAR) (Full range speaker for L-ch)
(Type V) (See Note)
SP3 930100354 SPK UNIT (EB1, BAR) (Full range speaker for Center)
(Type C) (See Note)
SP3 930100517 SPK UNIT (EB1, BAR) (Full range speaker for Center)
(Type V) (See Note)
SP4 930100354 SPK UNIT (EB1, BAR) (Full range speaker for R-ch)
(Type C) (See Note)
SP4 930100517 SPK UNIT (EB1, BAR) (Full range speaker for R-ch)
(Type V) (See Note)
#3 768587409 SCREW +BVTT 3X12 (S)
#4 768554619 SCREW +BTP 3X8 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.2
Note: The production country has been changed from China to Vietnam in
the midway of production. In this service manual, parts for Chinese
production are described to as “Type C” and parts for Vietnam pro-
duction are described to as “Type V”.
Parts for “Type C” and “Type V” are compatible. Therefore, it is no
problem which type of parts is used.
When distinguishing the type of SS-S20R, refer to “MODEL IDEN-
TIFICATION” on page 5.
SYSSET
2021/02/1022:25:21(GMT+09:00)

Sony HT-S20R Specifications

General

Equalizer	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	400 W
Audio output channels	5.1 channels
Surround modes quantity	4
Wi-Fi	-
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Soundbar speaker RMS power	- W
Subwoofer type	Active subwoofer
Subwoofer connectivity	Wired
Product color	Black
Wall mountable	No
Cables included	AC
Package type	Box
Package depth	553 mm
Package width	843 mm
Package height	248 mm
Package weight	13000 g
AC input voltage	220 - 240 V
AC input frequency	50 / 60 Hz

Weight and Dimensions

Depth	86 mm
Width	760 mm
Height	52 mm
Soundbar weight	2000 g
Subwoofer depth	342 mm
Subwoofer width	192 mm
Subwoofer height	387 mm
Subwoofer weight	6900 g
