Sony HT-S20R User Manual

39
HT-S20R
Sony CONFIDENTIAL
For Authorized Servicer

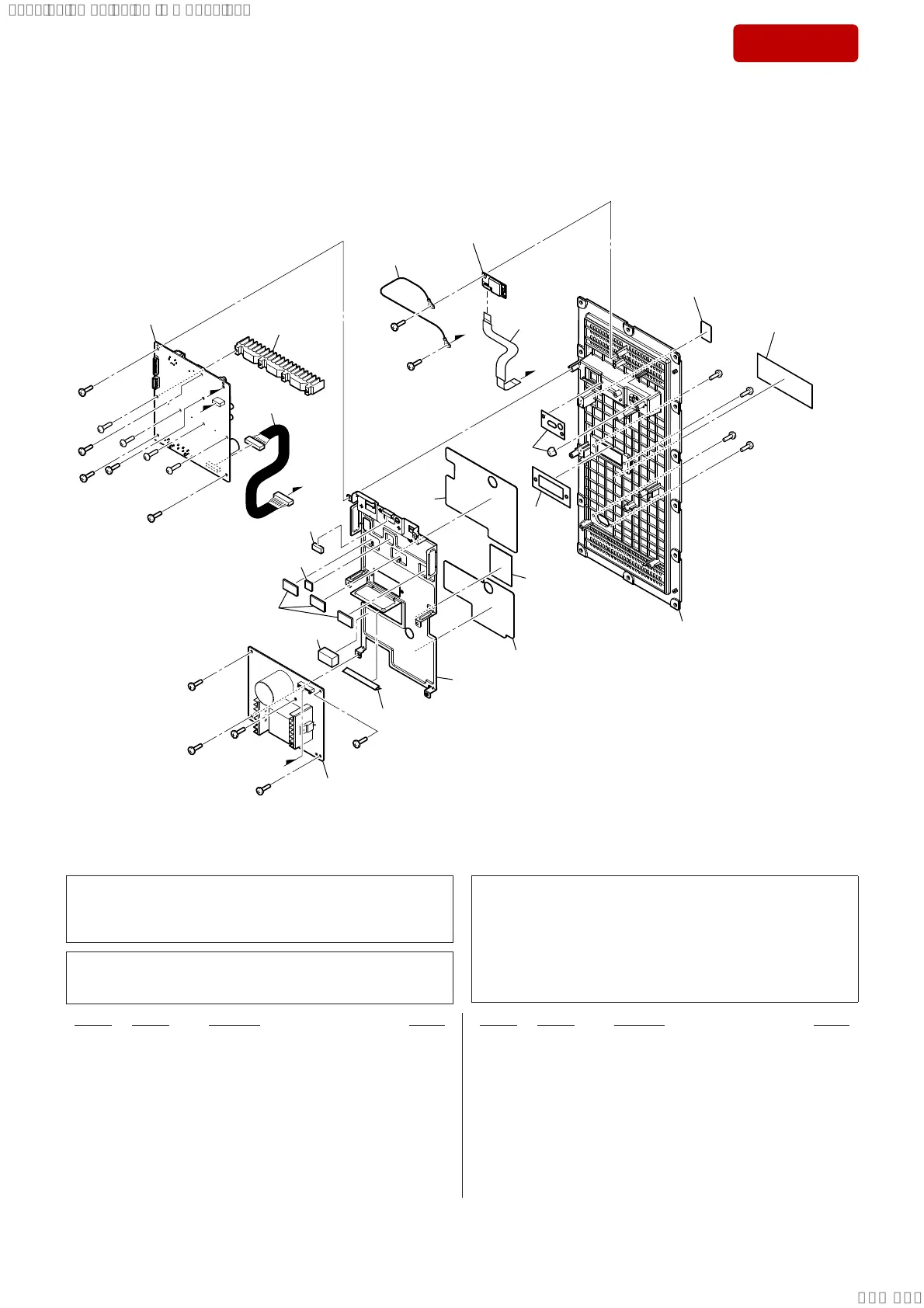

5-2. SUBWOOFER AMP SECTION (SA-WS20R)
F
E
E
F
G
G
not supplied
(model number label)
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#2
#2
#2
#2
FFC1
not supplied
BT1
(See Note 2)
not supplied
(heatsink)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not supplied
not supplied
51
not
supplied
52
(See Note 1, 2, 3)
Note 1: When the complete MAIN board (Ref. No. 52) is replaced with a
new part, spread the compound for heat radiation to the touching
portion between the IC501, IC502, IC503 on the MAIN board
and the heatsink.
Note 2: When the complete MAIN board (Ref. No. 52) or BT module
(Ref. No. BT1) is replaced, refer to “BLUETOOTH CONNEC-
TION METHOD” on page 6.
51 930100348 POWER BOARD, COMPLETE (IND, AF)
51 930100349 POWER BOARD, COMPLETE (AEP, UK, SP, AR, LA)
52 930100342 MAIN BOARD, COMPLETE (IND) (Type C)
(See Note 1, 2, 3)
52 930100343 MAIN BOARD, COMPLETE (AEP, UK) (Type C)
(See Note 1, 2, 3)
52 930100344 MAIN BOARD, COMPLETE (SP, AR, LA, AF)
(Type C) (See Note 1, 2, 3)
52 930100527 MAIN BOARD, COMPLETE (IND) (Type V)
(See Note 1, 2, 3)
52 930100528 MAIN BOARD, COMPLETE (AEP, UK) (Type V)
(See Note 1, 2, 3)
52 930100529 MAIN BOARD, COMPLETE (SP, AR, LA, AF)
(Type V) (See Note 1, 2, 3)
BT1 930100340 BT MODULE (EB1, SWF) (See Note 2)
FFC1 930100341 FFC CABLE ASSY (EB1, BT) (18 core) (with Cushion)
#1 768554719 SCREW +BTP 3X10 TYPE2 N-S
#2 768564671 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.4
Note 3: The production country has been changed from China to Vietnam
in the midway of production. In this service manual, parts for
Chinese production are described to as “Type C” and parts for
Vietnam production are described to as “Type V”.
Parts for “Type C” and “Type V” are compatible. Therefore, it is
no problem which type of parts is used.
When distinguishing the type of SA-WS20R, refer to “MODEL
IDENTIFICATION” on page 5.
SYSSET
2021/02/1022:25:21(GMT+09:00)

Sony HT-S20R Specifications

General

Equalizer	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	400 W
Audio output channels	5.1 channels
Surround modes quantity	4
Wi-Fi	-
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Soundbar speaker RMS power	- W
Subwoofer type	Active subwoofer
Subwoofer connectivity	Wired
Product color	Black
Wall mountable	No
Cables included	AC
Package type	Box
Package depth	553 mm
Package width	843 mm
Package height	248 mm
Package weight	13000 g
AC input voltage	220 - 240 V
AC input frequency	50 / 60 Hz

Weight and Dimensions

Depth	86 mm
Width	760 mm
Height	52 mm
Soundbar weight	2000 g
Subwoofer depth	342 mm
Subwoofer width	192 mm
Subwoofer height	387 mm
Subwoofer weight	6900 g
