38
HT-S20R
Sony CONFIDENTIAL
For Authorized Servicer
SECTION 5
EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so
they may have some diff erence from the
original one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when or-
dering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Exam-
ple:
KNOB, BALANCE (WHITE) . . . (RED)
 
Parts Color Cabinet’s Color

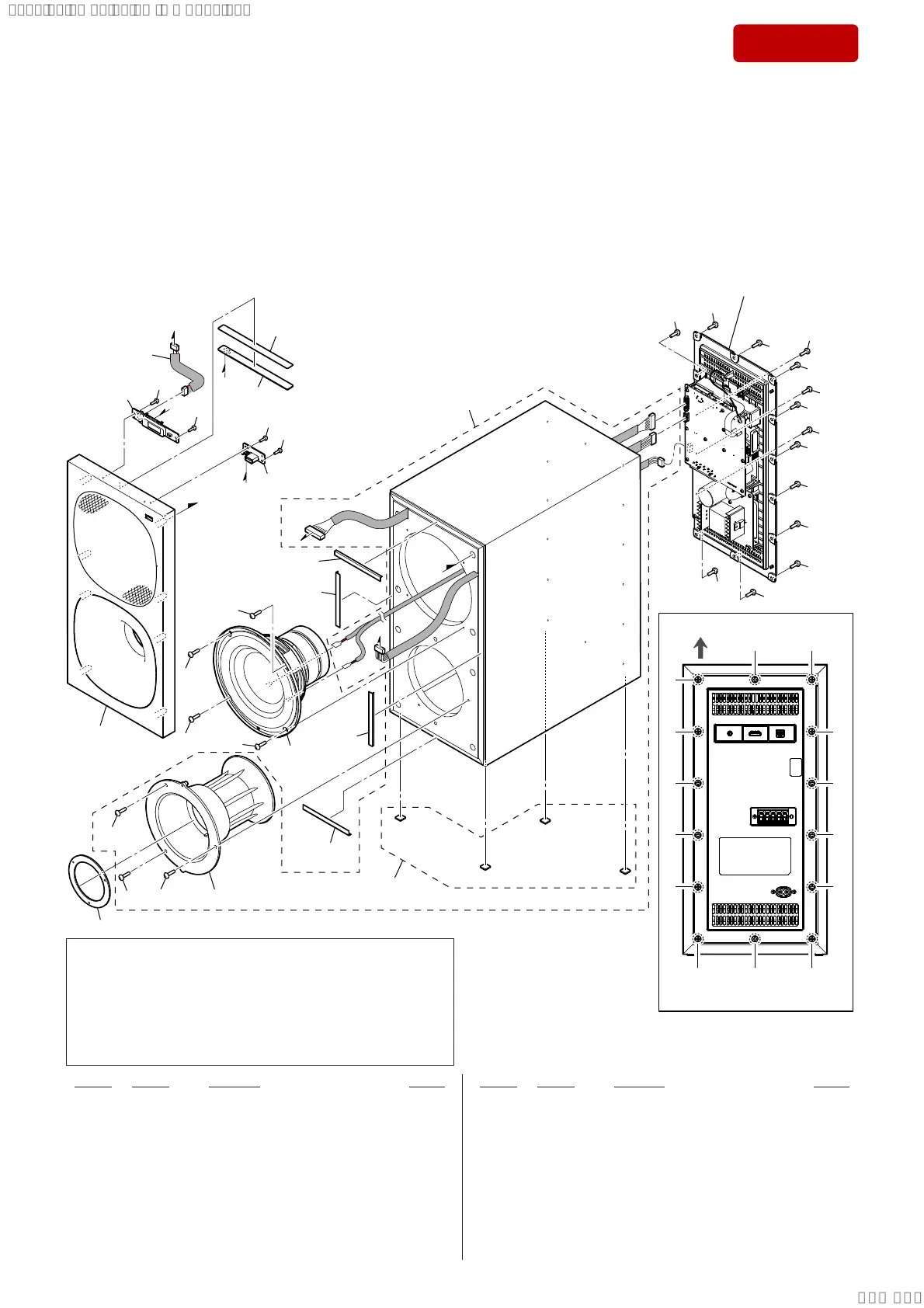

5-1. SUBWOOFER FRONT SECTION (SA-WS20R)
A
A
C
B
B
C
1
(See Note)
2
2
2
2
2
8
8
8
8
2
2
3
4
4
4
4
5
6
7
SP1
(See Note)
not supplied
not supplied
duct
not supplied
CAB1
(See Note)
subwoofer AMP section
(See page 39)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
D
D
top side
– Rear view –
2
22
2
2
2
2
2
2
2
2
2
2
1 930100335 FRONT PANEL ASSY (EB1, SWF) (Including Grille)
(Type C) (See Note)
1 930100515 FRONT PANEL ASSY (EB1, SWF) (Including Grille)
(Type V) (See Note)
2 487461452 SCREW (1) (3.5X20), TAPPING
3 930100339 USB BOARD, COMPLETE
4 930100413 SCREW +PTP2.5X6 (BLACK)
5 930100337 DISPLAY BOARD, COMPLETE
6 930100338 TOUCH KEY BOARD, COMPLETE
7 930100347 FOOT (10X10XT2, 4PCS) (4 pieces, 1 set)
8 930100838 EVA CUSHION (EB1, SWF)
CAB1 930100836 WOOD BOX ASSY1 (EB1, SWF) (Including Duct,
Connection cable, Foot) (Type C) (See Note)
CAB1 930100837 WOOD BOX ASSY2 (EB1, SWF) (Including Duct,
Connection cable, Foot) (Type V) (See Note)
SP1 930100336 SPK UNIT (EB1, SWF) (Subwoofer) (Type C)
(See Note)
SP1 930100516 SPK UNIT (EB1, SWF) (Subwoofer) (Type V)
(See Note)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: The production country has been changed from China to Vietnam in
the midway of production. In this service manual, parts for Chinese
production are described to as “Type C” and parts for Vietnam pro-
duction are described to as “Type V”.
Parts for “Type C” and “Type V” are compatible. Therefore, it is no
problem which type of parts is used.
When distinguishing the type of SA-WS20R, refer to “MODEL
IDENTIFICATION” on page 5.
Ver. 1.3
SYSSET
2021/02/1022:25:21(GMT+09:00)

Sony HT-S20R Specifications

General

Equalizer	Yes
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	400 W
Audio output channels	5.1 channels
Surround modes quantity	4
Wi-Fi	-
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Soundbar speaker RMS power	- W
Subwoofer type	Active subwoofer
Subwoofer connectivity	Wired
Product color	Black
Wall mountable	No
Cables included	AC
Package type	Box
Package depth	553 mm
Package width	843 mm
Package height	248 mm
Package weight	13000 g
AC input voltage	220 - 240 V
AC input frequency	50 / 60 Hz

Weight and Dimensions

Depth	86 mm
Width	760 mm
Height	52 mm
Soundbar weight	2000 g
Subwoofer depth	342 mm
Subwoofer width	192 mm
Subwoofer height	387 mm
Subwoofer weight	6900 g
