Setting Aspect Ratio with the MIC/WF REMOTE/TRUNK Connector
1. Set pin 17 of the MIC/WF REMOTE/TRUNK connector on the rear panel to low level.
2. Set pins 18 and 19 of the MIC/WF REMOTE/TRUNK connector according to the aspect ratio to be converted.
Pin 18
(ASPECT CTRL1)
Pin 19
(ASPECT CTRL2)
Aspect ratio
L H Squeeze (16 : 9)
H H Edge crop (4 : 3)
L L Set with S05:SD ASPECT of the SYSTEM OPERATION menu.
H L Letterbox (4 : 3)

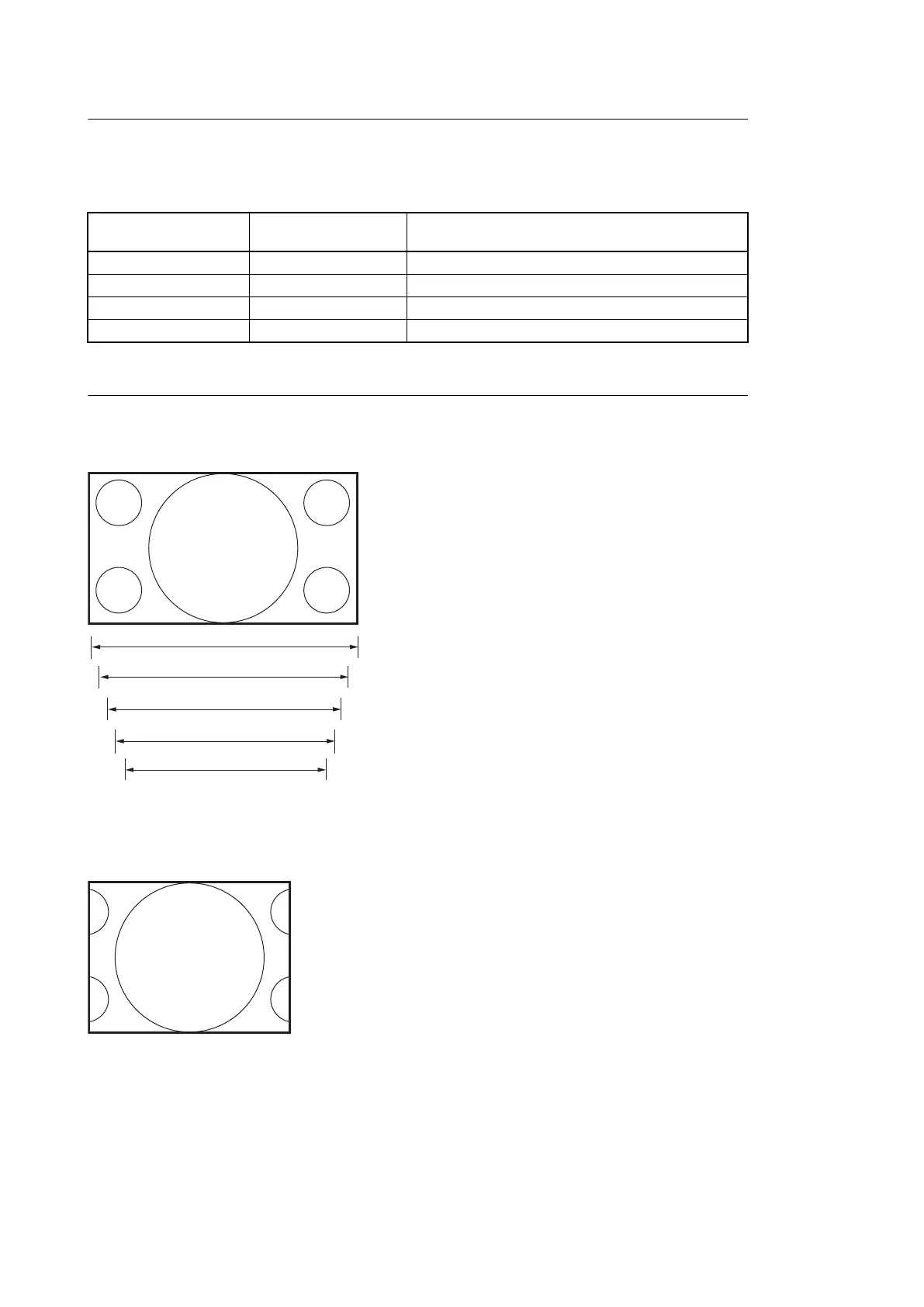

Examples of display
16 : 9 picture (picture from camera)
Horizontal cutting position of 16 : 9
Horizontal cutting position of 15 : 9
Horizontal cutting position of 14 : 9
Horizontal cutting position of 13 : 9
Horizontal cutting position of
4 : 3 (12 : 9)
Picture whose aspect ratio is converted (SD output)
Edge-crop
CROP POSITION can be changed.
HXCU-TX70
2-8
