4-9. AU-358 Board
Preparation
1. Remove the top cover. (Refer to“4-2. Top Cover”)
2. Remove the front assembly. (Refer to “4-3. Front Assembly”)
Procedure
1. Disconnect the harness from the connector (CN003) on the AU-358 board.
2. Disconnect the flexible flat cable from the connector (CN001) on the AU-358 board.
3. Remove the three screws to detach the AU-358 board.
4. Remove the rotary encoder knob.
5. Remove the two cushions.

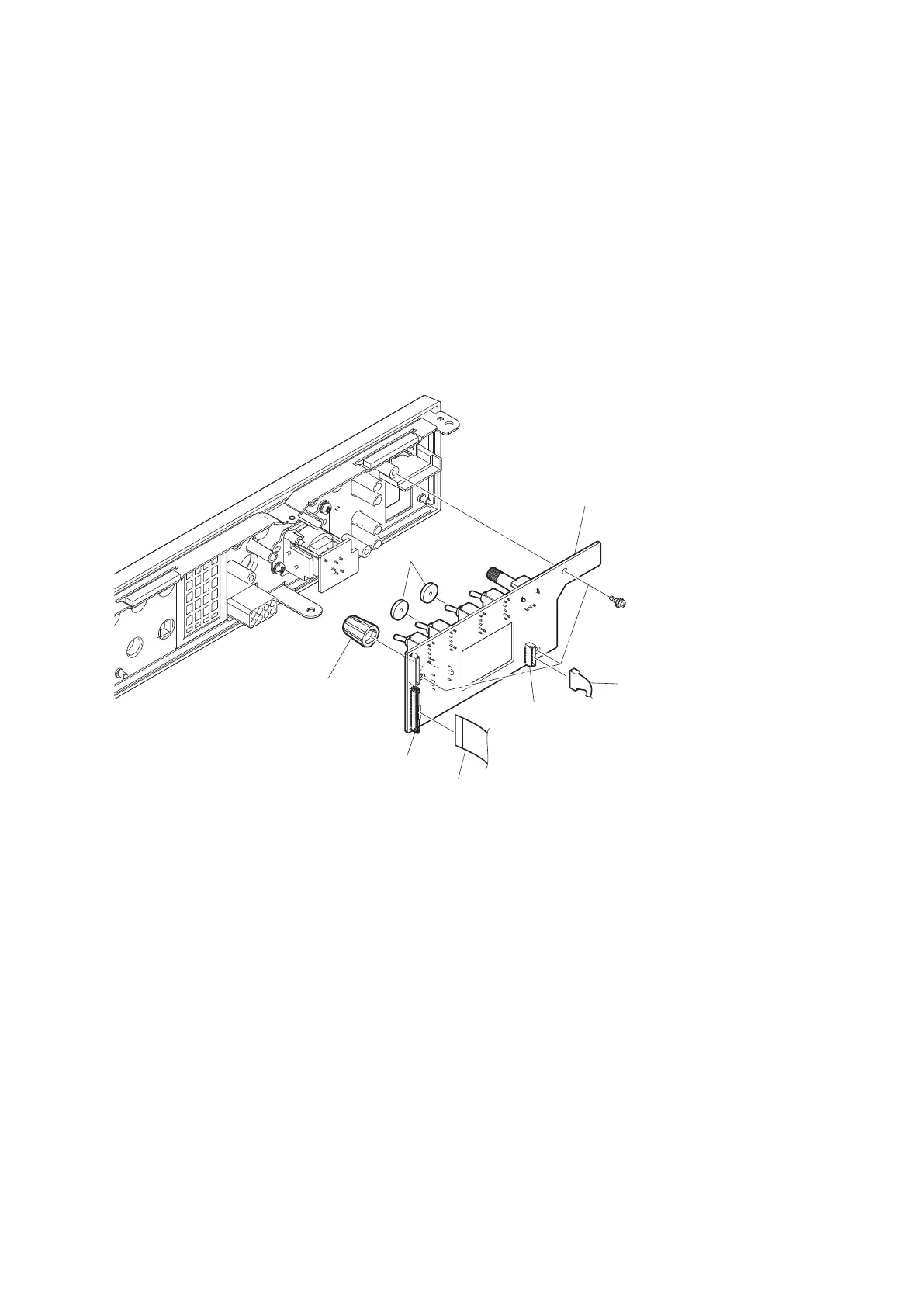

AU-358 board
PSW3 x 6
Harness
CN003
CN001
Flexible flat cable
Rotary encoder knob
Cushions
6. Install the removed parts by reversing the steps of removal.
