Sony HXR-NX5E User Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-3

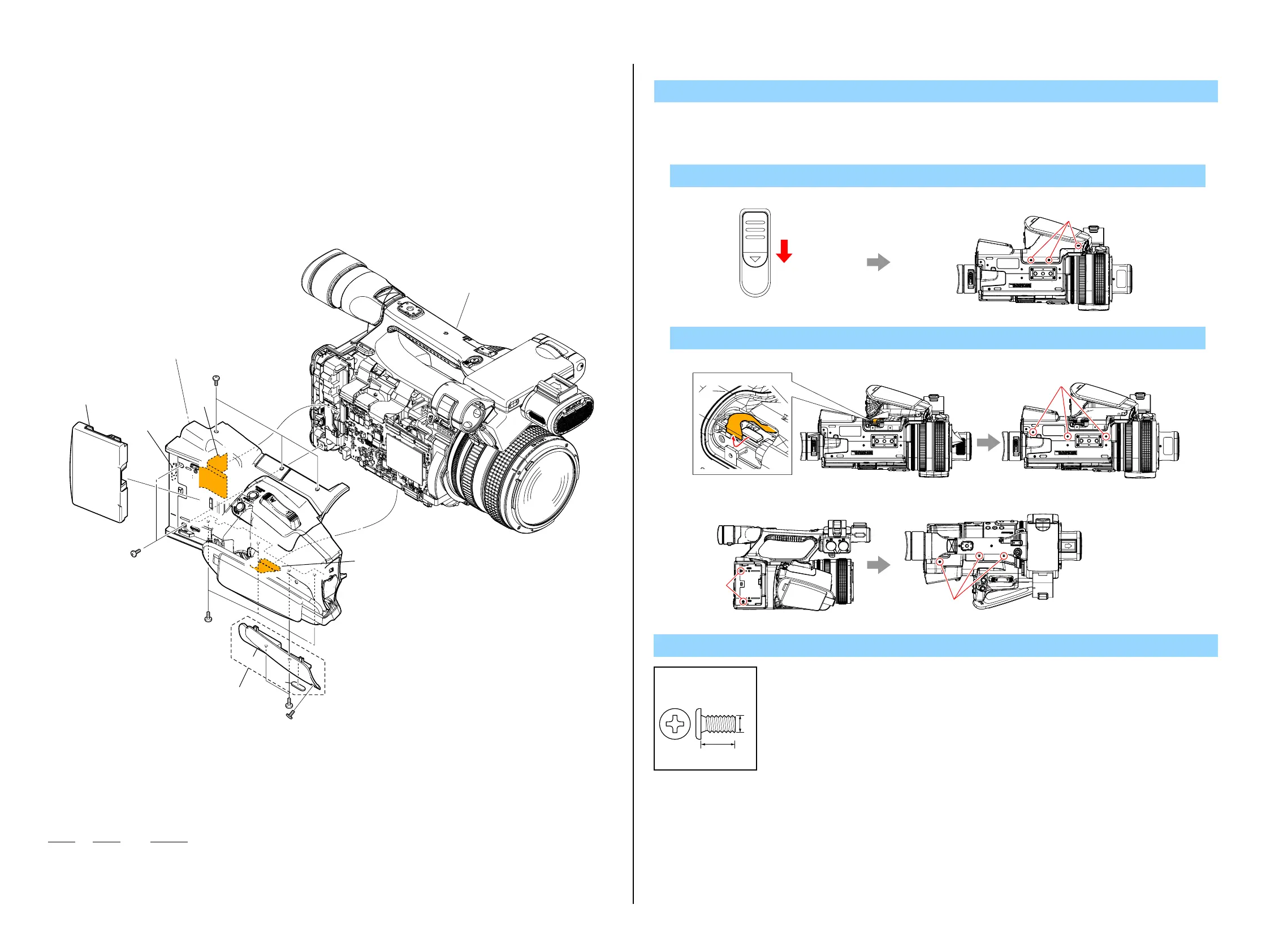

2-1. EXPLODED VIEWS
2-1-1. OVERALL SECTION
ns: not supplied
Ref. No. Part No. Description
1 4-165-238-01 COVER, EXT DUMMY
2 X-2515-789-1 COVER ASSY, GRIP
3 2-178-805-01 FOOT, RUBBER
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
DISASSEMBLY
1 Release button (1-1) → EXT Dummy Cover (1-2) → #49 X 3 → Grip Cover Assy (1-3)
→ Flexible Board → #49 X 8
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
1 Cabinet (L) Section-1
(See page 2-6)
Main Board Section
(See page 2-4)
#49
#49
#49
#49
#49
3
-1
-1
ns
1
1-2
2
1-3
1-1
#49
Bottom View
#49
#49
#49
Bottom ViewBottom View
Left View
Top View
1. Remove to numerical order 1 (1-1 to 1-3) in the left figure.
2. The meaning of the sign in left figure is as follows. Be careful when it removes.
◆-X: Flexible Board, Flat Cable, Harness
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01

Sony HXR-NX5E Specifications

General

Sensor type	CMOS
Total megapixels	1.037 MP
Optical sensor size	1/3 \
Filter size	72 mm
Digital zoom	1.5 x
Optical zoom	20 x
Image stabilizer	Yes
Focal length range	4.1 - 82 mm
Focal length (35mm film equivalent)	36.1 - 722 mm
Flash memory	- GB
Memory slots	1
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	MS PRO Duo, MS Pro-HG Duo, SDHC
Maximum memory card size	32 GB
Focus adjustment	Auto/Manual
Macro focusing range	0.01 - ∞/0.8 - ∞ m
Normal focusing range	0.8 - ∞ m
Light exposure modes	Auto, Manual
Camera shutter speed	1/25 s
Display diagonal	3.2 \
Display resolution (numeric)	921600 pixels
Viewfinder type	-
Viewfinder resolution	122688 pixels
Viewfinder screen size	0.45 \
Product color	Black
Camcorder type	Handheld camcorder
Minimum illumination	1.5 lx
Capture modes	LP
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080 pixels
Video formats supported	H.264, MPEG2, MPEG4
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Battery type	NP-F570, CR2025
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	6.4 h
Battery technology	Lithium
Video recording time	2.8 h
Minimum RAM	512 MB
Minimum processor	Intel Core 2 Duo 2.20GHz
Minimum storage drive space	100 MB
Compatible operating systems	Windows XP/Vista/7
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	342 mm
Width	173 mm
Height	187 mm
Weight	2200 g
