Sony HXR-NX5E User Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-9

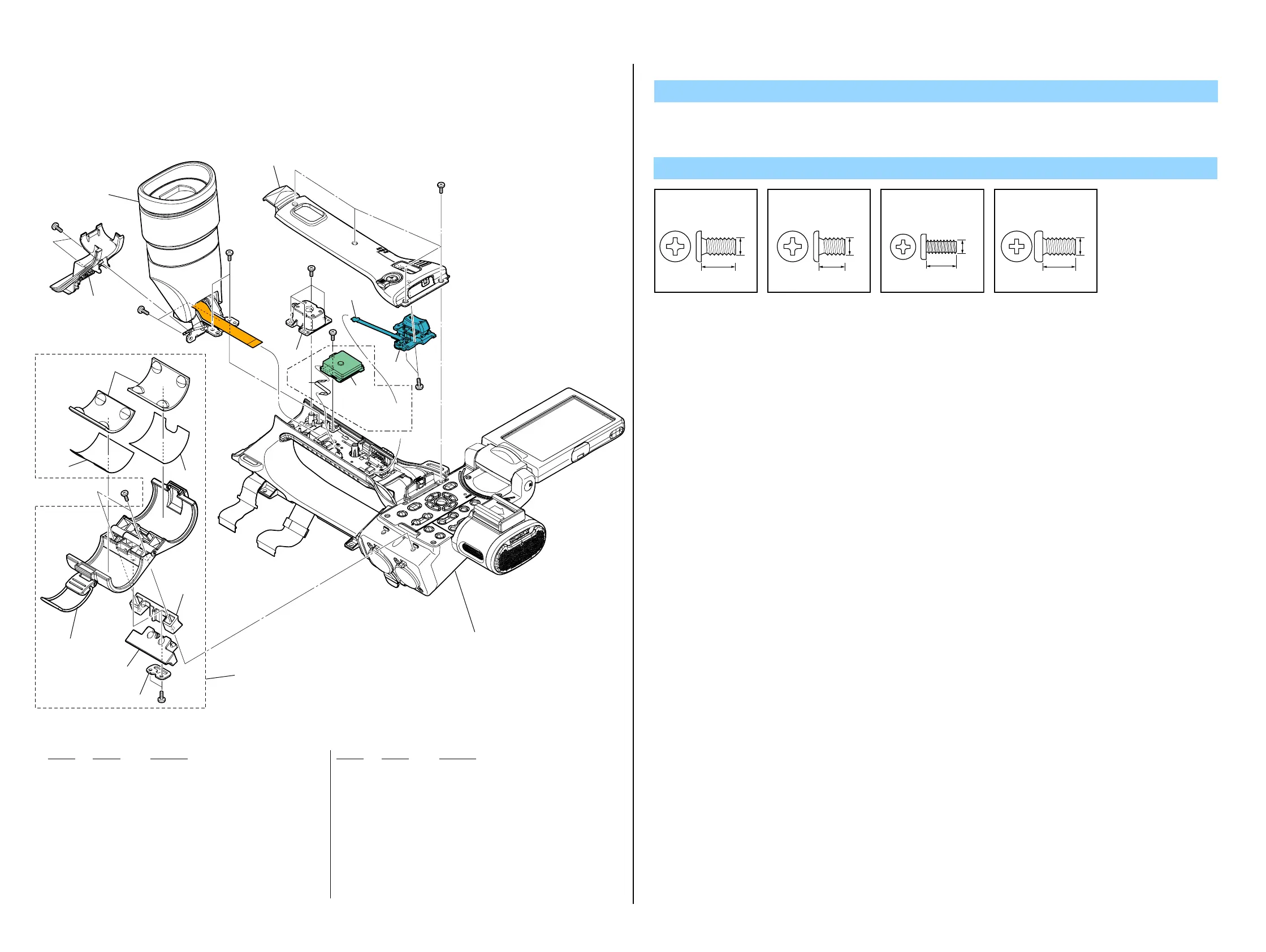

2-1-7. HANDLE SECTION-1
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
301 X-2342-570-1 HOLDER (93000) ASSY, MICROPHONE
302 3-284-080-01 RUBBER, MICROPHONE
303 3-284-081-01 SHEET, RUBBER ADHESIVE
304 3-284-075-02 COVER, MICROPHONE HOLDER RUBBER
305 4-119-861-01 RUBBER (93000), HOLDER
306 X-2515-770-1 COVER (94000) ASSY, (REAR)
307 X-2515-769-1 CABINET (94000) ASSY, (UPPER)
308 3-288-538-01 SHOE, REAR (COLD)
309 A-1753-082-A GP940 ASSY (EXCEPT HXR-NX5M/HXR-NX5C)
310 1-837-242-11 CABLE, FLEXIBLE FLAT (FFC-202)
(EXCEPT HXR-NX5M/HXR-NX5C)
311 1-480-298-11 SWITCH BLOCK, CONTROL (GZ92000)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#119 7-627-556-58 SCREW +P 2.6X5
Screw
Except
HXR-NX5M/
HXR-NX5C
Handle section-2
(See page 2-10)
#53
#119
#49
#50
#49
#49
#49
301
302
303
304
305
303
EVF section
(See page 2-13)
ns
ns
307
311
308
309
310
#49
#49
306

#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
DISASSEMBLY
1. The meaning of the sign in left figure is as follows. Be careful when it removes.
◆-X: Flexible Board, Flat Cable, Harness

Sony HXR-NX5E Specifications

General

Sensor type	CMOS
Total megapixels	1.037 MP
Optical sensor size	1/3 \
Filter size	72 mm
Digital zoom	1.5 x
Optical zoom	20 x
Image stabilizer	Yes
Focal length range	4.1 - 82 mm
Focal length (35mm film equivalent)	36.1 - 722 mm
Flash memory	- GB
Memory slots	1
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	MS PRO Duo, MS Pro-HG Duo, SDHC
Maximum memory card size	32 GB
Focus adjustment	Auto/Manual
Macro focusing range	0.01 - ∞/0.8 - ∞ m
Normal focusing range	0.8 - ∞ m
Light exposure modes	Auto, Manual
Camera shutter speed	1/25 s
Display diagonal	3.2 \
Display resolution (numeric)	921600 pixels
Viewfinder type	-
Viewfinder resolution	122688 pixels
Viewfinder screen size	0.45 \
Product color	Black
Camcorder type	Handheld camcorder
Minimum illumination	1.5 lx
Capture modes	LP
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080 pixels
Video formats supported	H.264, MPEG2, MPEG4
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Battery type	NP-F570, CR2025
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	6.4 h
Battery technology	Lithium
Video recording time	2.8 h
Minimum RAM	512 MB
Minimum processor	Intel Core 2 Duo 2.20GHz
Minimum storage drive space	100 MB
Compatible operating systems	Windows XP/Vista/7
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	342 mm
Width	173 mm
Height	187 mm
Weight	2200 g
