Sony HXR-NX5E User Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-4

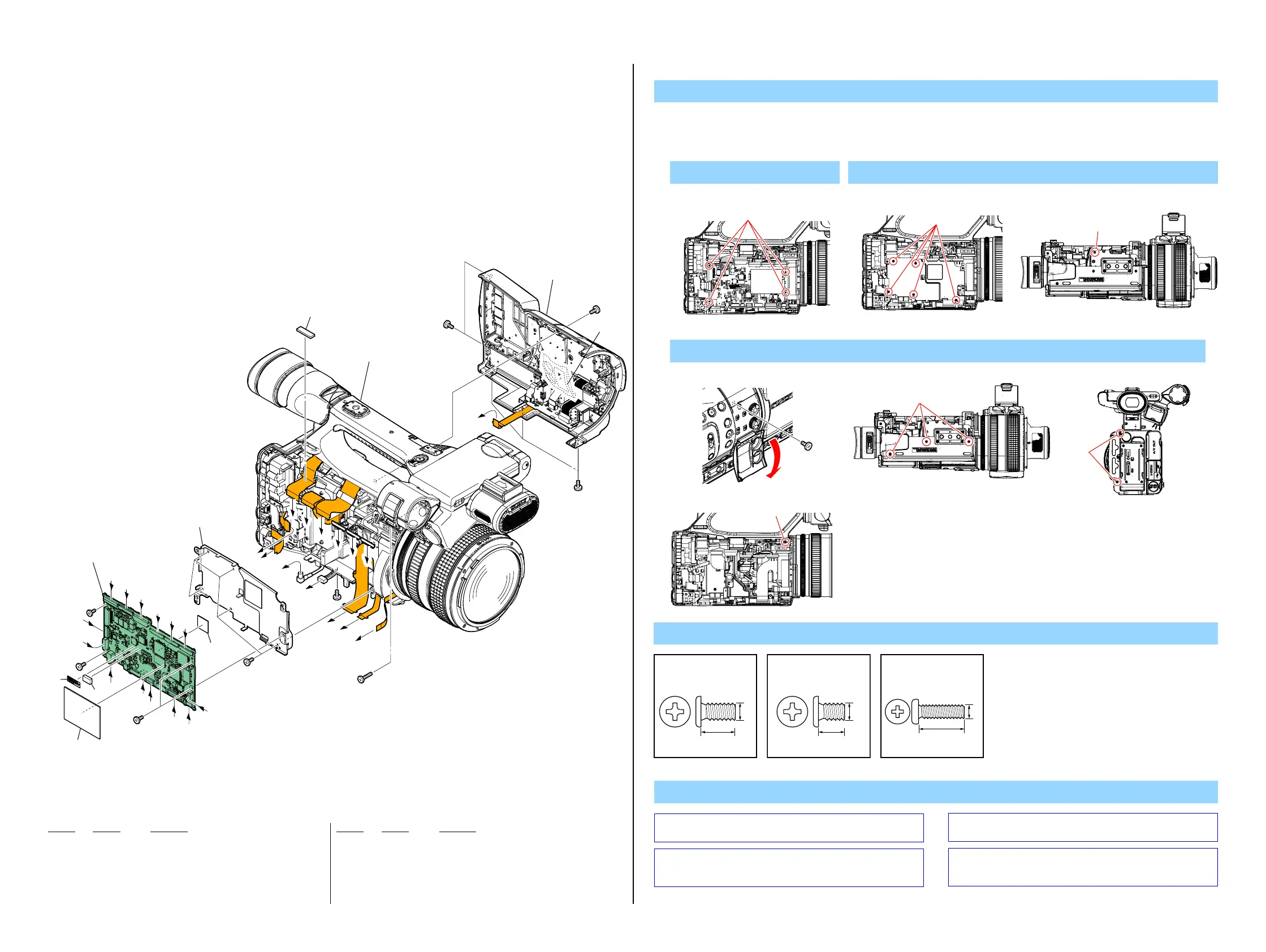

2-1-2. MAIN BOARD SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
* 51 4-165-223-01 SHEET (4535T1), RADIATION
* 52 4-170-751-01 SPACER (A), VC
* 53 4-165-995-01 LABEL, FUSE
54 A-1758-578-A VC-582 BOARD, COMPLETE (SERVICE) (Note 1)
* 55 4-166-044-01 SPACER (B), VC
* 56 4-165-252-01 FRAME, MAIN
* 57 4-175-181-01 SHEET (FP1152), WATERPROOF
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#154 7-627-556-97 SCREW, PRECISION +P2.6X8 TYPE 1
1. Remove to numerical order (2 to 4) in the left figure.
2. The meaning of the sign in left figure is as follows. Be careful when it removes.
◆-X: Flexible Board, Flat Cable, Harness
DISASSEMBLY
VC-582
VC-582
E
E
E
E
E
E
F
E
D
C
L
K
J
H
G
I
B
A
I
L
H
J
K
A
B
C
D
E
F
G
M
N
M
N
4
#50
#50
#49
#49
#49
#49
#154
#49
#50
2 54
(Note 1)
3 56
51
52
53
55
57
4
Cabinet (R) Section
(Note 2)
(See page 2-8)
Chassis Section
(See page 2-5)
2 #50 X 4 3 #49 X 6
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
VC-582
VC-582
#50
Left View
#49
#49
Left View Bottom View
4 Open Lid AL (4) → #49 X 6 → #154 X 1
#154
#49
Left View
Back View
#49
#49
Bottom ViewRight View
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
8.0
2.6
#154: M2.6 X 8.0
(Silver)
7-627-556-97
Note
Note 1: Refer to “Assembly-8: How to arrange Harness (Coaxial
Cable)” when installing.
Note 1:
 

Note 2: Refer to “Assembly-7: On installation of the Cabinet (R)
section, adjust the position of the ND filter switch” when
installing.
Note 2:
 


The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01

Sony HXR-NX5E Specifications

General

Sensor type	CMOS
Total megapixels	1.037 MP
Optical sensor size	1/3 \
Filter size	72 mm
Digital zoom	1.5 x
Optical zoom	20 x
Image stabilizer	Yes
Focal length range	4.1 - 82 mm
Focal length (35mm film equivalent)	36.1 - 722 mm
Flash memory	- GB
Memory slots	1
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	MS PRO Duo, MS Pro-HG Duo, SDHC
Maximum memory card size	32 GB
Focus adjustment	Auto/Manual
Macro focusing range	0.01 - ∞/0.8 - ∞ m
Normal focusing range	0.8 - ∞ m
Light exposure modes	Auto, Manual
Camera shutter speed	1/25 s
Display diagonal	3.2 \
Display resolution (numeric)	921600 pixels
Viewfinder type	-
Viewfinder resolution	122688 pixels
Viewfinder screen size	0.45 \
Product color	Black
Camcorder type	Handheld camcorder
Minimum illumination	1.5 lx
Capture modes	LP
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080 pixels
Video formats supported	H.264, MPEG2, MPEG4
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Battery type	NP-F570, CR2025
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	6.4 h
Battery technology	Lithium
Video recording time	2.8 h
Minimum RAM	512 MB
Minimum processor	Intel Core 2 Duo 2.20GHz
Minimum storage drive space	100 MB
Compatible operating systems	Windows XP/Vista/7
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	342 mm
Width	173 mm
Height	187 mm
Weight	2200 g
