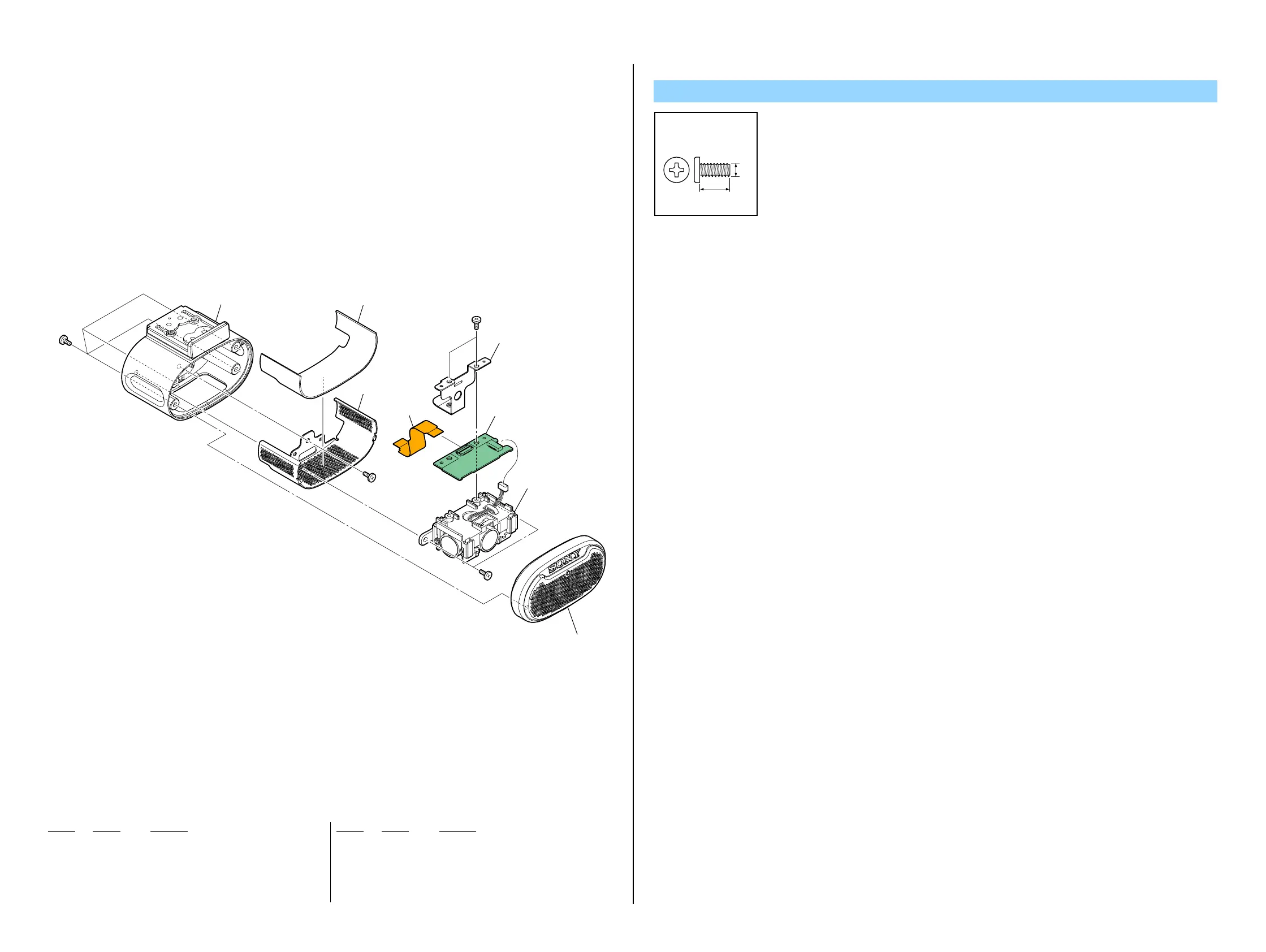

2-1-13. MICROPHONE SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
601 X-2515-772-1 GRILLE (94000) ASSY, MICROPHONE
602 A-1752-117-A MA-459 BOARD, COMPLETE
603 1-879-857-11 FP-1158 FLEXIBLE BOARD
* 604 4-165-302-01 SHEET METAL, MICROPHONE
605 4-165-303-01 GRILLE (REAR), MICROPHONE
606 4-165-304-01 SCREEN (REAR), WINDOW
607 4-165-301-01 CABINET (REAR), MICROPHONE
MIC901 1-542-808-11 MICROPHONE
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
#53
#53
#53
#53
MIC901
601
602603
604
605
607
606
MA-459
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
