Sony HXR-NX5E User Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-13

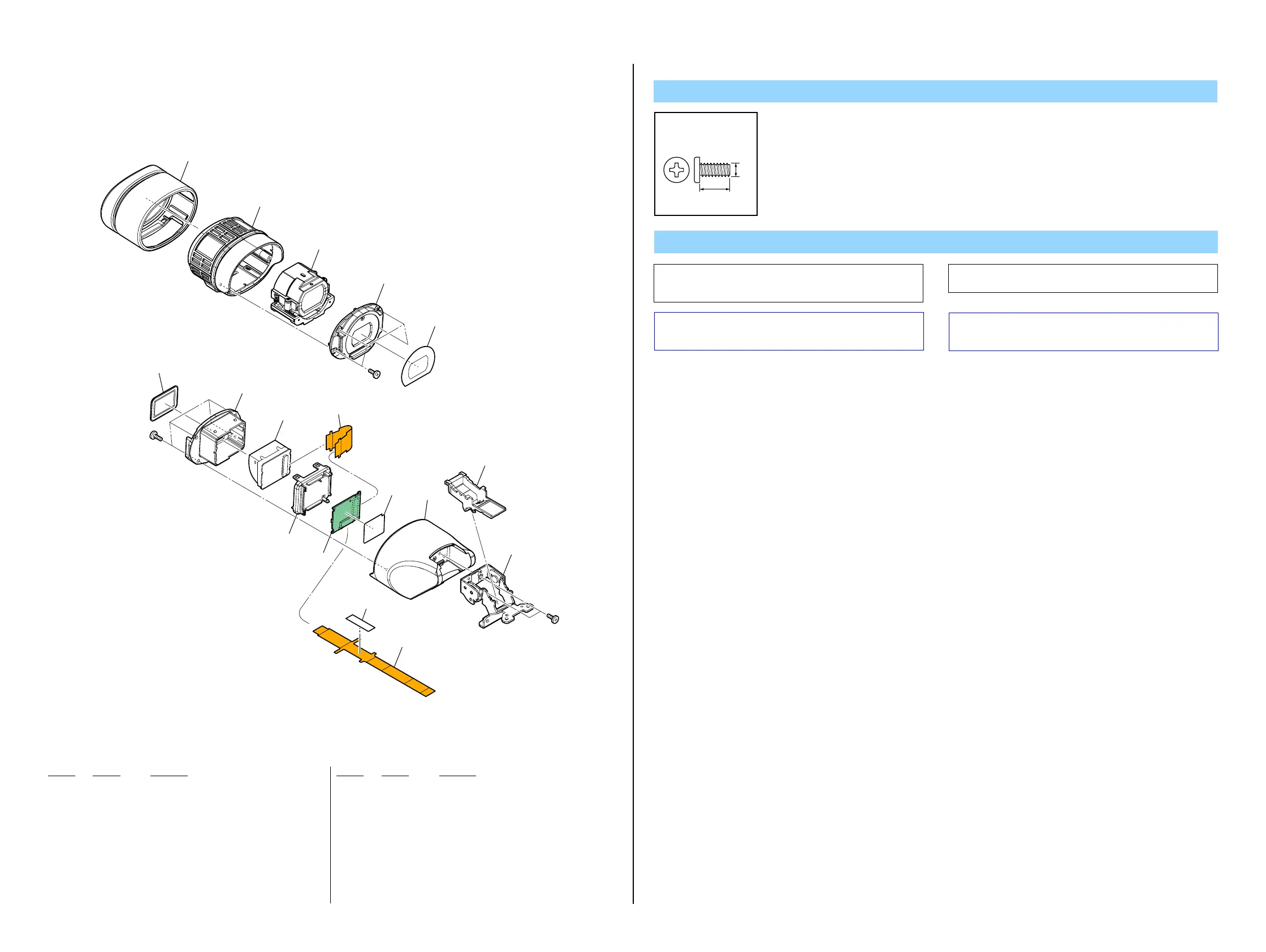

2-1-11. EVF SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
501 4-119-301-01 EYE CUP (SMALL)
502 X-2320-885-1 EYE CUP (93000) ASSY
503 X-2320-861-1 LENS ASSY, VF (Note)
504 4-119-302-01 LID, EYE CUP CABINET
505 4-119-303-01 COVER, EYE CUP CABINET LID
506 3-288-591-01 SHEET, VF PROTECTION
507 3-288-585-01 CASE, PANEL
508 1-873-733-11 FP-776 FLEXIBLE BOARD
509 3-288-586-01 LID, PANEL
510 A-1752-131-A VF-179 BOARD, COMPLETE
* 511 3-299-948-01 SHEET (UU)
512 1-879-859-11 FP-1160 FLEXIBLE BOARD
513 CAUTION TAPE, VF
514 X-2515-771-1 CABINET (94000) ASSY, VF
* 515 4-165-332-01 RETAINER, VF FLEXIBLE
516 X-2515-764-1 TILT ASSY, VF
LCD902 1-802-560-31 LCD MODULE
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
#53
#53
LCD902
#5
3
501
502
503
504
505
506
507
509
508
510
511
512
515
516
514
513
(16mm × 6.4mm)
(Note)
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Note
Caution :
For the part of 513, cut NON WOVEN (T0.25) (3-076-631-01) into
the desired length and use it.
Caution:

Note:
 


Note: Refer to “Assembly-1: Confirm the Diopter Adjustment
Lever is on the left side when installing the VF Lens Assy”
when installing.
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01

Sony HXR-NX5E Specifications

General

Sensor type	CMOS
Total megapixels	1.037 MP
Optical sensor size	1/3 \
Filter size	72 mm
Digital zoom	1.5 x
Optical zoom	20 x
Image stabilizer	Yes
Focal length range	4.1 - 82 mm
Focal length (35mm film equivalent)	36.1 - 722 mm
Flash memory	- GB
Memory slots	1
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	MS PRO Duo, MS Pro-HG Duo, SDHC
Maximum memory card size	32 GB
Focus adjustment	Auto/Manual
Macro focusing range	0.01 - ∞/0.8 - ∞ m
Normal focusing range	0.8 - ∞ m
Light exposure modes	Auto, Manual
Camera shutter speed	1/25 s
Display diagonal	3.2 \
Display resolution (numeric)	921600 pixels
Viewfinder type	-
Viewfinder resolution	122688 pixels
Viewfinder screen size	0.45 \
Product color	Black
Camcorder type	Handheld camcorder
Minimum illumination	1.5 lx
Capture modes	LP
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080 pixels
Video formats supported	H.264, MPEG2, MPEG4
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Battery type	NP-F570, CR2025
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	6.4 h
Battery technology	Lithium
Video recording time	2.8 h
Minimum RAM	512 MB
Minimum processor	Intel Core 2 Duo 2.20GHz
Minimum storage drive space	100 MB
Compatible operating systems	Windows XP/Vista/7
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	342 mm
Width	173 mm
Height	187 mm
Weight	2200 g
