Sony HXR-NX5E User Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-14

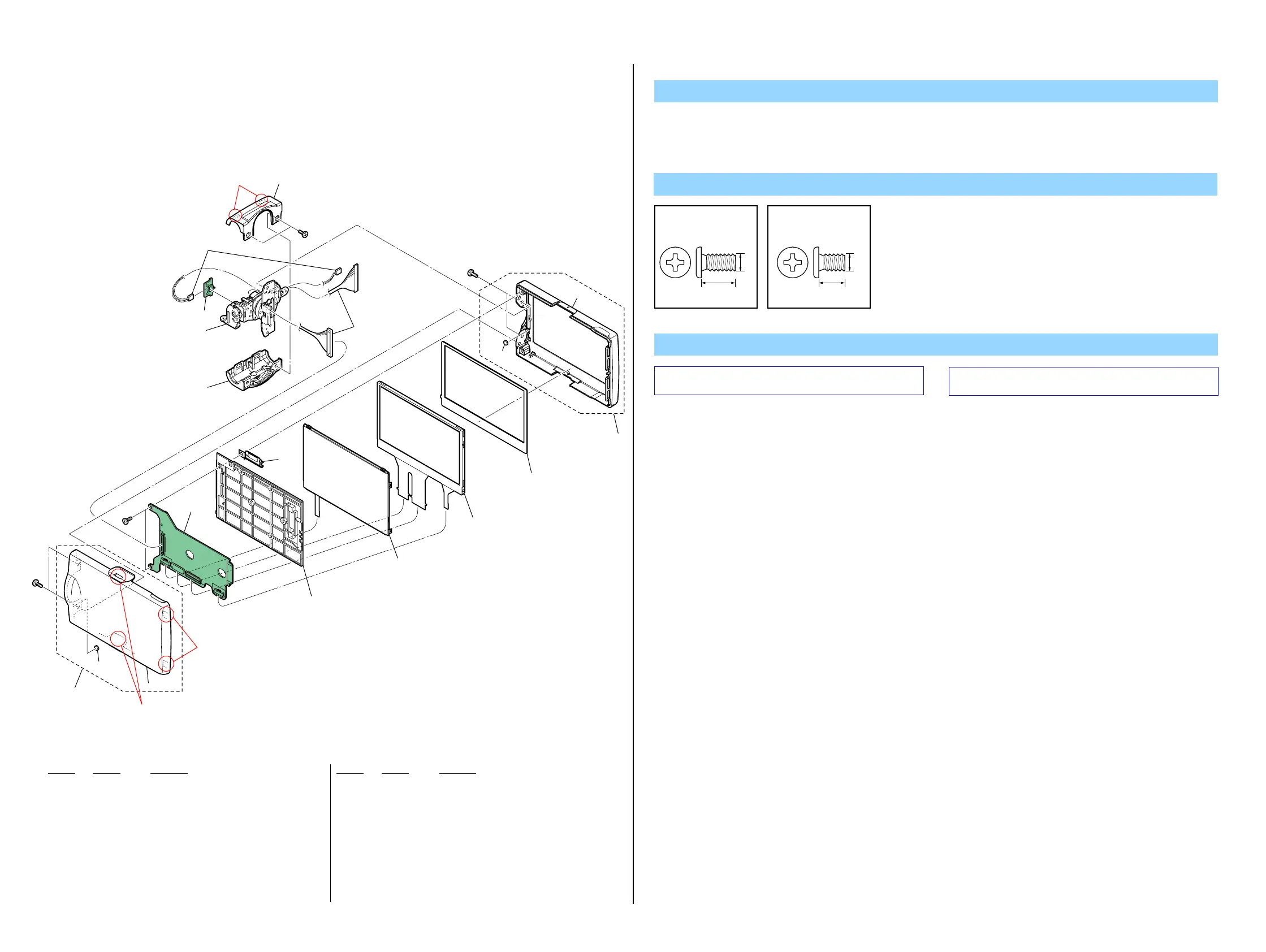

2-1-12. LCD SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
551 X-2515-773-1 CABINET (UPPER (94000)) ASSY
552 A-1752-128-A PD-395 BOARD, COMPLETE
* 553 4-165-311-01 FRAME, BL
554 3-288-565-11 CUSHION, PANEL
555 X-2515-774-1 LOWER (94000) ASSY, CABINET
556 3-288-566-01 CABINET (T), PANEL HINGE
557 1-963-030-21 HARNESS (SW-116) (Note)
558 A-1752-122-A HT-003 BOARD, COMPLETE
559 X-2342-571-1 HINGE (TYPE 07KAI) ASSY, PANEL
560 1-965-937-21 HARNESS (COAXIAL CABLE)
561 3-288-567-01 CABINET (B), PANEL HINGE
D901 1-480-358-11 BLOCK, LIGHT GUIDE PLATE (3.2)
LCD901 A-1734-177-A TP BLOCK ASSY (32ESHGU09)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
Screw
PD-395
#49
#49
#49
#50
D901
ns
ns
ns
ns
ns
551
552
553
554
555
556
559
557
(Note)
558
561
560
LCD901
Boss
Claw
Claw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
1. { points in left figure shows claws. Be careful when it removes.
DISASSEMBLY
Note
Note:


Note: Refer to “Assembly-2: How to arrange Harnesses
(SW-116)” when installing.
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01

Sony HXR-NX5E Specifications

General

Sensor type	CMOS
Total megapixels	1.037 MP
Optical sensor size	1/3 \
Filter size	72 mm
Digital zoom	1.5 x
Optical zoom	20 x
Image stabilizer	Yes
Focal length range	4.1 - 82 mm
Focal length (35mm film equivalent)	36.1 - 722 mm
Flash memory	- GB
Memory slots	1
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	MS PRO Duo, MS Pro-HG Duo, SDHC
Maximum memory card size	32 GB
Focus adjustment	Auto/Manual
Macro focusing range	0.01 - ∞/0.8 - ∞ m
Normal focusing range	0.8 - ∞ m
Light exposure modes	Auto, Manual
Camera shutter speed	1/25 s
Display diagonal	3.2 \
Display resolution (numeric)	921600 pixels
Viewfinder type	-
Viewfinder resolution	122688 pixels
Viewfinder screen size	0.45 \
Product color	Black
Camcorder type	Handheld camcorder
Minimum illumination	1.5 lx
Capture modes	LP
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080 pixels
Video formats supported	H.264, MPEG2, MPEG4
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Battery type	NP-F570, CR2025
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	6.4 h
Battery technology	Lithium
Video recording time	2.8 h
Minimum RAM	512 MB
Minimum processor	Intel Core 2 Duo 2.20GHz
Minimum storage drive space	100 MB
Compatible operating systems	Windows XP/Vista/7
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	342 mm
Width	173 mm
Height	187 mm
Weight	2200 g
