Sony HXR-NX5E User Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-6

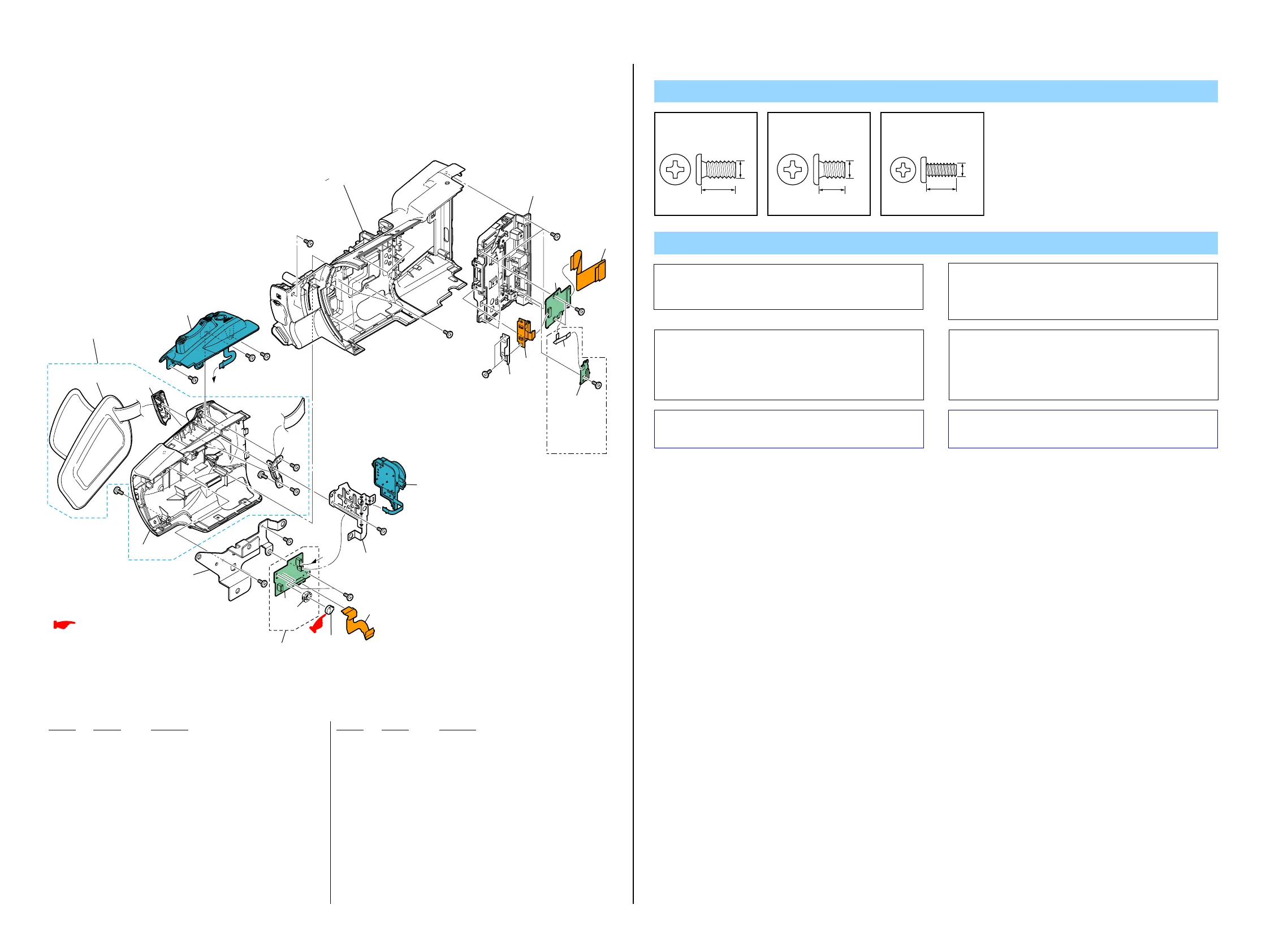

2-1-4. CABINET (L) SECTION-1
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
151 A-1752-113-A GC-012 BOARD, COMPLETE
152 1-879-860-11 FP-1161 FLEXIBLE BOARD
* 153 4-165-326-01 FRAME, PS
154 1-487-447-11 SWITCH BLOCK, CONTROL (PS94000)
* 155 4-165-331-01 BRACKET (REAR), GRIP BELT
156
X-2515-778-1 CABINET (G (94000)) ASSY
157 2-178-804-01 BELT, GRIP
* 158 4-165-330-01 HOLDER, GRIP BELT
159 1-487-448-11 SWITCH BLOCK, CONTROL (PZ94000)
160 X-2515-779-1 CABINET (S (94000)) ASSY
(EXCEPT HXR-NX5M/HXR-NX5C)
160 X-2515-788-1 CABINET (S (94003)) ASSY
(HXR-NX5M/HXR-NX5C)
161 1-879-855-11 FP-1156 FLEXIBLE BOARD
162 A-1752-127-A AS-063 BOARD, COMPLETE
163 A-1752-124-A GS-010 BOARD, COMPLETE
(EXCEPT HXR-NX5M/HXR-NX5C) (Note 2)
164 1-837-242-11 CABLE, FLEXIBLE FLAT (FFC-202)
(EXCEPT HXR-NX5M/HXR-NX5C)
165 A-1752-135-A FP-1151 FLEXIBLE BOARD, COMPLETE
* 166 4-165-336-01 RETAINER, EXT CONNECTOR (M)
0 BT2001 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note 1)
0 BH2001 1-756-615-61 HOLDER, BATTERY (Note 1)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#50 2-891-494-11 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
Note
A
A
Except
HXR-NX5M/
HXR-NX5C
#53
#53
#53
#49
#53
#53
#53
#53
#53
#53
#49
#50
#50
#53
#53
#53
#53
: BT2001 (LITHIUM STORAGE BATTERY)
Board on the mount position.
(See page 6-63)
Cabinet (L) Section-2
(See page 2-7)
152
151
BT2001
(Note)
BH2001
(Note)
ns
ns
ns
153
154
155
156
157
158
159
160
161
164
165
166
163
162
#50: M2.0 X 3.0
(Red)
2-891-494-11
3.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Caution :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
注意
:
電池の交換は，正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と交換
してください。
使用済み電池は，取扱指示に従って処分してください。
Note 1:
GC-012基板のリチウム蓄電池（BT2001）を交換する場合はバッ
テリホルダ（BH2001）も同時に新品に交換して下さい。
（一度使用したバッテリホルダは再使用できません。）
部品取り付けの際は，先にバッテリホルダを取り付けてからリ
チウム蓄電池を装着して下さい。
Note 1:
Replace the battery holder (BH2001) together when
replacing the lithium storage battery (BT2001) on the
GC-012 board. (The battery holder removed once cannot
be used again.)
When mounting these parts, mount new battery holder
first and attach new lithium storage battery next.
Note 2: Refer to “Assembly-5: On installation of the GS-010
Board, adjust the position of the switch” when install-
ing.
Note 2:
 組立時は“Assembly-5:On installationoftheGS-010
Board,adjustthepositionoftheswitch.”を参照してく
ださい。
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01

Sony HXR-NX5E Specifications

General

Sensor type	CMOS
Total megapixels	1.037 MP
Optical sensor size	1/3 \
Filter size	72 mm
Digital zoom	1.5 x
Optical zoom	20 x
Image stabilizer	Yes
Focal length range	4.1 - 82 mm
Focal length (35mm film equivalent)	36.1 - 722 mm
Flash memory	- GB
Memory slots	1
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	MS PRO Duo, MS Pro-HG Duo, SDHC
Maximum memory card size	32 GB
Focus adjustment	Auto/Manual
Macro focusing range	0.01 - ∞/0.8 - ∞ m
Normal focusing range	0.8 - ∞ m
Light exposure modes	Auto, Manual
Camera shutter speed	1/25 s
Display diagonal	3.2 \
Display resolution (numeric)	921600 pixels
Viewfinder type	-
Viewfinder resolution	122688 pixels
Viewfinder screen size	0.45 \
Product color	Black
Camcorder type	Handheld camcorder
Minimum illumination	1.5 lx
Capture modes	LP
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080 pixels
Video formats supported	H.264, MPEG2, MPEG4
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Battery type	NP-F570, CR2025
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	6.4 h
Battery technology	Lithium
Video recording time	2.8 h
Minimum RAM	512 MB
Minimum processor	Intel Core 2 Duo 2.20GHz
Minimum storage drive space	100 MB
Compatible operating systems	Windows XP/Vista/7
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	342 mm
Width	173 mm
Height	187 mm
Weight	2200 g
