Sony HXR-NX5E User Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-16

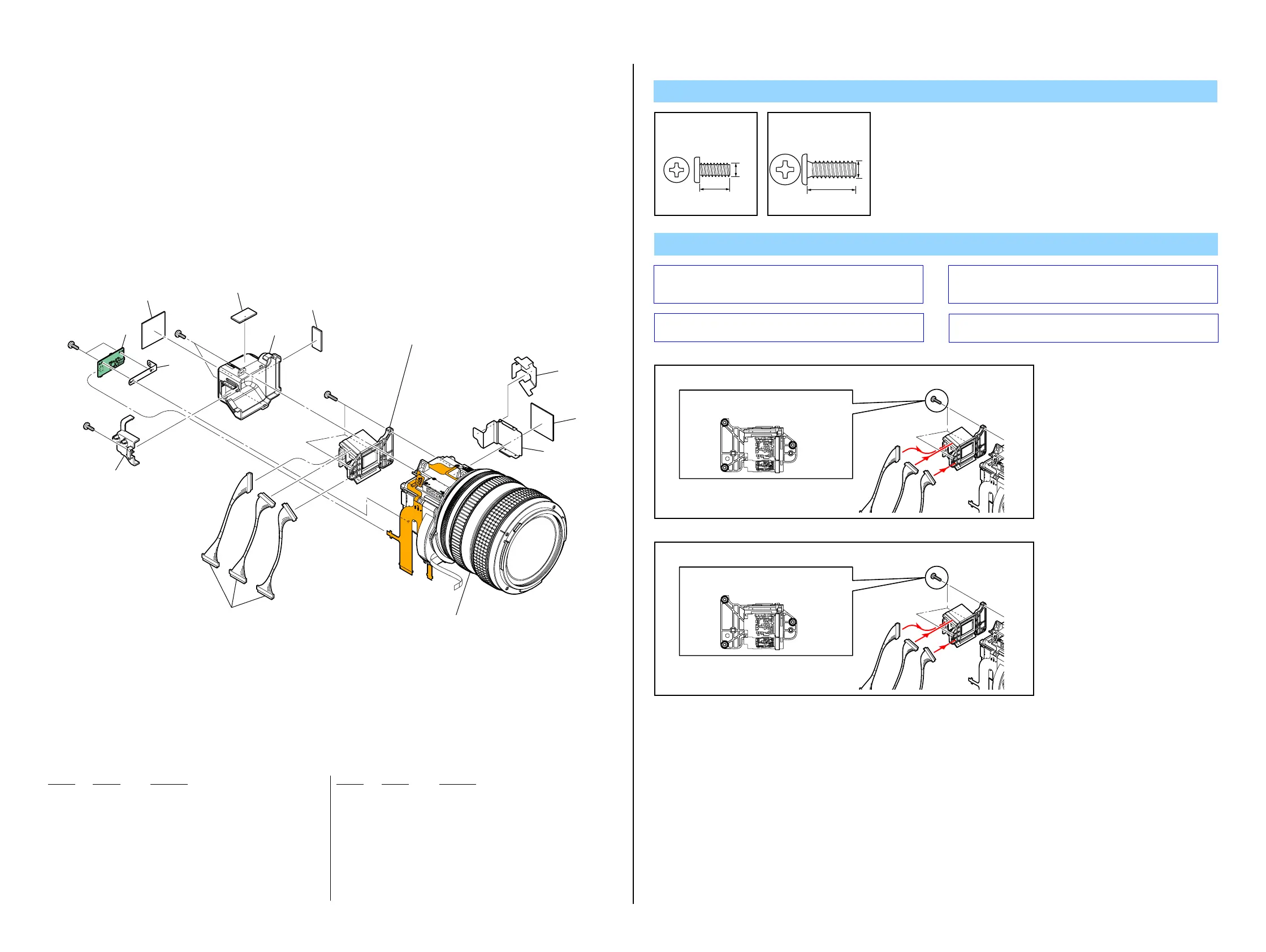

2-1-14. LENS SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
651 1-788-775-31 LENS, VIDEO CF0022
* 652 4-119-361-01 HEAT SINK, LENS
653 4-119-362-01 SHEET (2828), LENS RADIATION
* 654 4-119-360-01 SHEET, CM RADIATION
655 A-1566-526-A DEVICE (SERVICE), PRISM
(including IC3001/IC5001 (CMOS imager) and
CM-097/104 complete boards) (Note 2)
656 1-966-281-11 HARNESS (COAXIAL CABLE) (Note 1)
* 657 4-119-357-01 COVER (A), LIGHT INTERCEPTION
658 4-119-356-01 SHEET (1122), LENS RADIATION
* 659 4-119-358-01 COVER (B), LIGHT INTERCEPTION
* 660 4-119-359-01 PLATE, GY GROUND
661 A-1759-066-A GY-022 BOARD, COMPLETE (SERVICE)
#53 3-080-206-21 SCREW, TAPPING, P2
#155 3-080-204-31 SCREW, TAPPING, P2 (Note 3)
Screw
#53
#53
#53
(including IC3001/IC5001 (CMOS imager)
and CM-097/104 complete boards) (Note 2)
(Note 1)
(Note 3)
#155
661
660
653
659
656
658
658
655
654
657
653
652
651
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
1.7
6.0
#155: M1.7 X 6.0 (Tapping)
(Black)
3-080-204-31
Note
Note1:
 


Note1: Refer to page 2-2 “Note for disconnecting the harness
(coaxial cable)” when changing the harness (coaxial
cable).
Note2:
 

Note2: Be sure to read “Precuations for Replacement of
Imager”on page 6-1 when changing the imager.
1
2
3
Note 3: Prism Device cautions
Tighten screws in the following order.
Be sure not to insert the harnesses forcefully.
(Standard: Insertion; 15N, Pull out; 10N)
1
2
3
Note 3: プリズムデバイス取り外し組立時の注意
下記の順番でねじを締め付けてください。
ハーネスを強く差し込まないでください。
(差し込み時：15N,引き抜き時：10N)

Sony HXR-NX5E Specifications

General

Sensor type	CMOS
Total megapixels	1.037 MP
Optical sensor size	1/3 \
Filter size	72 mm
Digital zoom	1.5 x
Optical zoom	20 x
Image stabilizer	Yes
Focal length range	4.1 - 82 mm
Focal length (35mm film equivalent)	36.1 - 722 mm
Flash memory	- GB
Memory slots	1
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	MS PRO Duo, MS Pro-HG Duo, SDHC
Maximum memory card size	32 GB
Focus adjustment	Auto/Manual
Macro focusing range	0.01 - ∞/0.8 - ∞ m
Normal focusing range	0.8 - ∞ m
Light exposure modes	Auto, Manual
Camera shutter speed	1/25 s
Display diagonal	3.2 \
Display resolution (numeric)	921600 pixels
Viewfinder type	-
Viewfinder resolution	122688 pixels
Viewfinder screen size	0.45 \
Product color	Black
Camcorder type	Handheld camcorder
Minimum illumination	1.5 lx
Capture modes	LP
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080 pixels
Video formats supported	H.264, MPEG2, MPEG4
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Battery type	NP-F570, CR2025
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	6.4 h
Battery technology	Lithium
Video recording time	2.8 h
Minimum RAM	512 MB
Minimum processor	Intel Core 2 Duo 2.20GHz
Minimum storage drive space	100 MB
Compatible operating systems	Windows XP/Vista/7
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	342 mm
Width	173 mm
Height	187 mm
Weight	2200 g
