Sony HXR-NX5E User Manual

HXR-NX5C/NX5E/NX5J/NX5M/NX5N/NX5P/NX5U
2-18
• EXCEPT J MODEL

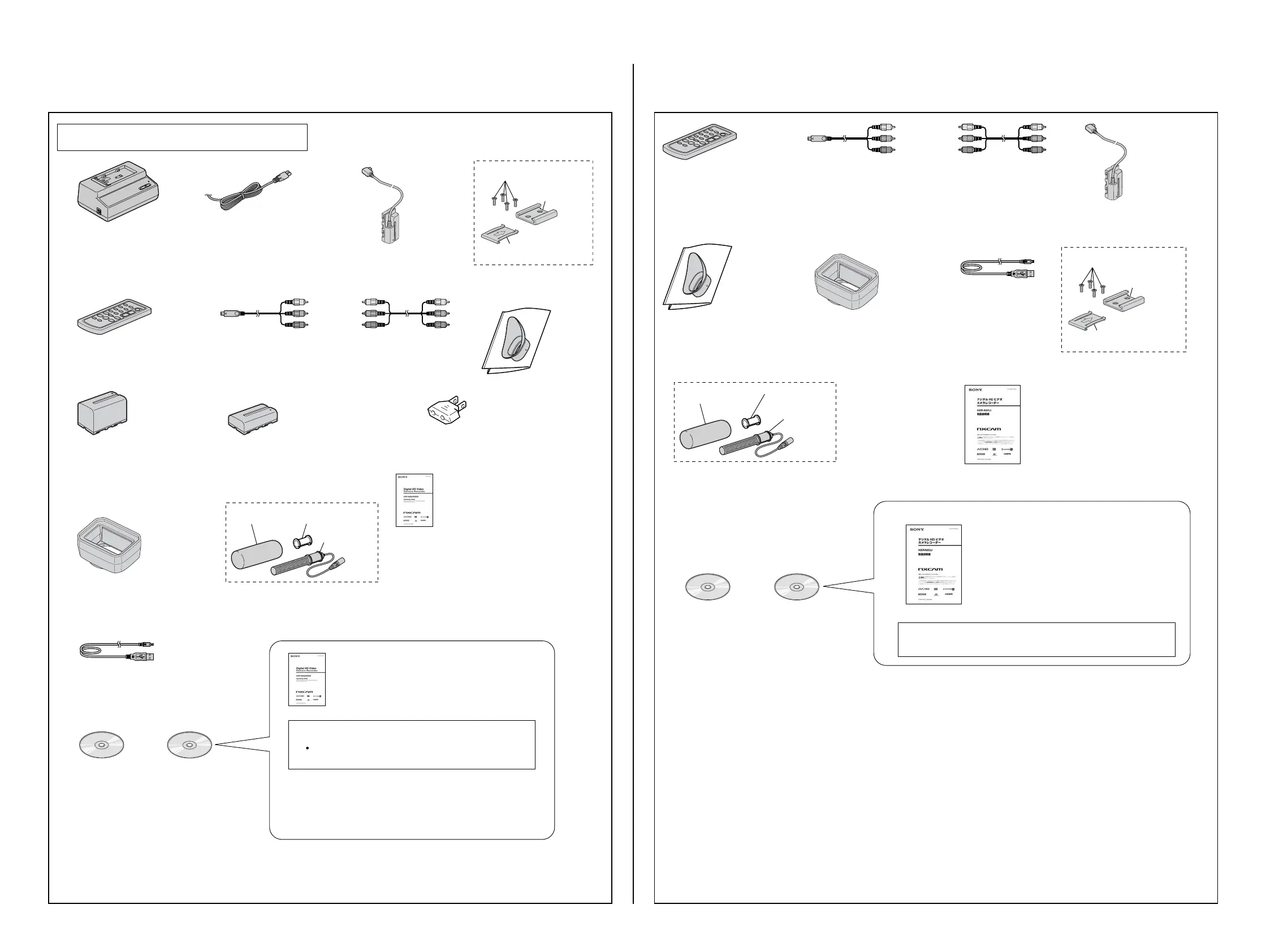

Checking supplied accessories.
The CD-ROM supplied contains all of language version of the Operating
Instructions(PDF) for printing.
The printed matter is not supplied. If required,
please order it with the part number below.
AC Adaptor/Charger
(AC-VL1)
0 1-487-539-11
Wireless Remote Commander
(RMT-845)
1-487-540-11
Component video cable
1-829-414-61
A/V connecting cable
1-828-145-21
Rechargeable battery pack
(NP-F770) (NX5U)
(Note)
Rechargeable battery pack
(NP-F570)
(EXCEPT NX5U)
(Note)
Lens hood with lens cover
(CF002)
X-2320-850-1
USB cable
1-829-868-31
Large eyecup
X-2342-702-1
Note : This item is supplied with the unit as an accessory, but is
not prepared as a service part.
Power cord (mains lead)
0 1-834-484-31 (NX5U)
0 1-832-121-31 (NX5C)
0 1-834-482-21 (NX5N/NX5E/NX5M/NX5P)
Wind Screen, Microphone
(ECM-XM1)
1-542-749-11
Wind Screen
3-048-481-01
Microphone
(not supplied)
Microphone Spacer
* 3-179-882-01
CD-ROM “Manuals for
Digital HD Video
Camera Recorder”
4-162-320-01
Connecting Cord (DK-415)
1-782-361-15 (EXCEPT NX5U)
1-782-361-21 (NX5U)
Accessory Shoe Kit
X-2188-877-2
Accessory Shoe
3-069-286-03
Screws
2-630-005-31
Accessory Shoe Plate
(not supplied)
4-157-877-11 (ENGLISH) (NX5U/NX5N)
4-157-878-11 (ENGLISH) (NX5E/NX5P/NX5M)
4-157-878-21 (SIMPLIFIED CHINESE) (NX5C)
Operating Guide
Operating Guide (PDF)
4-157-877-01 (JAPANESE)
4-157-877-11 (ENGLISH)
4-157-877-21 (FRENCH)
Conversion (2P) Adaptor
0 1-569-008-12 (NX5N)
4-157-878-11 (ENGLISH)
4-157-878-21 (SIMPLIFIED CHINESE)
4-157-878-31 (FRENCH)
4-157-878-41 (SPANISH)
4-157-878-51 (ITALIAN)
4-157-878-61 (GERMAN)
*
*
*
*
*
CD-ROM
“Content Management
Utility”
4-174-940-01
• J MODEL

(RMT-845)
1-487-540-11
USB
1-829-868-31
CD-ROM
“Content Management
Utility”
4-174-940-01
A/V
1-828-145-21

(CF002)
X-2320-850-1
CD-ROM
Manuals for Digital HD
Video Camera Recorder
4-162-320-01

1-829-414-61
(PDF)CD-ROM
CD-ROM(PDF)

 (PDF)

4-157-877-01 ()

X-2342-702-1

(ECM-XM1)
1-542-749-11

3-048-481-01

()

* 3-179-882-01

(DK-415)
1-782-361-15

X-2188-877-2

3-069-286-03

2-630-005-31

()
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2010.01

Sony HXR-NX5E Specifications

General

Sensor type	CMOS
Total megapixels	1.037 MP
Optical sensor size	1/3 \
Filter size	72 mm
Digital zoom	1.5 x
Optical zoom	20 x
Image stabilizer	Yes
Focal length range	4.1 - 82 mm
Focal length (35mm film equivalent)	36.1 - 722 mm
Flash memory	- GB
Memory slots	1
Camcorder media type	Memory card
Disc types supported	No
Compatible memory cards	MS PRO Duo, MS Pro-HG Duo, SDHC
Maximum memory card size	32 GB
Focus adjustment	Auto/Manual
Macro focusing range	0.01 - ∞/0.8 - ∞ m
Normal focusing range	0.8 - ∞ m
Light exposure modes	Auto, Manual
Camera shutter speed	1/25 s
Display diagonal	3.2 \
Display resolution (numeric)	921600 pixels
Viewfinder type	-
Viewfinder resolution	122688 pixels
Viewfinder screen size	0.45 \
Product color	Black
Camcorder type	Handheld camcorder
Minimum illumination	1.5 lx
Capture modes	LP
Video resolutions	720 x 576, 1280 x 720, 1440 x 1080 pixels
Video formats supported	H.264, MPEG2, MPEG4
Maximum video resolution	1920 x 1080 pixels
Maximum image resolution	- pixels
Audio system	Dolby Digital 2.0
PCM digital audio	16-bit/48 kHz
USB connector type	Mini-USB B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Battery type	NP-F570, CR2025
Battery voltage	7.2 V
Battery capacity	- mAh
Battery life (max)	6.4 h
Battery technology	Lithium
Video recording time	2.8 h
Minimum RAM	512 MB
Minimum processor	Intel Core 2 Duo 2.20GHz
Minimum storage drive space	100 MB
Compatible operating systems	Windows XP/Vista/7
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Depth	342 mm
Width	173 mm
Height	187 mm
Weight	2200 g
