Ports and jacks
Note
Do not touch the connectors with bare hands.
Related Topic
Attaching the supplied XLR handle unit (only with ILME-FX30)
Recording audio using the XLR adaptor of the supplied handle (only with the ILME-FX30)
5-043-036-11(1)
Copyright 2022 Sony Corporation
LOW CUT (INPUT2) switch
Use this switch to minimize unwanted noise by attenuating low-frequency components of the input audio from the
INPUT2 jack.
11.
AUDIO LEVEL (INPUT3) dial
Adjust the recording volume level of the input audio from the INPUT3 jack.
12.
INPUT SELECT switch
Select the audio input for recording audio to the channels on the attached camera.
13.
HANDLE AUDIO switch
Enable audio input from the XLR adaptor.
14.

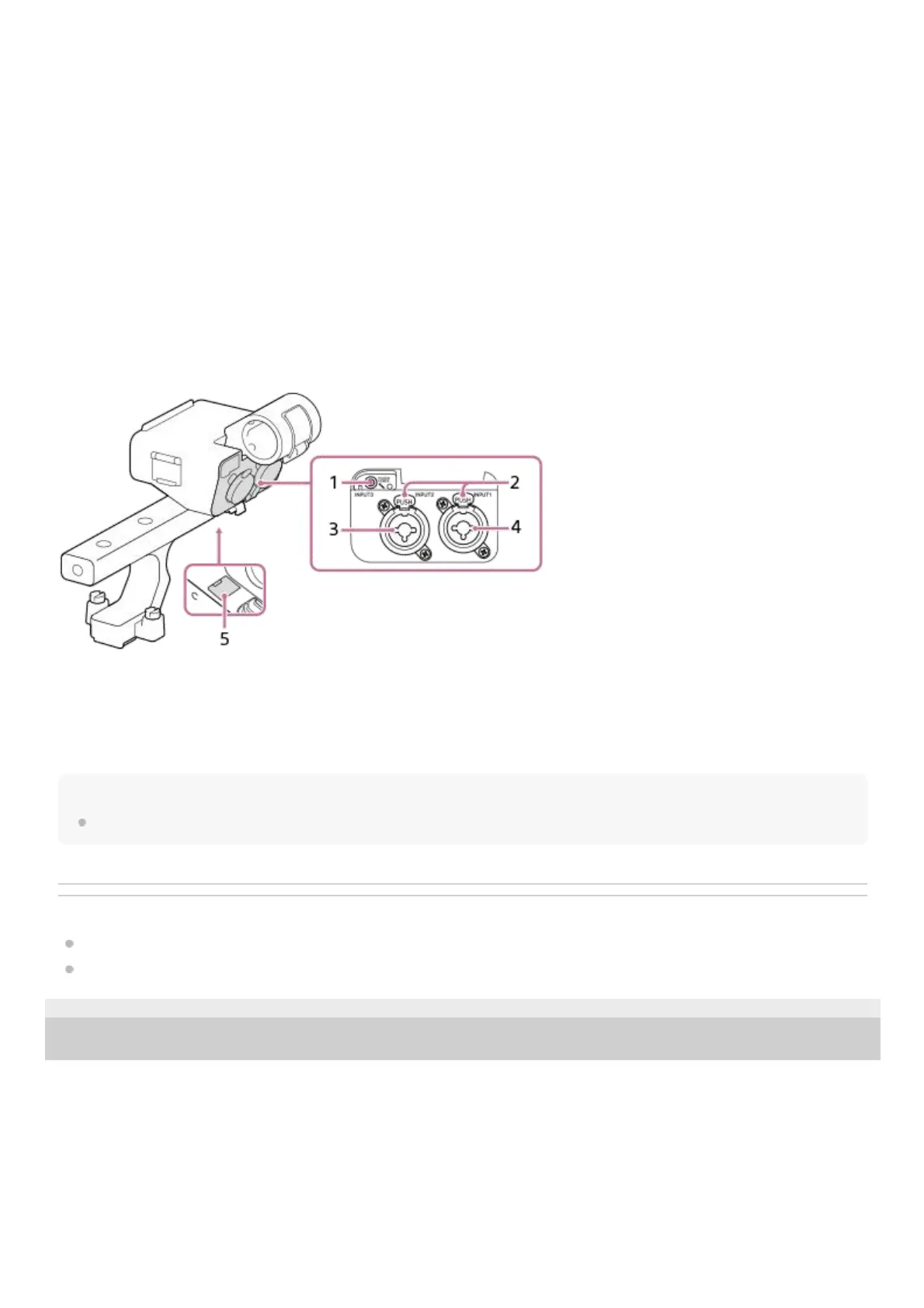

INPUT3 jack (stereo mini-jack, plug-in-power compatible)1.
Release lever2.
INPUT2 jack (3-pin XLR/TRS, female type, phantom-power compatible)3.
INPUT1 jack (3-pin XLR/TRS, female type, phantom-power compatible)4.
Micro USB port5.
