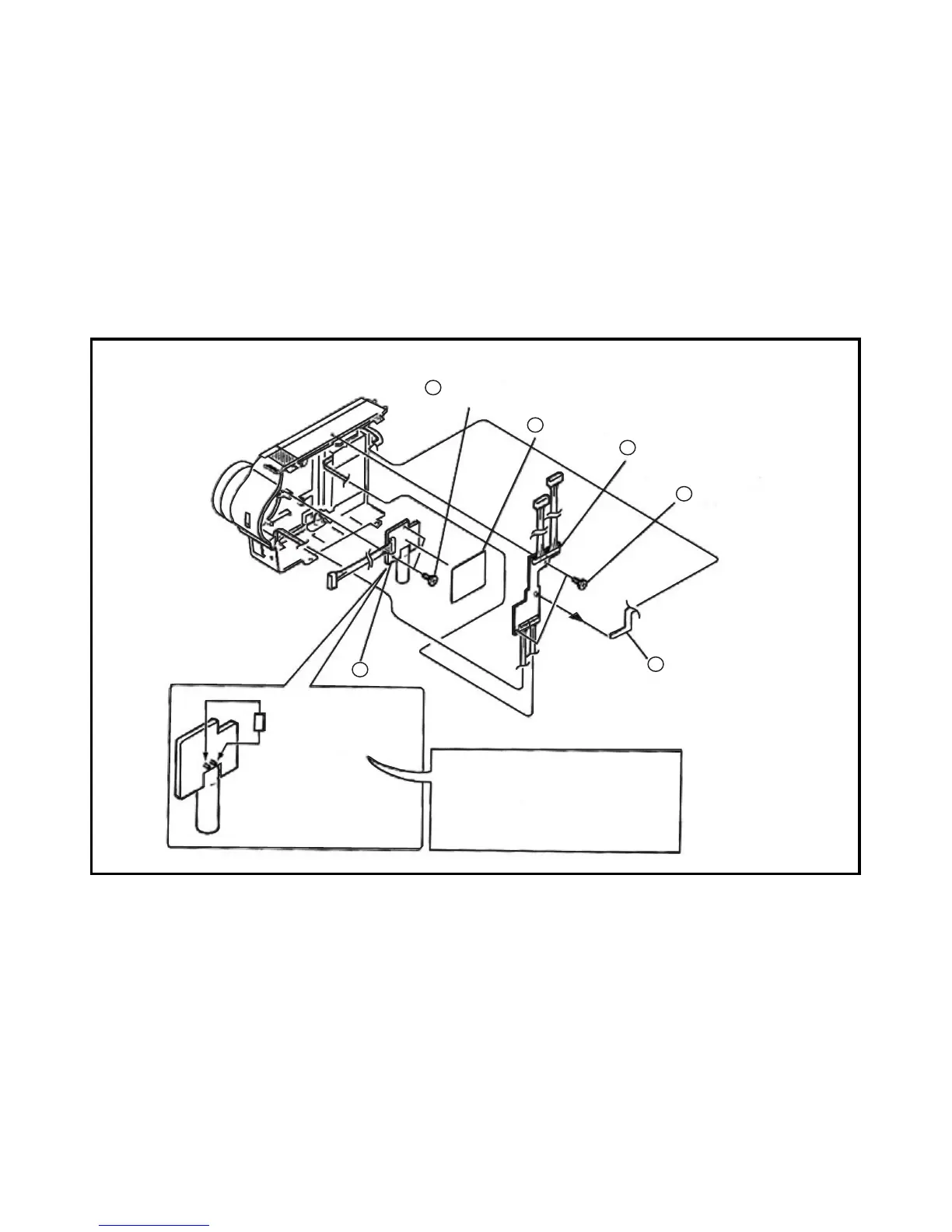

FLASH UNIT ACCESS
2/7/01
7DSC1
Two tapping
screws (M2 x 5)
ST insulating sheet
FU-140 board (MVC-FD90
FU-146 board (MVC-FD85)
Two tapping
screws (M2 x 5)
Control switch block (6p)
When handling the flash unit, be sure to
discharge the charging capacitor before
handling it.
For discharge, short the positive (+) and
negative (-) terminals of the charging
capacitor for about ten seconds
Short jig resistor
1k, 1W
(Part No. 1-215-869-11)
Flash unit
2
1
6
5
4
3
