SA-Z9R

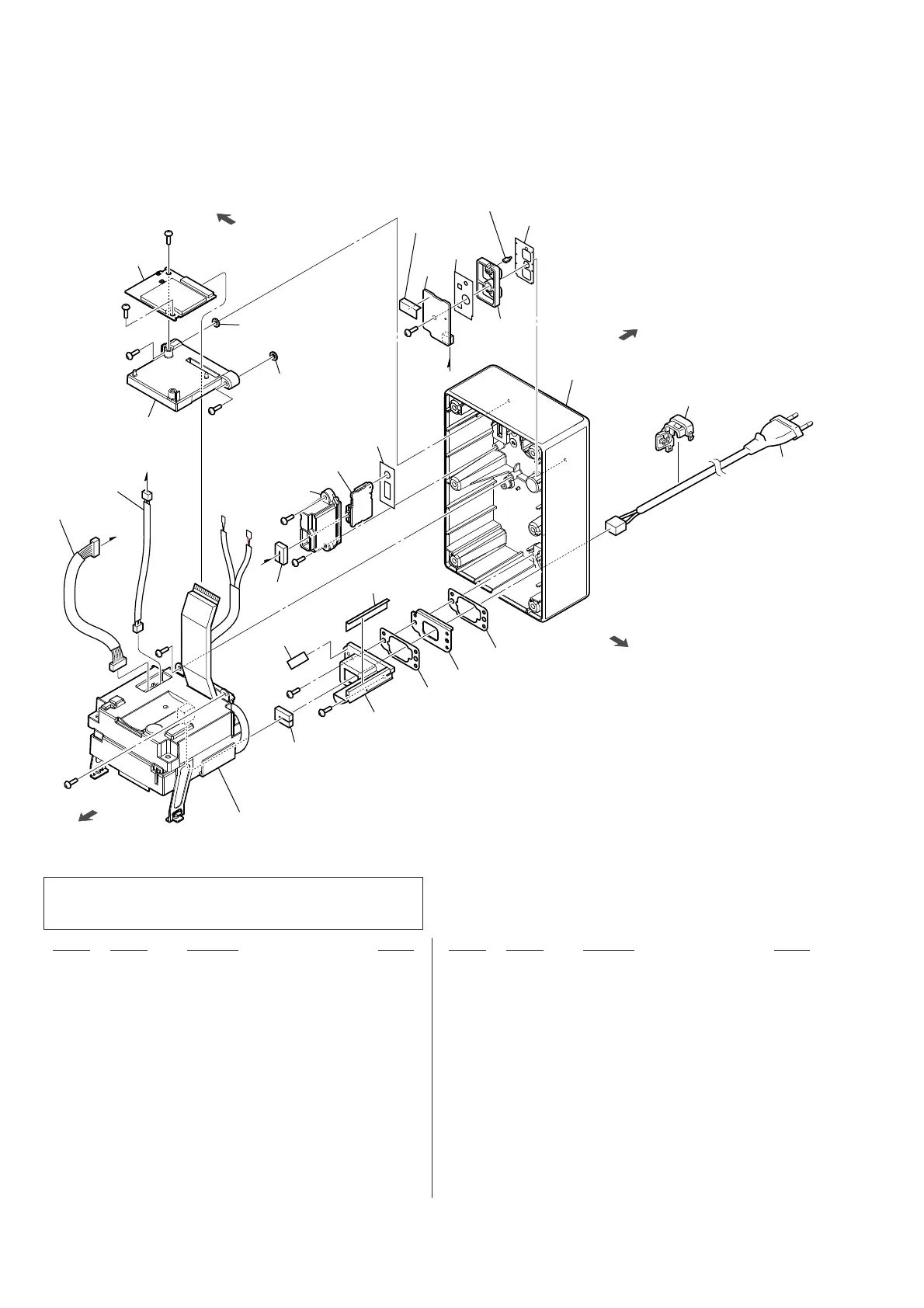

5-2. CABINET SECTION

51 A-2186-996-A SK2 REAR KEY BOARD, COMPLETE

52 4-724-542-01 PACKING (KEY B)

53 4-724-535-01 KEY (1, LINK button)

0 54 4-966-267-12 BUSHING (FBS001), CORD

0 AC1 1-834-965-42 CORD, POWER-SUPPLY (US, CND)

0 AC1 1-834-966-72 CORD, POWER-SUPPLY (AEP)

0 AC1 1-834-967-21 CORD, POWER (AUS)

0 AC1 1-839-999-12 POWER-SUPPLY CORD (UK)

RF1 A-2207-353-A RF MODULATOR (SV) (For L-ch rear speaker)

(LZ9R: US, CND) (See Note)

RF1 A-2207-355-A RF MODULATOR (SV) (For L-ch rear speaker)

(LZ9R: AEP) (See Note)

RF1 A-2207-356-A RF MODULATOR (SV) (For L-ch rear speaker)

(LZ9R: UK) (See Note)

RF1 A-2207-361-A RF MODULATOR (SV) (For L-ch rear speaker)

(LZ9R: AUS) (See Note)

RF1 A-2207-365-A RF MODULATOR (SV) (For R-ch rear speaker)

(RZ9R: US, CND) (See Note)

RF1 A-2207-367-A RF MODULATOR (SV) (For R-ch rear speaker)

(RZ9R: AEP) (See Note)

RF1 A-2207-368-A RF MODULATOR (SV) (For R-ch rear speaker)

(RZ9R: UK) (See Note)

RF1 A-2207-373-A RF MODULATOR (SV) (For R-ch rear speaker)

(RZ9R: AUS) (See Note)

#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

not supplied

(REAR JACK board)

AC1

SK2 REAR MAIN board section

rear side

front side

right side

left side

RF1

Note: When the RF modulator (Ref. No. RF1) is replaced, be sure to

refer to “WIRELESS CONNECTION (LINK) WORK OF BAR

SPEAKER, SUBWOOFER AND REAR SPEAKERS” on page 4.
