Sony SA-LZ9R User Manual

SA-Z9R
8

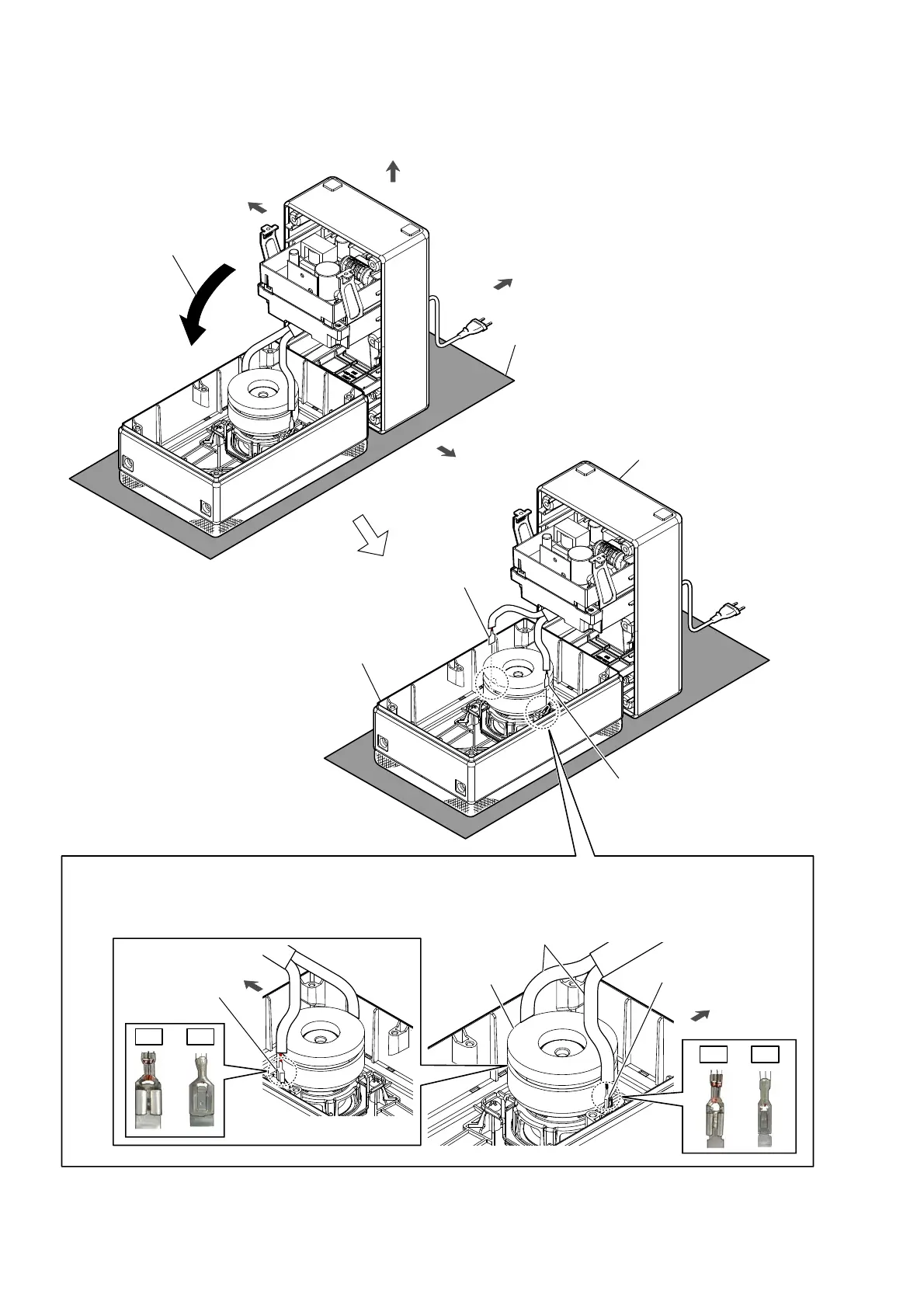

2-3. BAFFLE ASSY BLOCK-2
3 baffle assy block
2 terminal (narrow)
[black]
2 terminal (wide)
[red]
cabinet block
rear side
right side
left side
1 Open the baffle assy block
in the direction of the arrow.
soft cloth, etc.
Note:
When connecting the terminals of the speaker connection
cable to the loudspeaker, be careful of the direction of the
terminals.
,QVWDOODWLRQGLUHFWLRQIRUWKHWHUPLQDOV
top side
top side
speaker connection cable
loudspeaker
terminal (wide)
[red]
OK NG
OK NG
terminal (narrow)
[black]
bottom side
