Note
When RM-IP10 is used, make a connecting cable
using the camera and the RS-422 terminal board
connectors supplied with the remote controller.
When you make the connecting cable, refer to
the
pin array of the VISCA RS-422 terminal (page
52) and the VISCA RS-422 connection diagram
(page 52).
Connecting multiple cameras to a
single remote controller (not
supplied)
Select either VISCA over IP or VISCA RS-422 with
the remote controller. For details, see the
operating instructions of the remote controller.
Using the VISCA RS-422 terminal
Up to 7 cameras can be connected via the VISCA
R
S-422 terminal. The VISCA RS-422 allows
connections of up to 1.2 km in length.
* Use straight network cables.
Note
When RM-IP10 is used, make a connecting cable
using the camera and the RS-422 terminal board
connectors supplied with the remote controller.
When you make the connecting cable, refer to
t
he pin array of the VISCA RS-422 terminal (page
52) and the VISCA RS-422 connection diagram
(page 52).

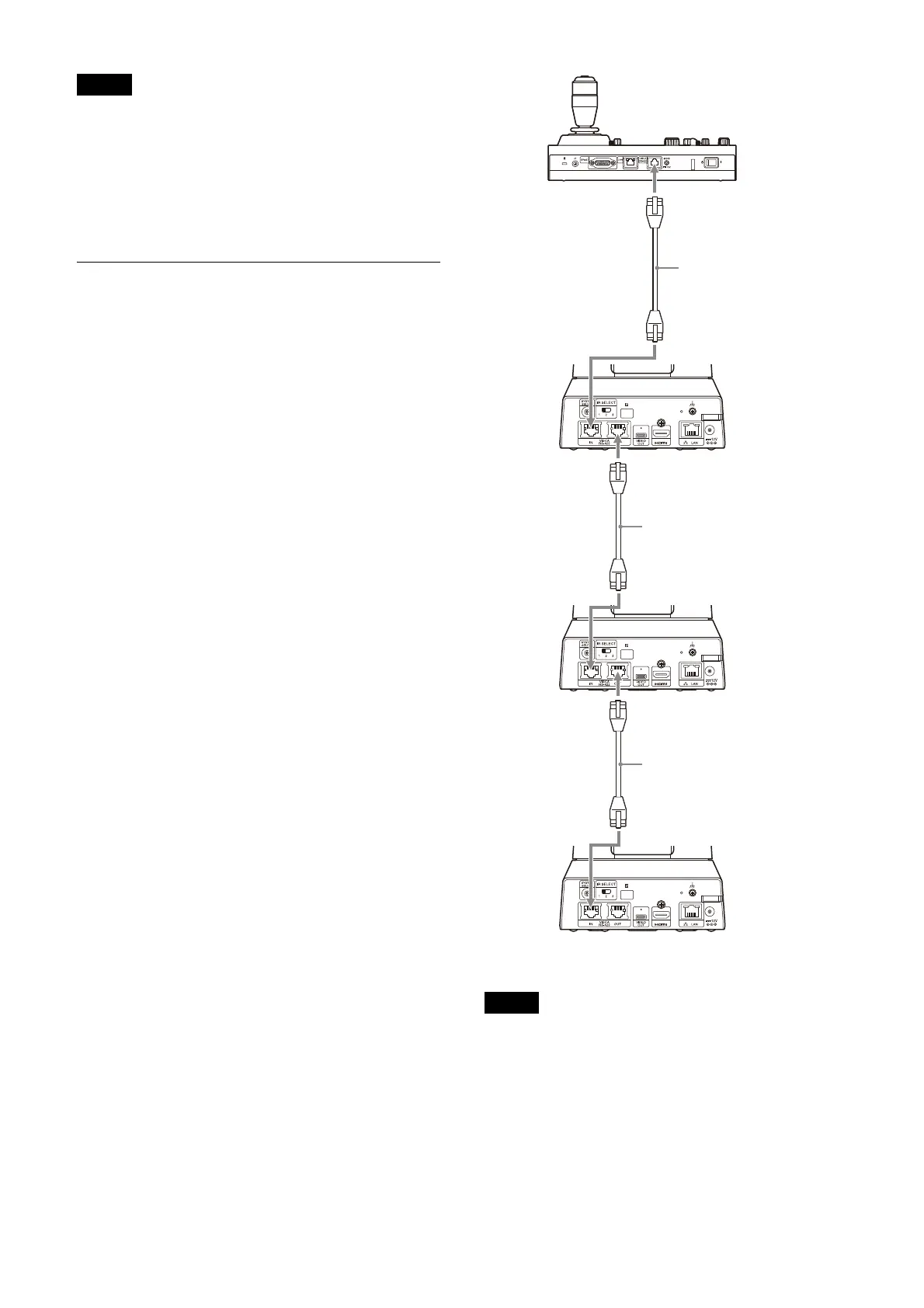

Network cable
(commercially available)
Network cable
(commercially available)
Network cable
(commercially available)
To Next Page
