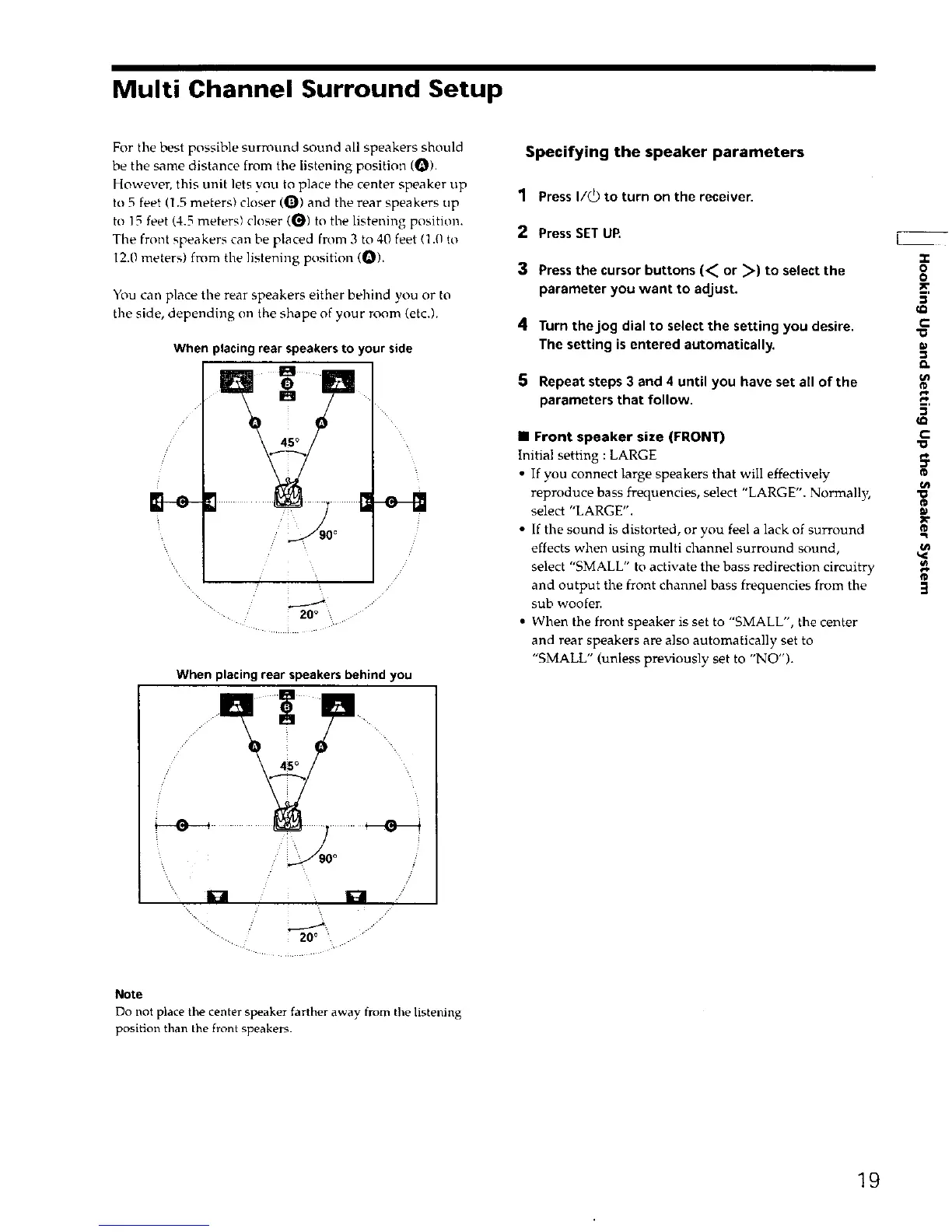

Multi Channel Surround Setup
For the best possible surround sound all speakers should
be the same distance from the listening position (O).
However, this unit lets you to place the center speaker up
to 5 feet (1.5 meters} closer (O) and the rear speakers up
to 15 feet (4.5 meters) closer (_) to the listening position.
The front speakers can be placed from 3 to 40 feet (1.0 to
12.0 meters) from the listening position (_).
You can place the rear speakers either behind you or to
the side, depending on the shape of your room (etc.).
When placingrear speakersto your side
g
When placing rear speakers behind you
u Z U
45°
Specifying the speaker parameters
1 Press I/_ to turn on the receiver.
2 PressSETUR
3 Pressthe cursor buttons (< or >) to select the
parameter you want to adjust.
4 Turn thejog dial to select the setting you desire.
The setting is entered automatically,
5 Repeat steps 3 and 4 until you have set all of the
parameters that follow.
• Front speaker size (FRONT)
Initial setting : LARGE
• If you connect large speakers that will effectively
reproduce bass frequencies, select "LARGE". Normally
select "LARGE".
• If the sound is distorted, or you feel a lack of surround
effects when using multi channel surround sound,
select "SMALL" to activate the bass redirection circuitry
and output the front channel bass frequencies from the
sub woofer.
• When the front speaker is set to "SMALL", the center
and rear speakers are also automatically set to
"SMALL" (unless previously set to "NO").
..r
0
o
c
"o
€
__,
C
:T
fD
R
R
3
20°
Note
Do not place the center speaker farther away from t le ste _ ng
position than the front speakers.
19
