Sony STR-DE845 Operating Instructions

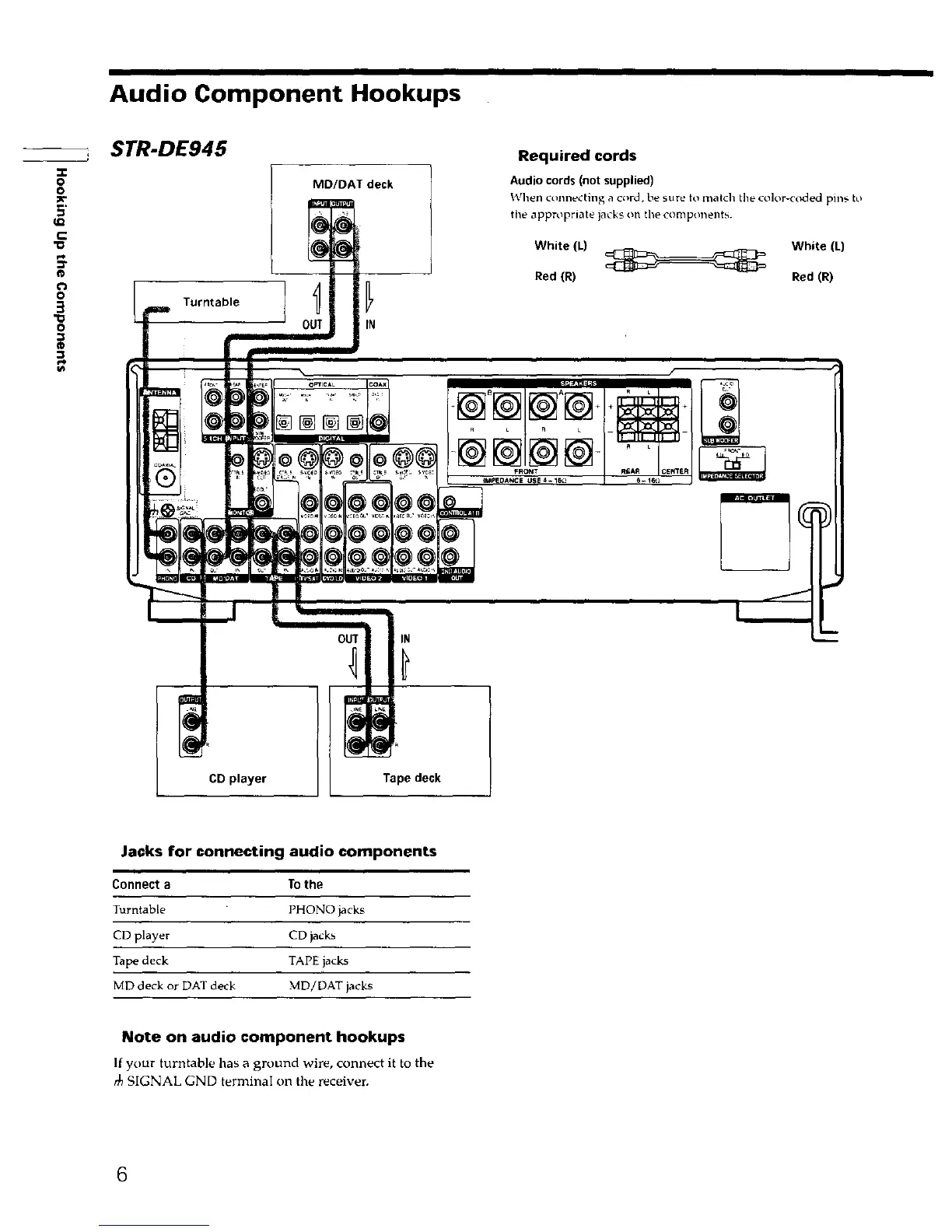

Audio Component Hookups
=r
o
o
:1€-
5'
112
€
"0
_r
@
€
3
o
®
STR-DE945
MD/DAT deck
Turntable ] _J
OUT IN
Required cords
Audio cords (not supplied)
When connecting a c_rd, be sure to match the color<(,aded pills to
tile appropriate jacks on the components.
White (L) White (L)
Red (R) Red (R)
OUT IN
CD player Tape deck
Ja0ks for connecting audio components
Connect a To the
Turntable PHONO jacks
CD player CD jacks
Tape deck TAPE jacks
MD deck or DAT deck MD/DAT jacks
Note on audio component hookups
If your turntable has a ground wire, connect it to the
SIGNAL GND terminaI on the receiver.
6

Sony STR-DE845 Specifications

General

Channels	5.1
Impedance	8 ohms
Signal-to-Noise Ratio	96 dB (line)
Power Output	100 W per channel (8 ohms, 20 Hz - 20 kHz, 0.09% THD)
Total Harmonic Distortion	0.09%
Outputs	2 audio outputs
Video Connections	Composite video
Tuning Range	FM/AM
Inputs	2 optical, 1 coaxial
