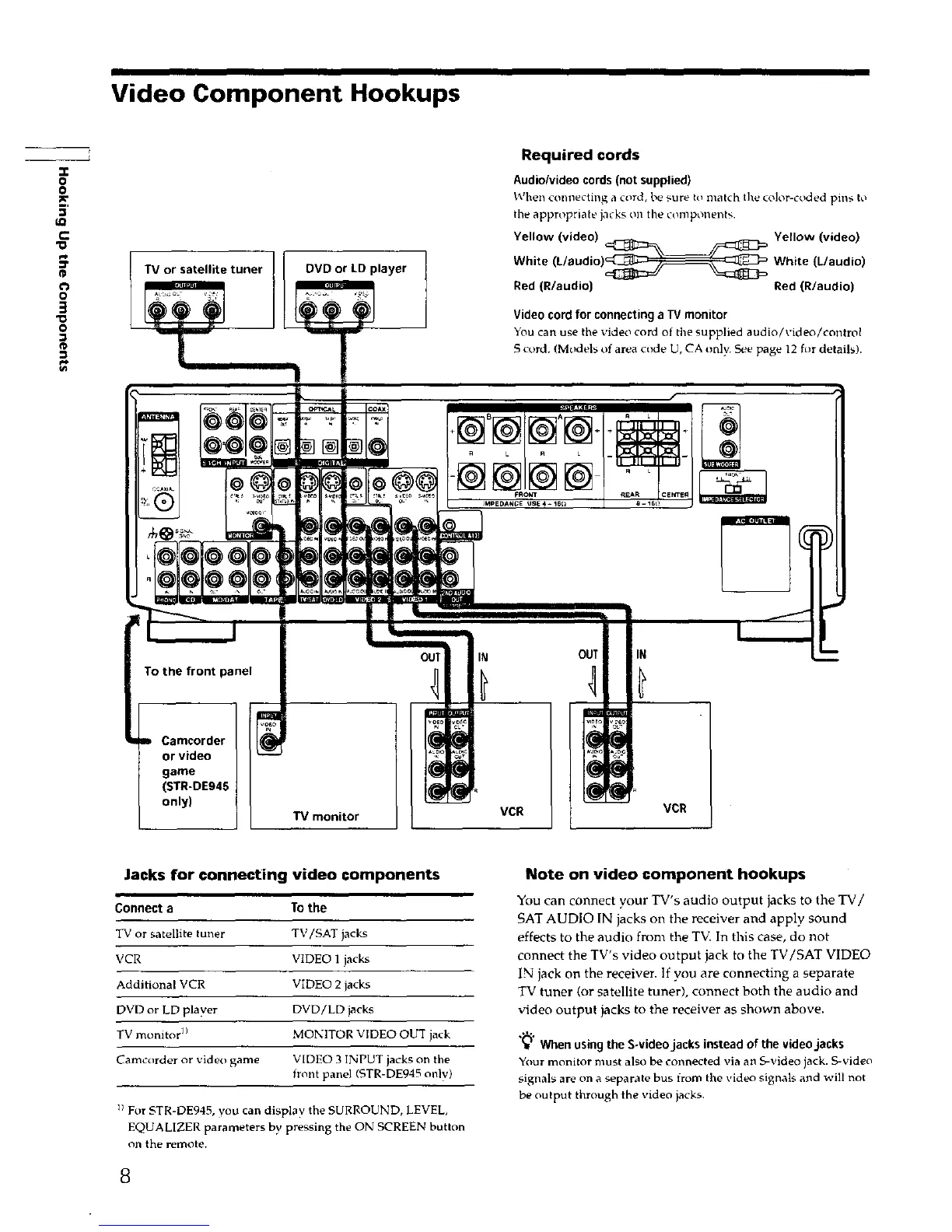

Video Component Hookups
X
0
0
_0
f_
0
3
"O
0
TV or satellite tuner DVD or LD player
Required cords
Audio/video cords (net supplied)
When connecting a cord, be sure to match the color-coded pins to
tile appropriate jacks on tile components.
Yellow (video) _ Yellow (video)
White (L/audio)_ White {L/audio)
Red (R/audio) Red (R/audio)
Video cord for connecting a TV monitor
You can use the video cord of tile supplied audio/video/control
S cord. (Models of area ct_de U CA only. See page 12 for details).
To the front panel
m Camcorder
or video
game
(STR-DE945
only)
TV monitor
@
IN
OUT
VCR
IN
Jacks for connecting video components
Connect a 1"othe
TV or satellite tuner TV/SAT jacks
VCR VIDEO 1 jacks
Additional VCR VIDEO 2 jacks
DVD or LD player DVD/LD jacks
TV monitor 11 MONITOR VIDEO OUT jack
Camcorder or video game VIDEO 3 INPUT jacks on the
front panel (STR-DE945 onlv)
1) For STR-DE945, vou can display the SURROUND, LEVEL
EQUALIZER parameters by pressing the ON SCREEN button
on the remote.
Note on video component hookups
You can connect your TV's audio output jacks to the TV/
SAT AUDIO IN jacks on the receiver and apply sound
effects to the audio from the TV. In this case, do not
connect the TV's video output jack to the TV/SAT VIDEO
IN jack on the receiver. If you are connecting a separate
TV tuner (or satellite tuner), connect both the audio and
video output jacks to the receiver as shown above.
"_i" When using the S.videojacks instead of the video jacks
Your monitor must also be cor, ne,cted via an S-video jack. S-video
signals are on a separate bus from the video signals and will not
be output through the video jacks.
8
