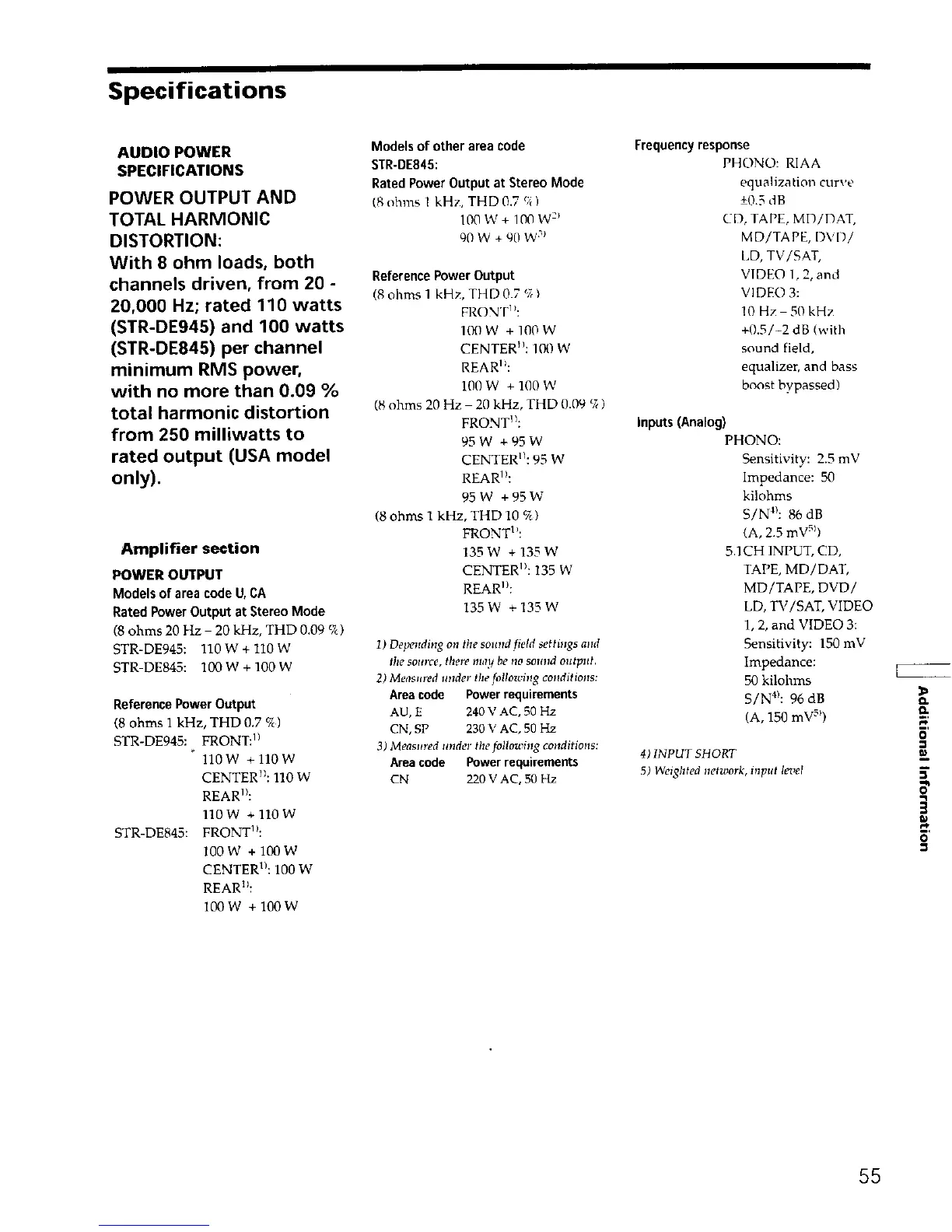

Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND
TOTAL HARMONIC
DISTORTION:
With 8 ohm loads, both
channels driven, from 20 -
20,000 Hz; rated 110 watts
(STR-DE945) and 100 watts
(STR-DE845) per channel
minimum RMS power,
with no more than 0.09 %
total harmonic distortion
from 250 milliwatts to
rated output (USA model
only).
Amplifier section
POWER OUTPUT
Models of area code U,CA
Rated PowerOutput at StereoMode
(8 ohms 20 Hz - 20 kHz, THD 0.09 c_)
STR-DE945: 110 W + 110 W
STR-DE845: 100 W + 100 W
ReferencePower Output
(8 ohms 1 kHz, THD 0.7 _7_)
STR-DE945: FRONT: n
110W +110W
CENTER_I: 110 W
REARII:
110W ÷ll0W
STR-DE845: FRONTII:
100W + 100W
CENTERn: 100 W
REARU:
100W +100W
Models of other area code
STR-DE845:
Rated PowerOutput at Stereo Mode
18 ohms 1 kHz, THD 0.7 _)
100W+ 100W _}
90 W + 9() W 3_
ReferencePowerOutput
(8 ohms 1 kHz, THD 0.7,7, )
FRON'FI_:
IOOW +lO0W
CENTERn: 100 W
REARn:
100 W + 100 W
(8 ohms 20 Hz - 20 kHz, THD 0.09 c7,)
FRONTI_:
95W +95W
CENTERn: 95 W
REARn:
95W +95W
(8 ohms I kHz, THD 10 c7c)
FRONTb:
135 W + 135 W
CENTERb: 135 W
REARn:
135 W + 135 W
1) Depending on the soulld field settings and
tile source, there may be no sound output.
2) Measured under the following conditions:
Area code Power requirements
AU, E 240 V AC, 50 Hz
CN, SP 230 V AC, 50 Hz
3) Measured under the following conditions:
Area code Power requirements
CN 220 V AC, 50 Hz
Frequency response
PHONO: RIAA
equalization curve
+0.5 dB
CD, TAPE, MD/DAT,
MD/TAPE, DVD/
LD, TV/SAT,
VIDEO 1,2, and
VIDEO 3:
10 Hz- 50 kHz
+0.5/-2 dB (with
sound field,
equalizer, and bass
boost bypassed)
Inputs (Analog)
PHONO:
Sensitivity: 2.5 mV
impedance: 50
kilohms
S/N41:86 dB
(A, 2.5 mV_b
5.1CH INPUT, CD,
TAPE, MD/DAT,
MD/TAPE, DVD/
LD, TV/SAT, VIDEO
1, 2, and VIDEO 3:
Sensitivity: 150 mV
Impedance:
50 kilohms
S/N41:96 dB
(A, 150 mV s_)
4) INPUT SHORT
5) Weighted network, input levd
0.
