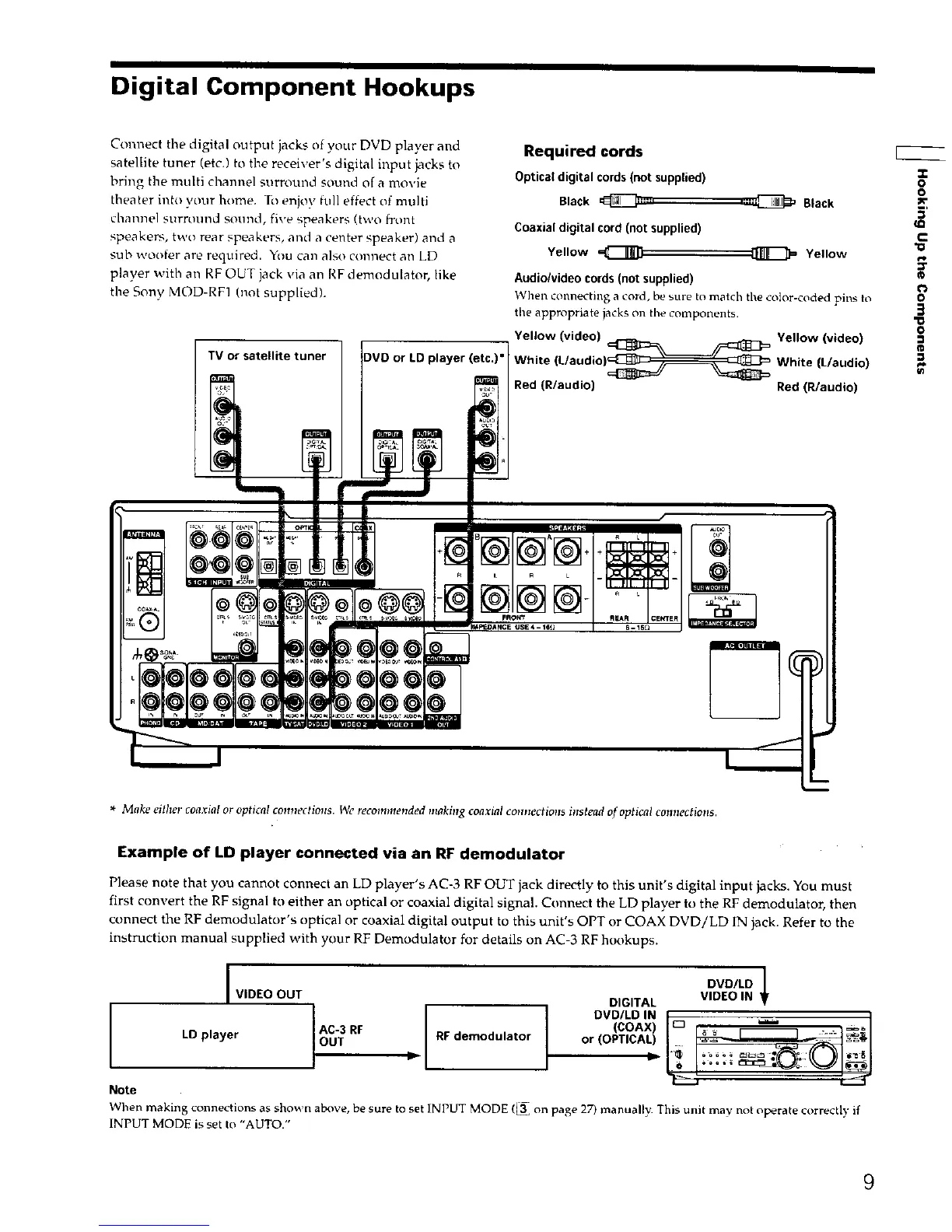

Digital Component Hookups
Connect tile digital output jacks of your DVD player and
satellite tuner (etc.) to the recei\ er's digital input jacks to
bring the multi channel surround sound of a movie
theater into your home. To enjoy full effect of multi
channel snrround sound, five speakers (two front
speakers, two rear speakers, and a center speaker) and a
sub wouter are required. You can also connect an LD
player with an RF OUT jack via an RF demodulator, like
the Sony MOD-RF] (not supplied).
Required cords
Optical digital cords (not supplied)
Black _=,
Coaxial digital cord (not supplied)
Yellow
Audio/video cords (not supplied)
"When connecting a cord, be sure to match the color-coded pins to
the appropriate iacks on the components.
•_ Black
Yellow
TV or satellite tuner
Yellow (video) _ _ Yellow (video)
DVD or LD player (etc.)" White (L/audio)_ White (L/audio)
Red (R/audio) Red (R/audio)
-p
o
o
_r
5'
I1=
r-
o
3
o
¢D
* Make either coarial or optical connections. We recolnmended making coaxial comlections instead of optical connections.
Example of LD player connected via an RF demodulator
Please note that you cannot connect an LD player's AC*3 RF OUT jack directly to this unit's digital input jacks. You must
first convert the RF signal to either an optical or coaxial digital signal. Connect the LD player to the RF demodulator, then
connect the RF demodulator's optical or coaxial digital output to this unit's OPT or COAX DVD/LD IN jack. Refer to the
instruction manual supplied with your RF Demodulator for details on AC-3 RF hookups.
I DVD/LD
VIDEO OUT DIGITAL VIDEO IN
LD player AC-3 RF RF demodulator or (OPTICAL)
Note
When making connections as shown above be sure to set INPUT MODE [_ on page 27 manua v. Th sun may no opera e c( rrec y f
INPUT MODE is set to "AUTO."
9
